Verification Tests

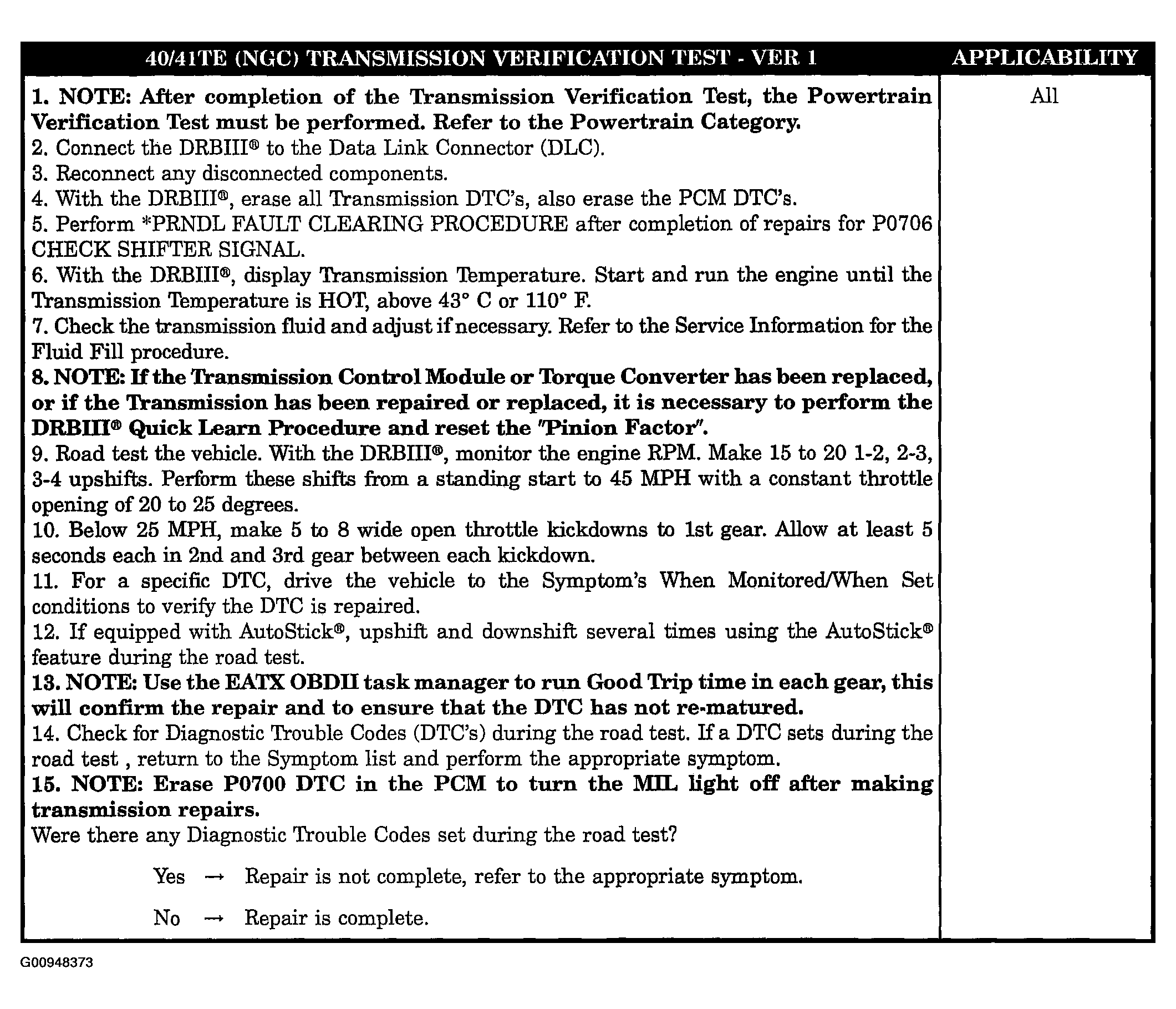

Fig 1: Transmission Verification Test - VER 1 (40/41TE - NGC)
G00948373Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Body Verification Test - VER 2 (NGC)
G00948374Courtesy of DAIMLERCHRYSLER CORP.

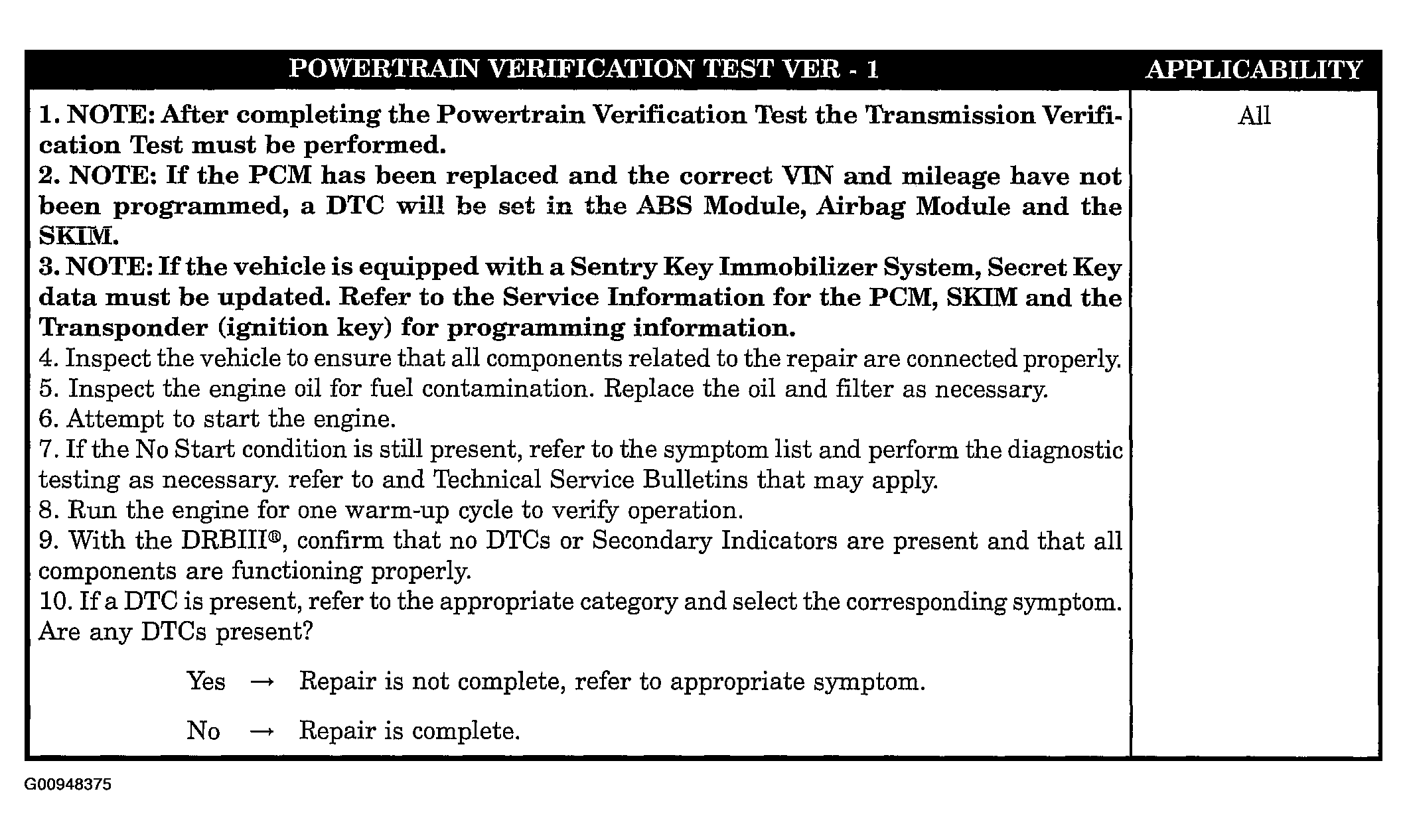

Fig 3: Powertrain Verification Test - VER 1
G00948375Courtesy of DAIMLERCHRYSLER CORP.

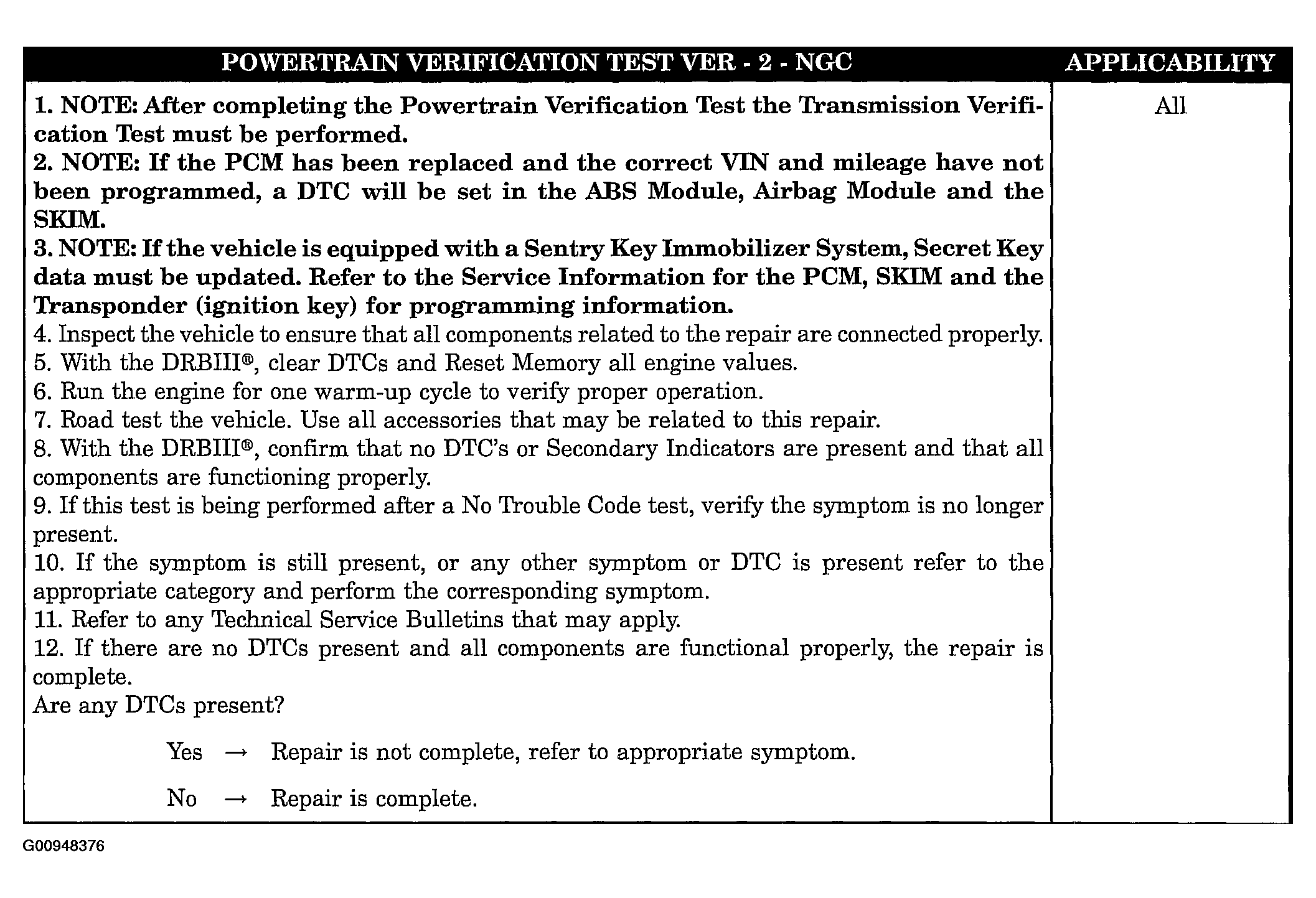

Fig 4: Powertrain Verification Test - VER 2 (NGC)
G00948376Courtesy of DAIMLERCHRYSLER CORP.

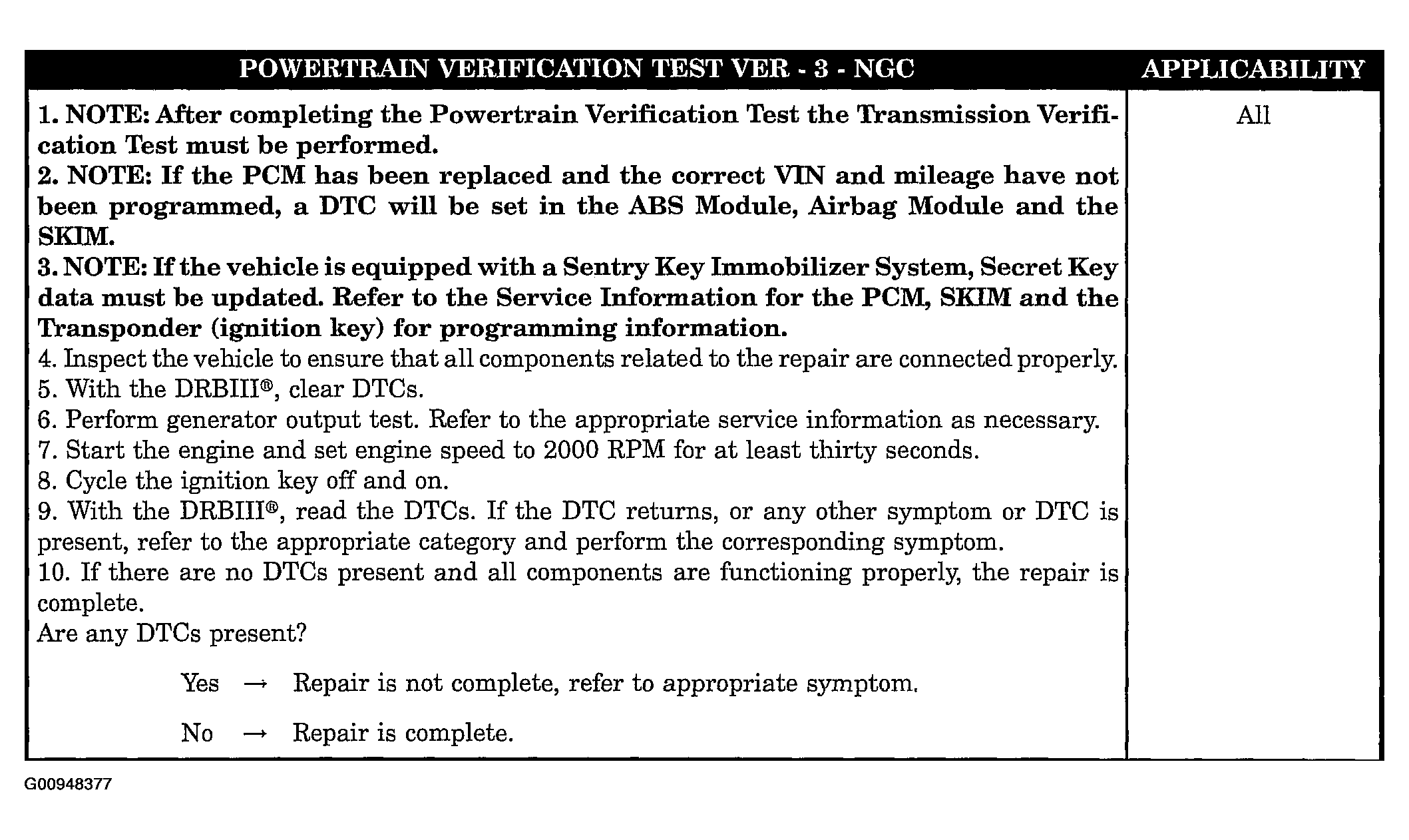

Fig 5: Powertrain Verification Test - VER 3 (NGC)
G00948377Courtesy of DAIMLERCHRYSLER CORP.

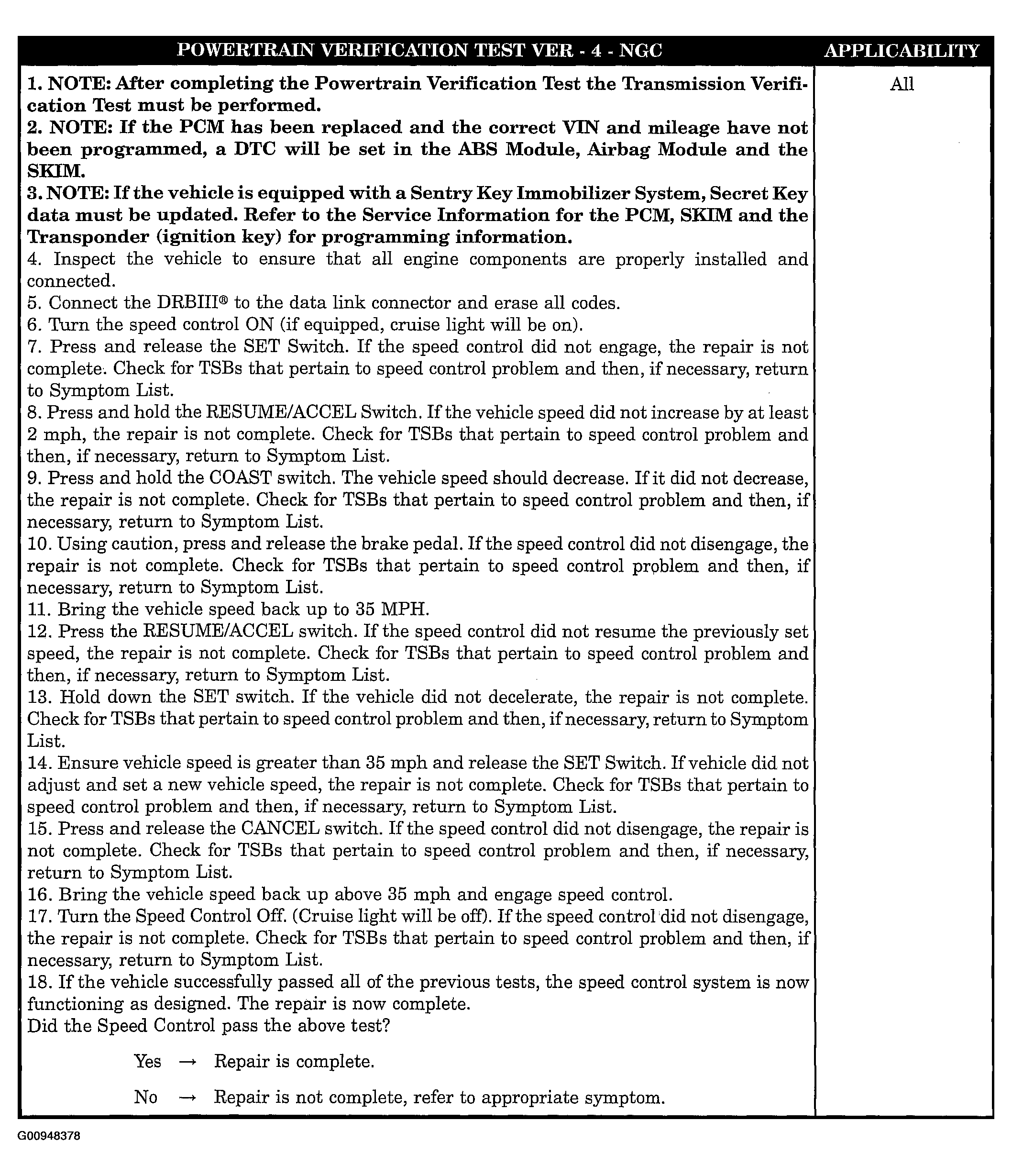

Fig 6: Powertrain Verification Test - VER 4 (NGC)
G00948378Courtesy of DAIMLERCHRYSLER CORP.

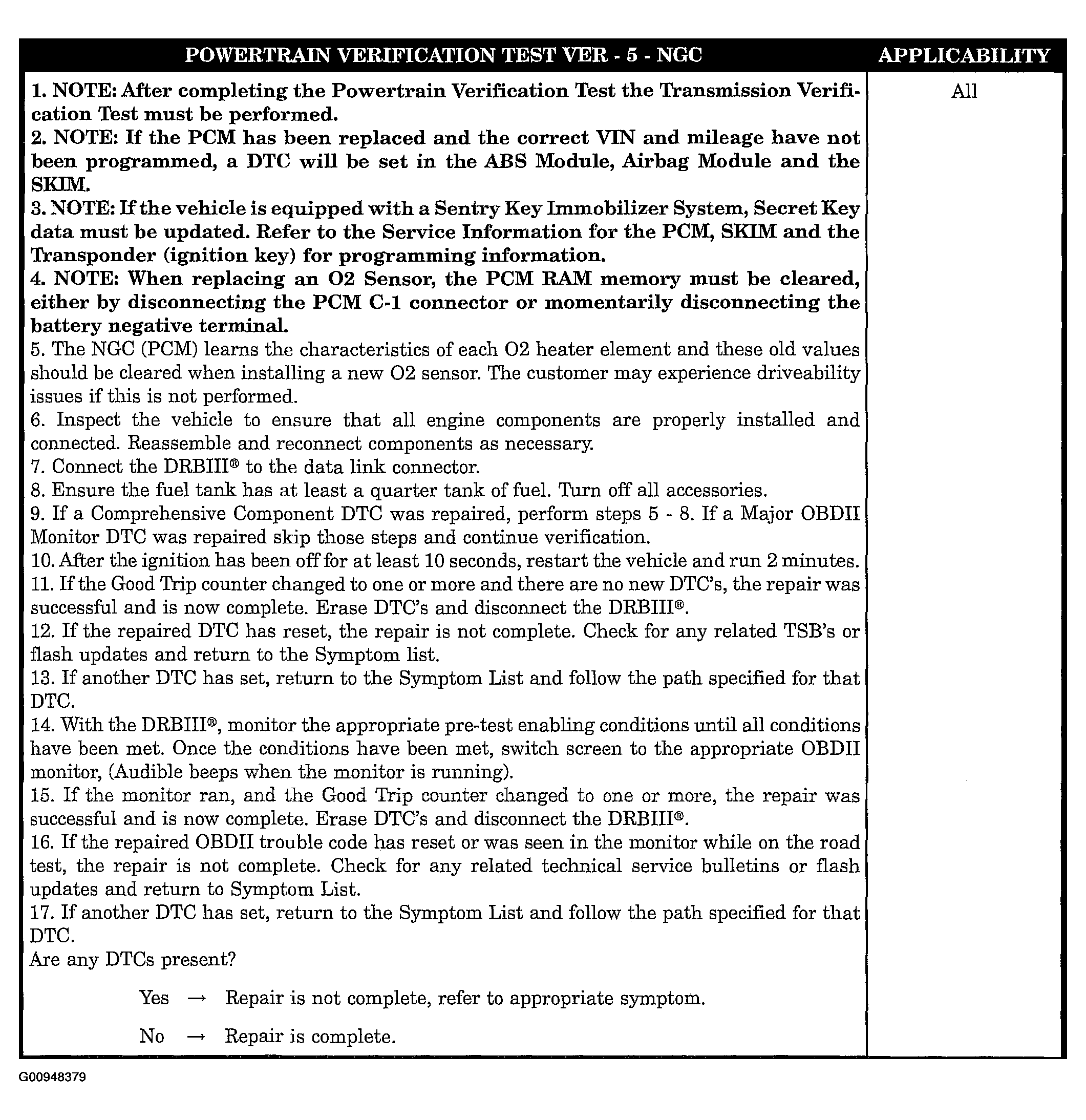

Fig 7: Powertrain Verification Test - VER 5 (NGC)
G00948379Courtesy of DAIMLERCHRYSLER CORP.

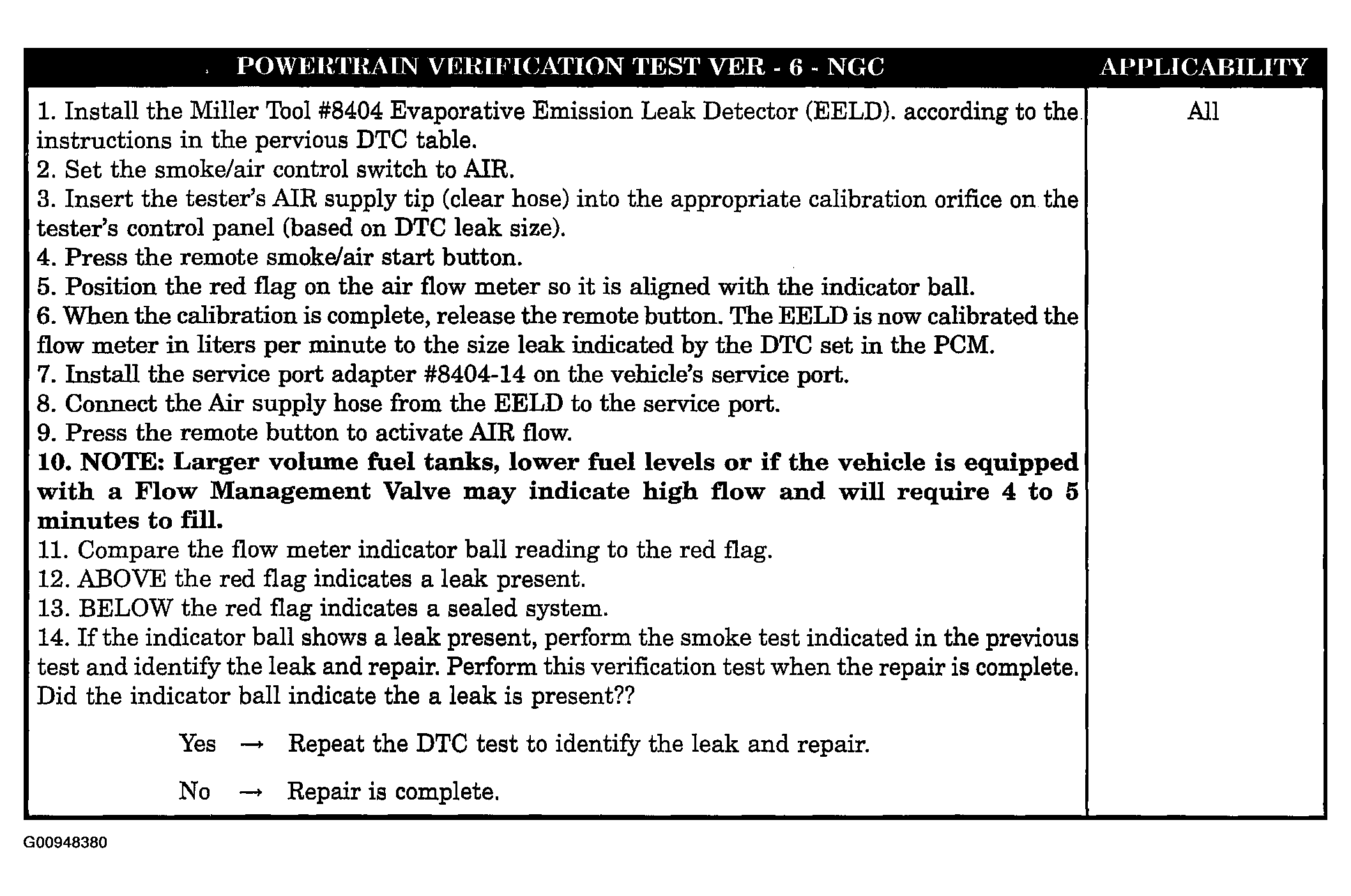

Fig 8: Powertrain Verification Test - VER 6 (NGC)
G00948380Courtesy of DAIMLERCHRYSLER CORP.
Fig 9: SKREEM Verification Test - VER 1A
G00948381Courtesy of DAIMLERCHRYSLER CORP.
