Ignition Coil Capacitor: Removal

  1. Remove the negative battery cable.
  2. Disconnect the electrical connector (Fig 1).

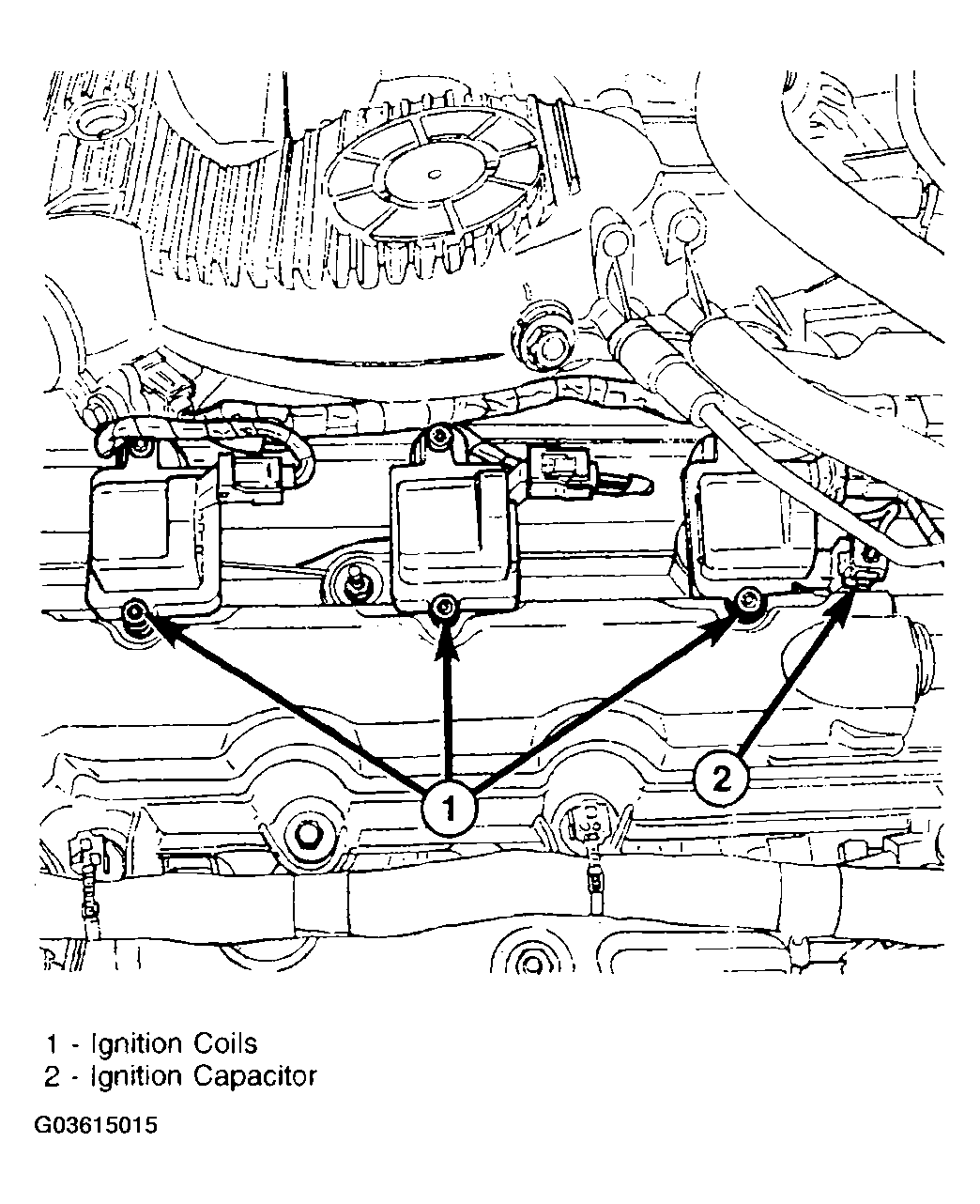

    Fig 1: Identifying Ignition Coil Capacitor
    G03615015Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove nut and capacitor.
