Battery Reconnection: Notes

NOTE: This reconnection procedure is to be performed anytime the battery has been disconnected.

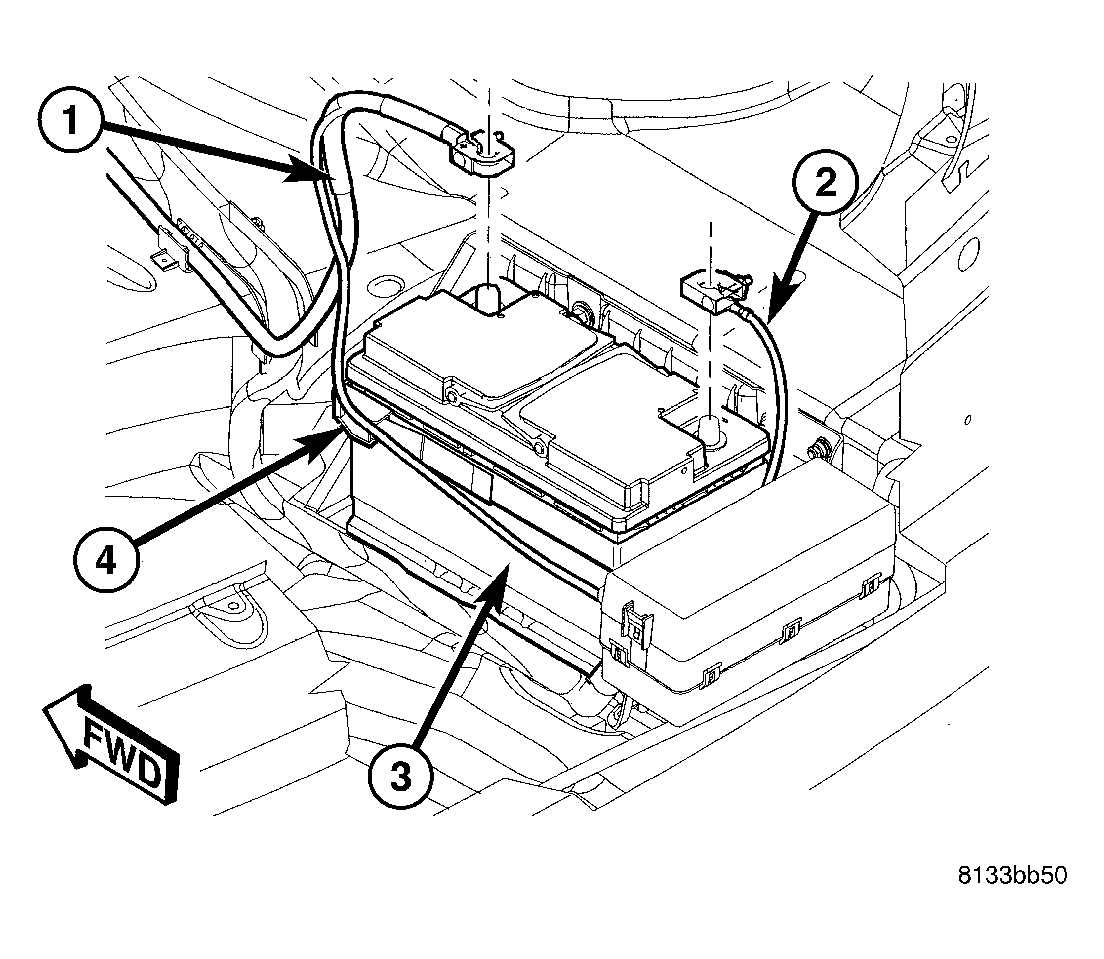

Fig 1: LX BATTERY AND CABLES
GC0012970Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the battery negative cable (2) to the battery post and tighten the clamp nut.
  2. Install the rear compartment floor trim panel.
CAUTION: Once the battery has been connected, review and perform the following information as applicable.
