Battery Tray: Installation

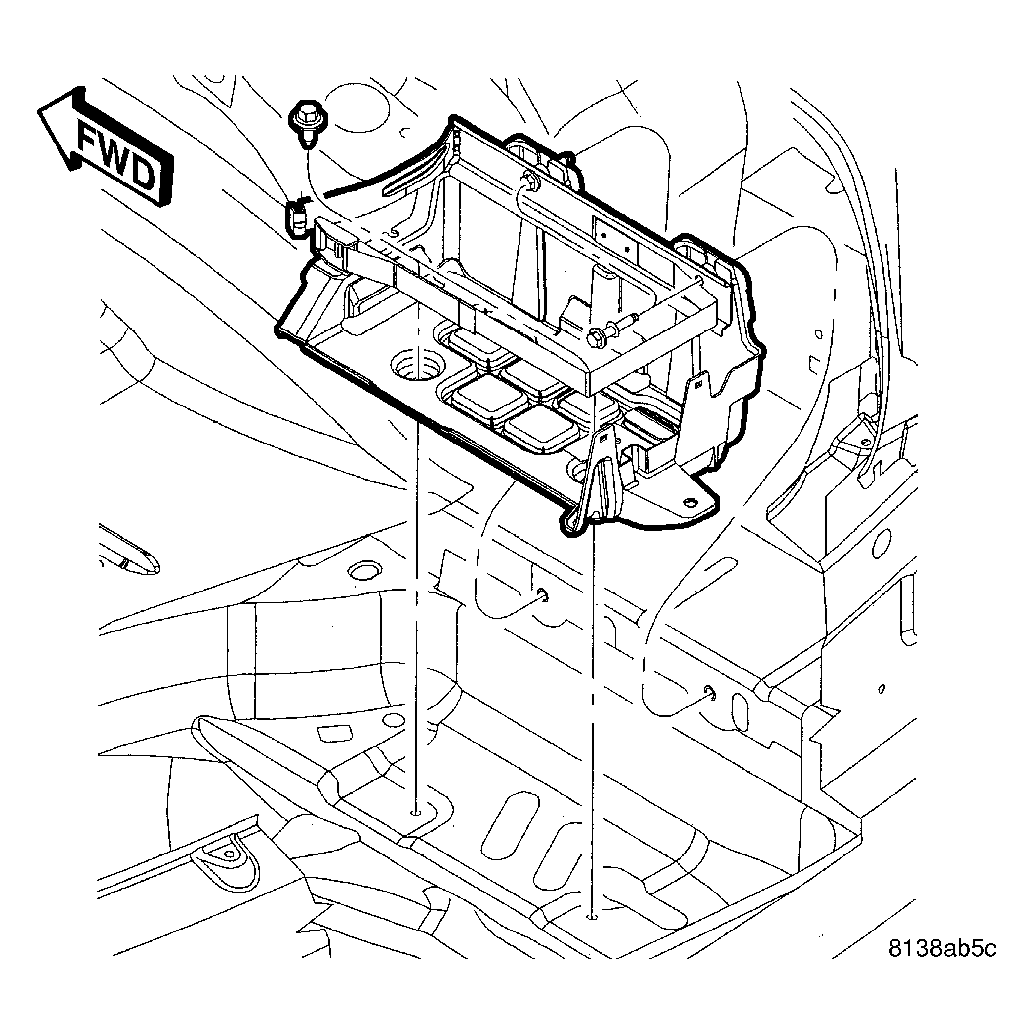

Fig 1: Removing/Installing Battery Tray
GC0015627Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the battery tray in the vehicle and install the mounting fasteners.

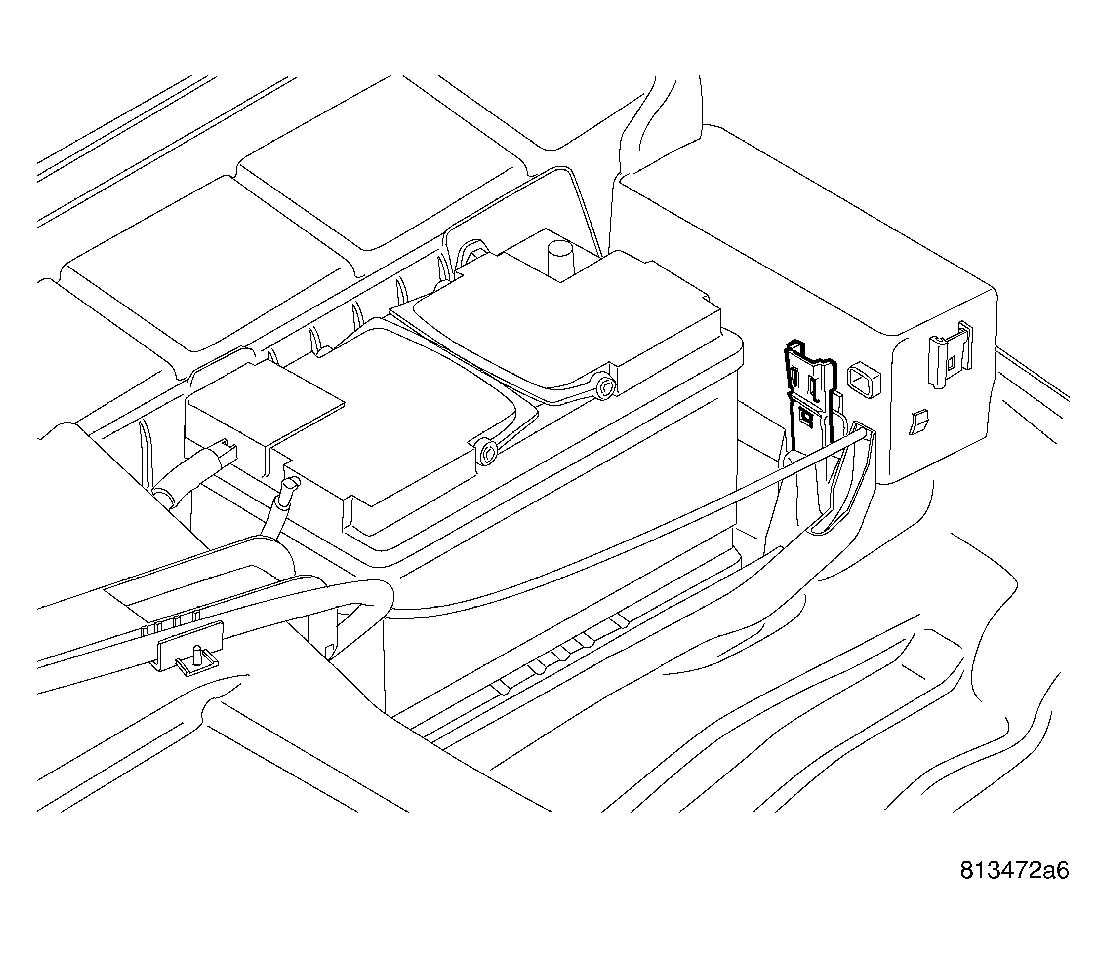

    Fig 2: Removing/Installing Power Distribution Center
    GC0015626Courtesy of DAIMLERCHRYSLER CORP.
  2. Position the Power Distribution Center (PDC) onto the battery tray mounting tabs. Gently apply downward pressure on the PDC until it snaps into place.
  3. Install the battery, (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION) .
