Charging System: Generator: Installation: 2.7L

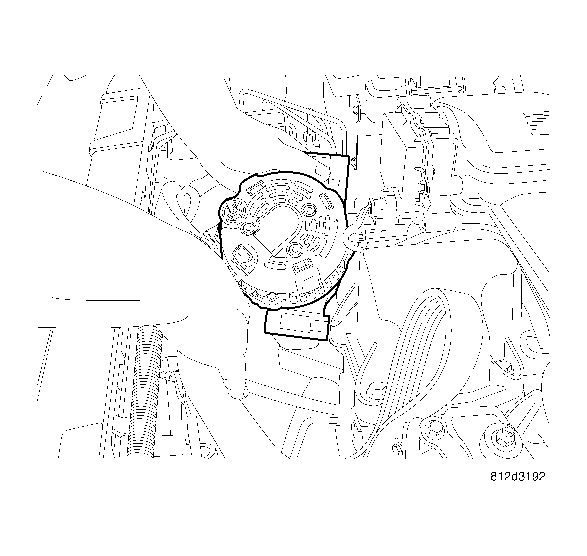

Fig 1: REMOVAL/INSTALL GENERATOR
GC0015632Courtesy of DAIMLERCHRYSLER CORP.
  1. Install generator.

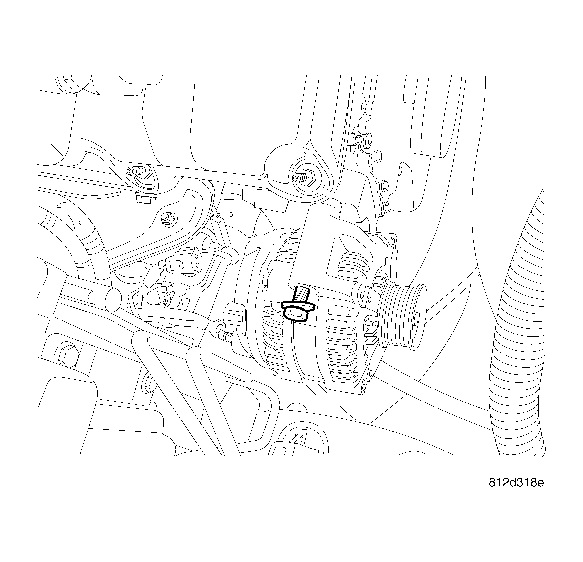

    Fig 2: UPPER BOLT
    GC0015631Courtesy of DAIMLERCHRYSLER CORP.
  2. Install upper bolt mounting bolt.

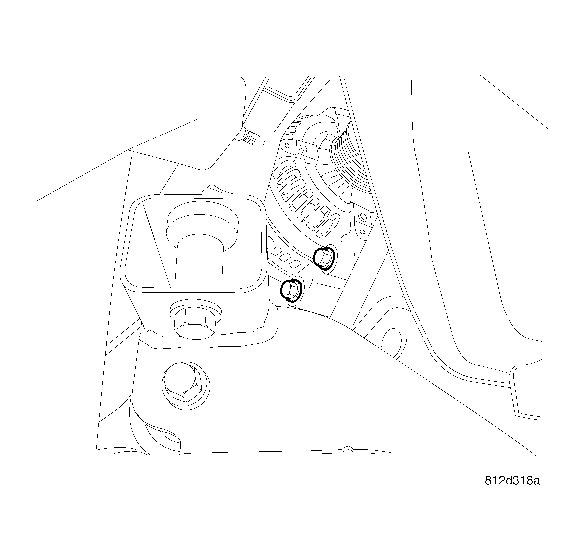

    Fig 3: LOWER BOLTS
    GC0015630Courtesy of DAIMLERCHRYSLER CORP.
  3. Install 2 lower mounting bolts.
  4. Tighten bolts to 65 N.m (48 ft. lbs.).

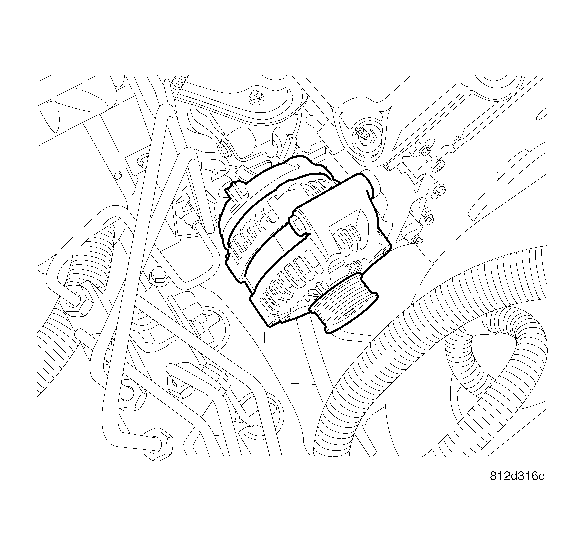

    Fig 4: GENERATOR WITHOUT BELT
    GC0015629Courtesy of DAIMLERCHRYSLER CORP.
  5. Install B+ terminal nut and wire. Tighten nut to 13 N.m (115 in. lbs.).
  6. Connect generator field circuit plug.
  7. Install generator drive belt. Refer to COOLING .
  8. Connect negative battery cable.
