Charging System: Generator: Installation: 3.5L

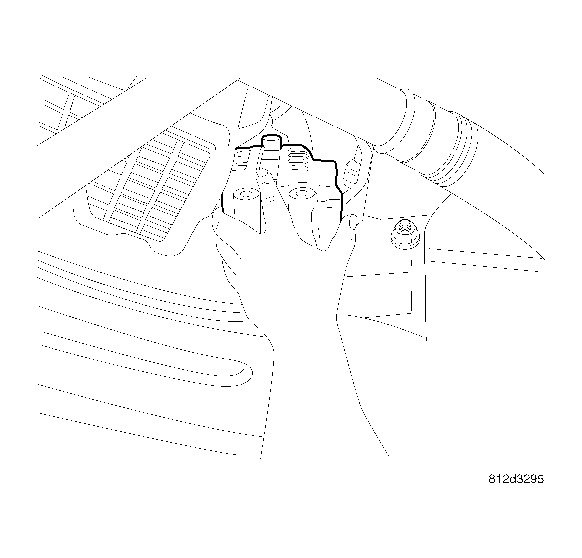

Fig 1: REMOVAL/INSTALL GENERATOR
GC0015633Courtesy of DAIMLERCHRYSLER CORP.
  1. Install generator.
  2. Install lower mounting bolts (3). Loosen install the upper mounting bolt (4).
  3. Tighten lower mounting bolts to 65 N.m (48 ft. lbs.).

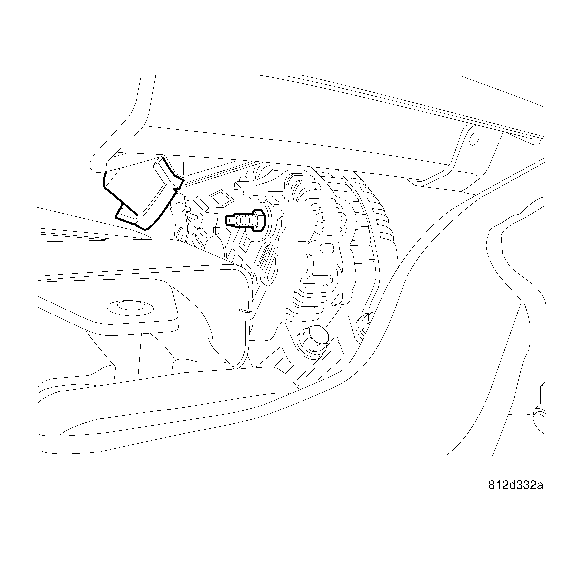

    Fig 2: GENERATOR FIELD CIRCUIT PLUG
    GC0015635Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect generator field circuit plug.
  5. Install B+ terminal nut and wire. Tighten nut to 13 N.m (115 in. lbs.).
  6. Install middle splash pan.
  7. Lower vehicle.

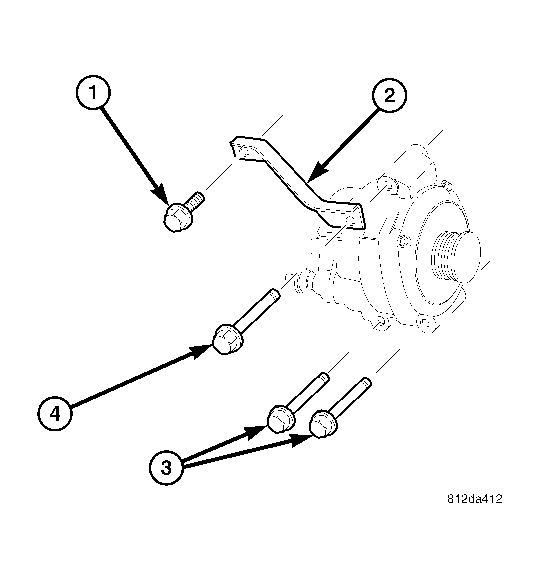

    Fig 3: BRACKET & BOLTS
    GC0015637Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove loose installed upper bolt (4).
  9. Install bracket (2) and bracket bolt (1).
  10. Install upper mounting bolt (4) and bracket (2).
  11. Tighten upper mounting bolt to 65 N.m (48 ft. lbs.).
  12. Tighten Bracket bolt to 54 N.m (40 ft. lbs.).
  13. Install generator drive belt. Refer to COOLING .
  14. Connect negative battery cable.
