Charging System: Generator: Installation: 5.7L

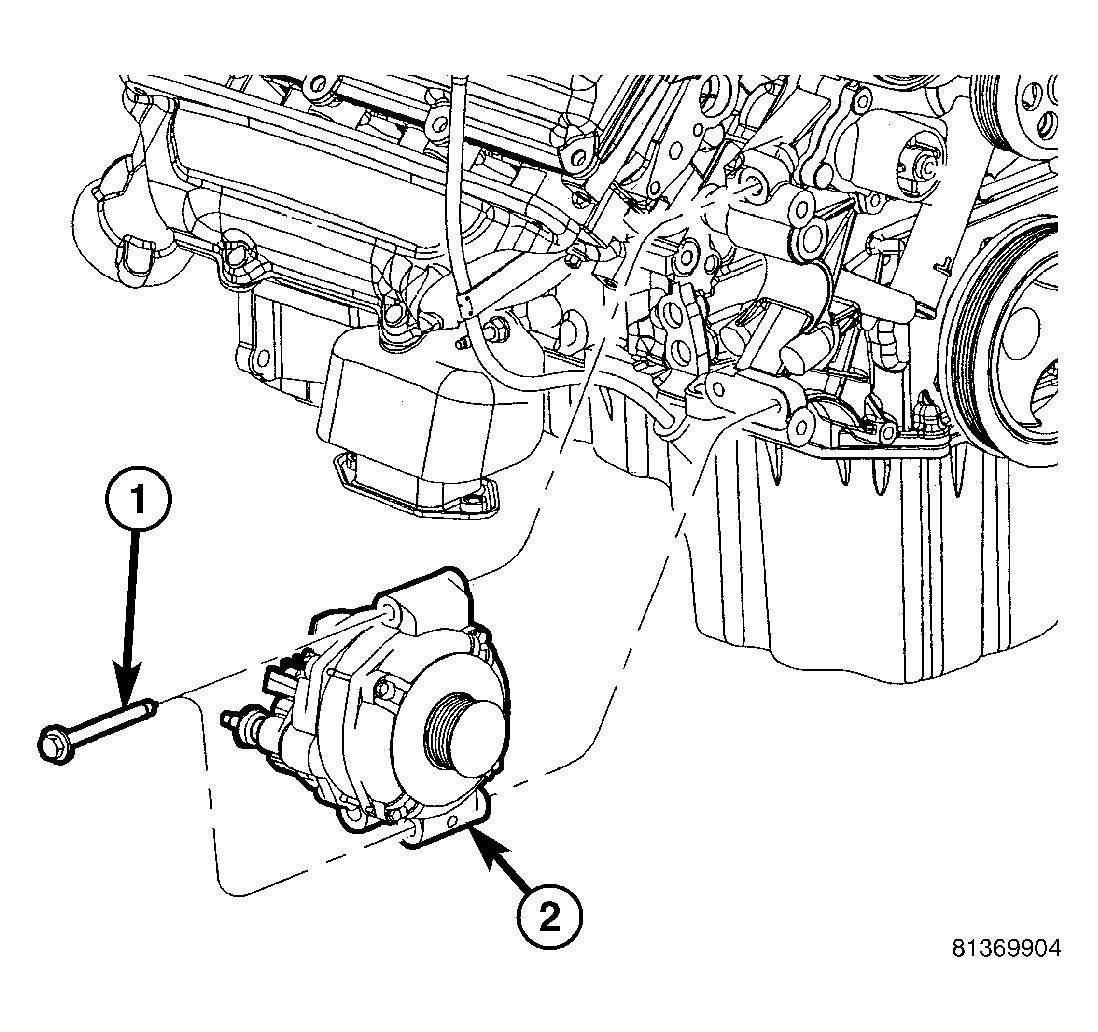

Fig 1: GENERATOR
GC0015638Courtesy of DAIMLERCHRYSLER CORP.
  1. Position generator (2) to engine and install 2 mounting bolts (1).
  2. Tighten bolts. Refer to SPECIFICATIONS .

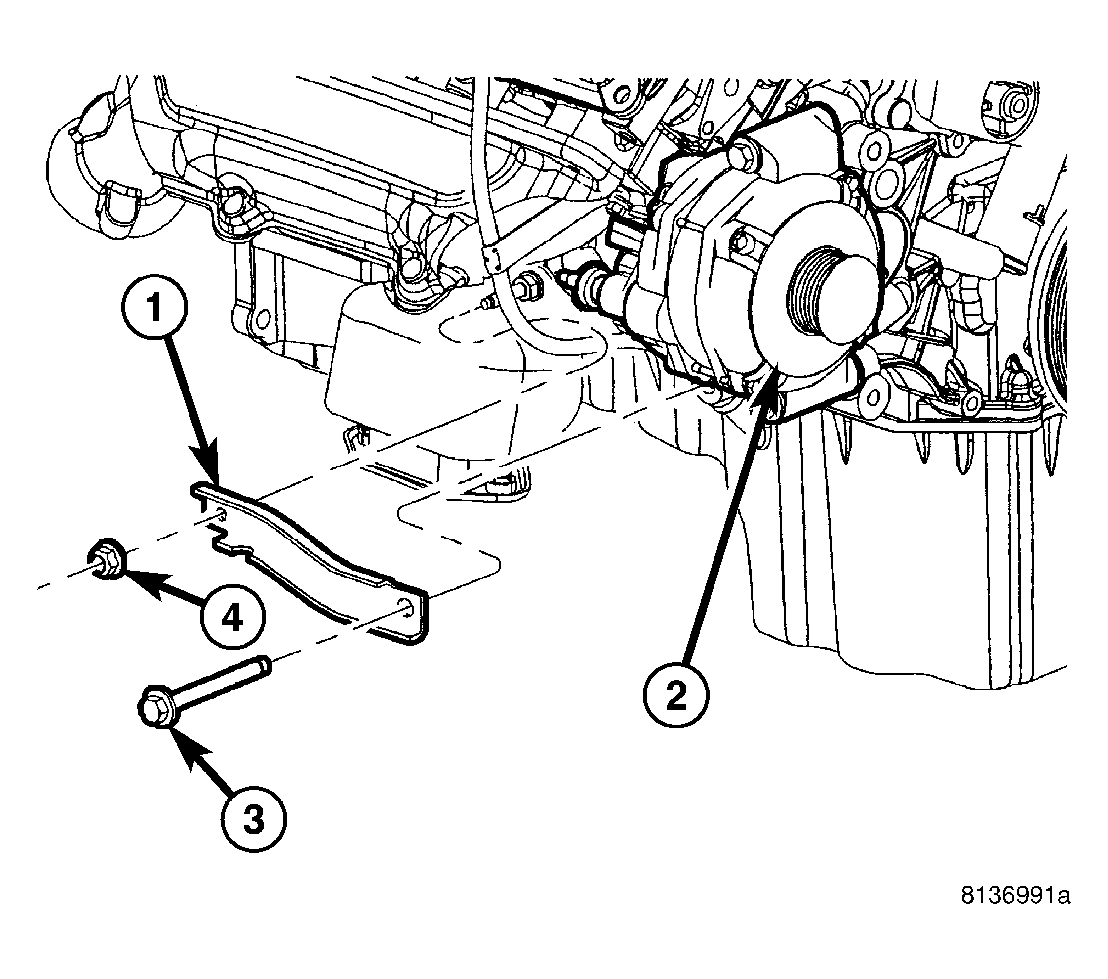

    Fig 2: GENERATOR SUPPORT BRACKET
    GC0015639Courtesy of DAIMLERCHRYSLER CORP.
  3. Position support bracket (1) to generator and install bolt (3) and nut (4). Tighten bolt / nut. Refer to SPECIFICATIONS .
  4. Snap field wire connector into rear of generator.
  5. Install B+ terminal eyelet to generator output stud. Tighten mounting nut. Refer to SPECIFICATIONS .
  6. Lower vehicle.
    CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.
    CAUTION: When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or refer to Belt Schematics in COOLING .
  7. Install generator drive belt. Refer to COOLING .
  8. Install negative battery cable to battery.
