Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

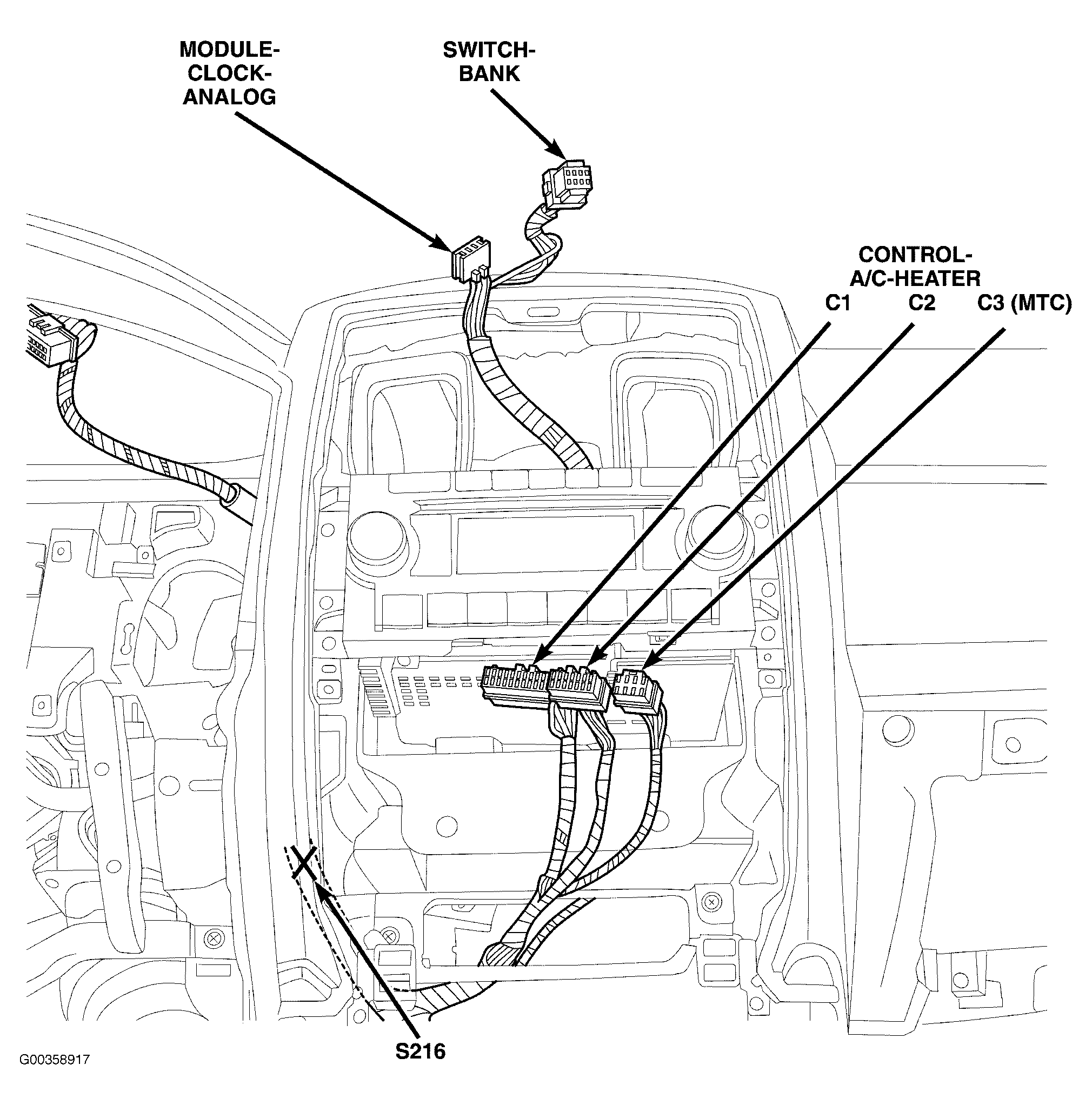

| Analog Clock Module | Behind top center of dash. See Figure . |

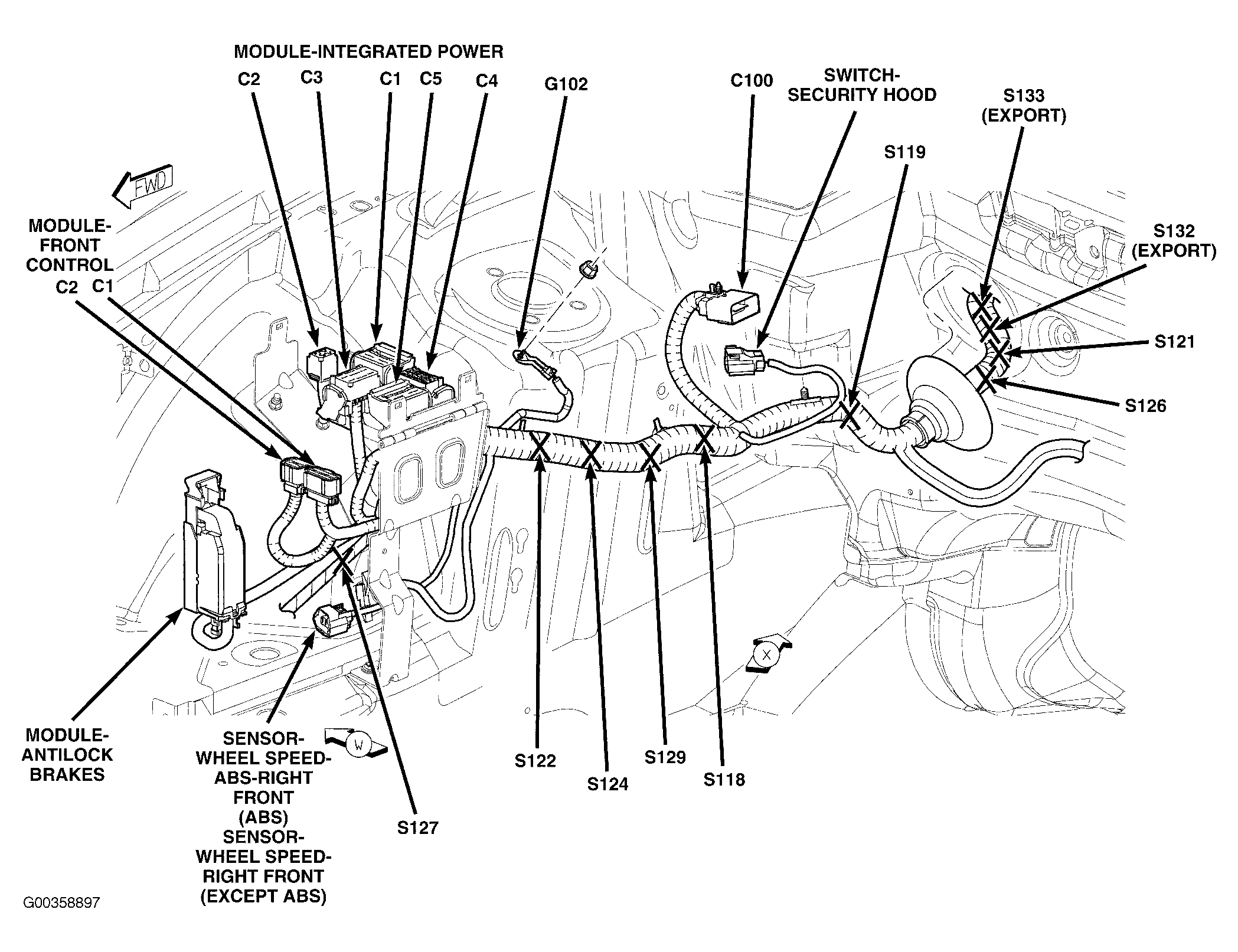

| Antilock Brakes Module | At right front of engine compartment. See Figure . |
| Brake Module (5.7L) | Behind left kick panel. See Figure . |
| Driver Door Module | At middle of driver door. See Figure . |
| Electronic Overhead Module | In overhead console. See Figure . |
| Front Blower Power Module (ATC) | On center of HVAC unit. See Figure . |
| Front Control Module | At right side of engine compartment. See Figure . |

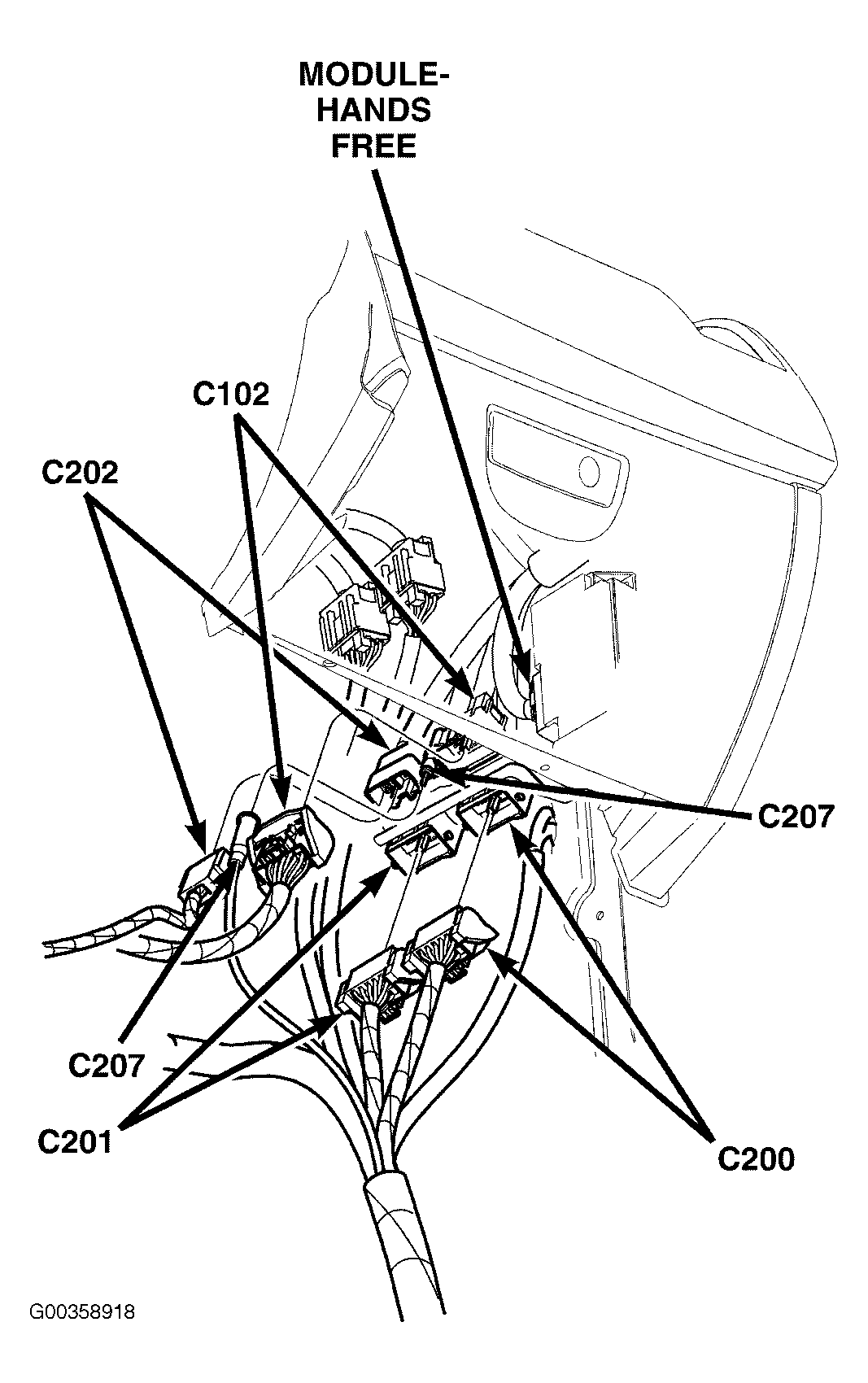

| Hands Free Module | Behind right side of dash. See Figure . |
| Heated Seats Module | Below passenger seat. See Figure . |
| Integrated Power Module | At right side of engine compartment. See Figure . |
| Memory Seat Module | Below driver seat. See Figure . |
| Occupant Classification Module | Below passenger seat. See Figure . |

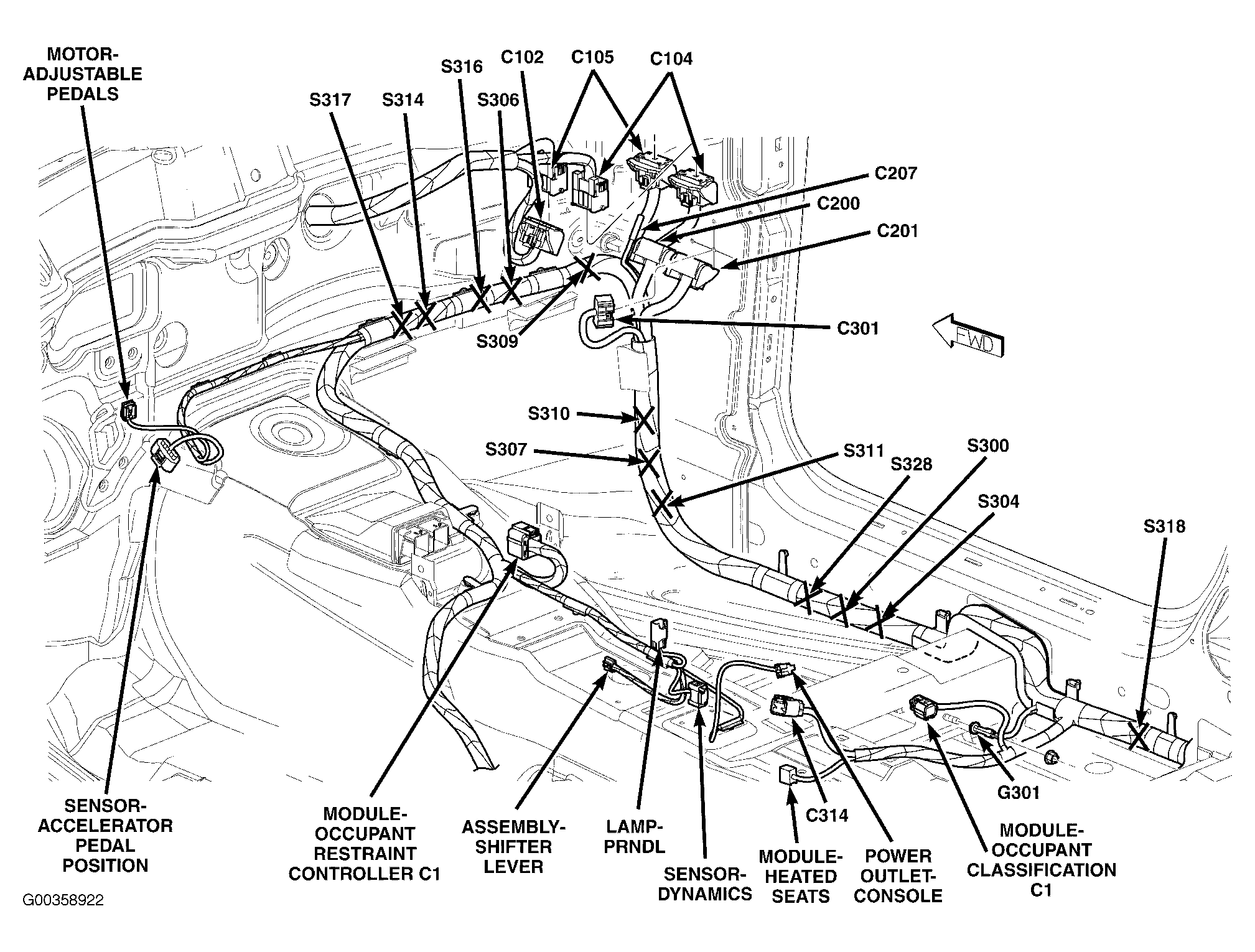

| Occupant Restraint Controller Module | In center console. See Figure . |

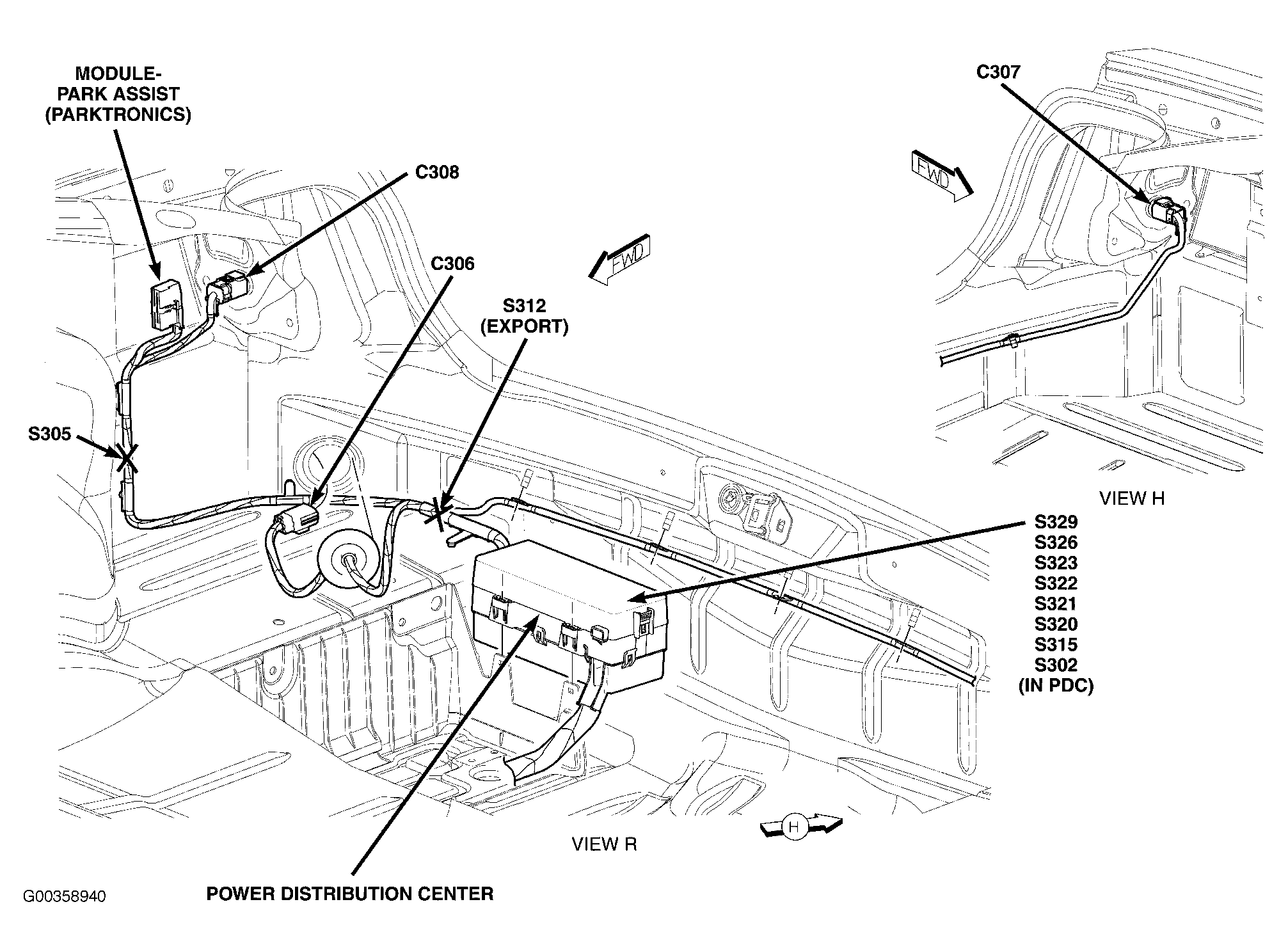

| Park Assist Module | Behind right rear seat. See Figure . |
| Park Display Module | At rear center of headliner. See Figure . |

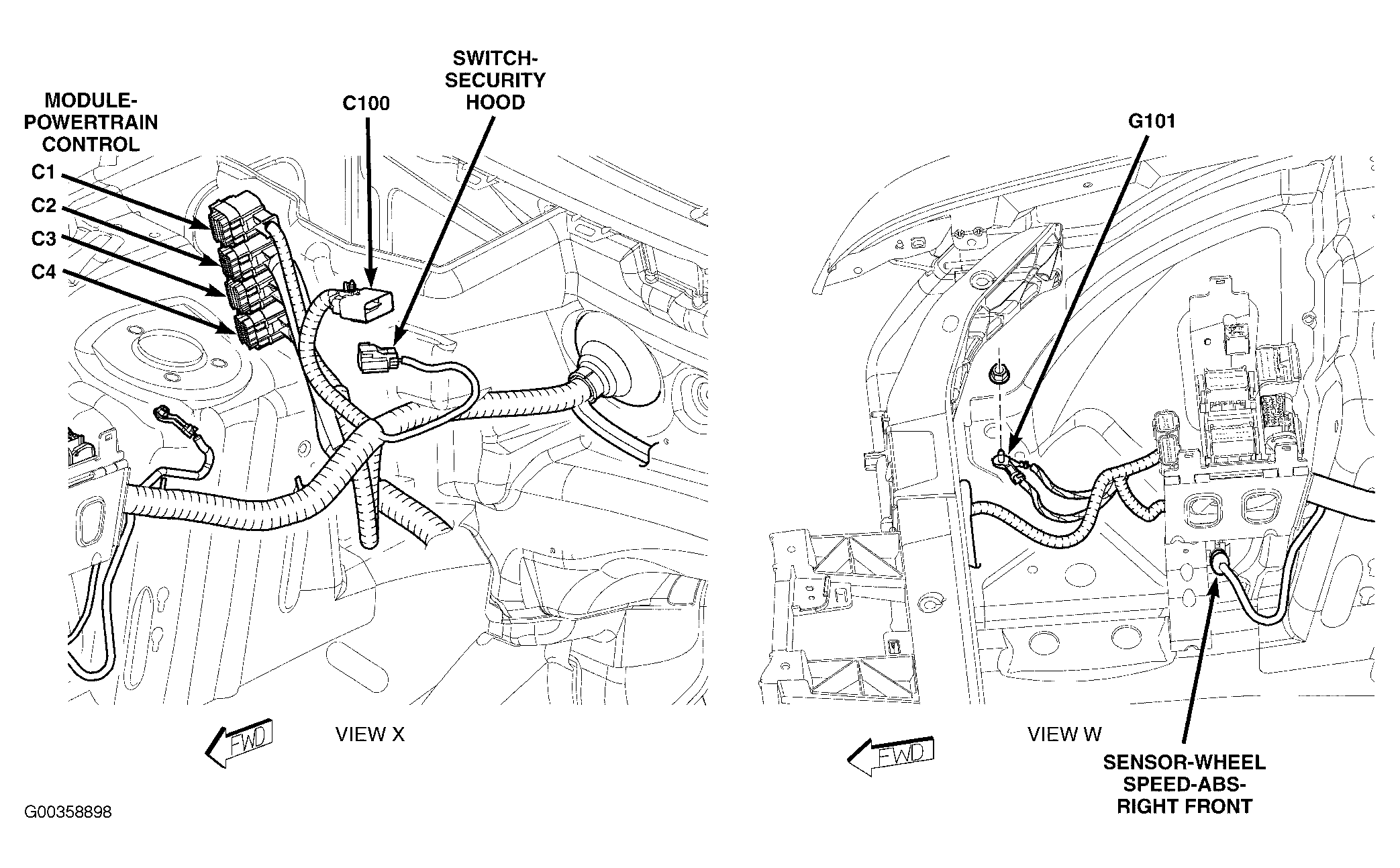

| Powertrain Control Module | At right rear of engine compartment. See Figure . |
| Sentry Key Remote Entry Module | In steering column. See Figure . |
| Steering Control Module | In steering column. See Figure . |

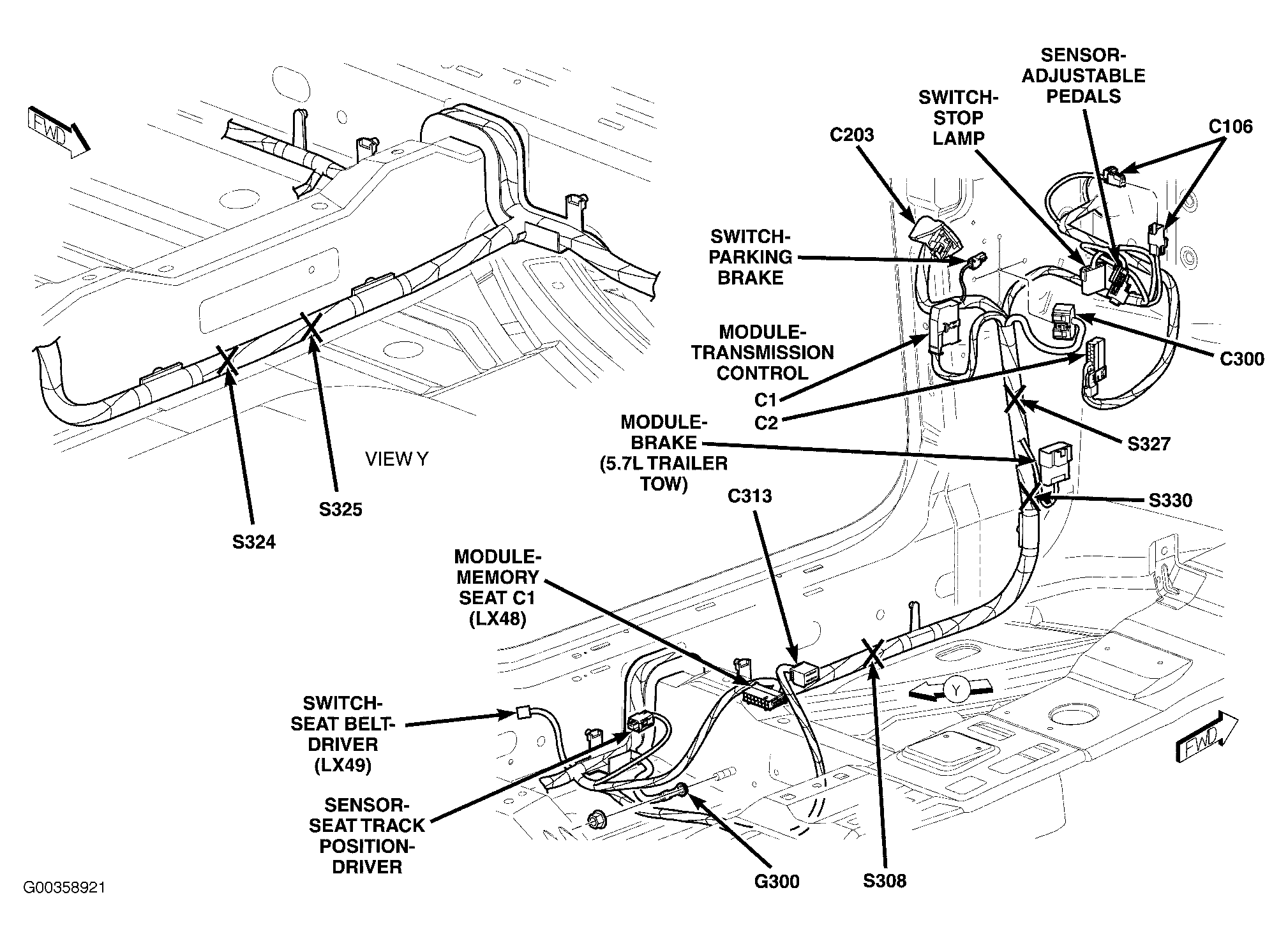

| Transmission Control Module | Below steering column. See Figure . |
