Left Side Module

Fig 1: LEVEL CARD TABS DR SIDE

Courtesy of DAIMLERCHRYSLER CORP.

Install level sending card, make sure that the locking tabs are locked on the card.

Fig 2: WIRE LOCATION LEFT CARD
Courtesy of DAIMLERCHRYSLER CORP.
Route wires in the proper location.

Fig 3: ELECTRICAL CONNECTORS
Courtesy of DAIMLERCHRYSLER CORP.
Install module top to module bottom.

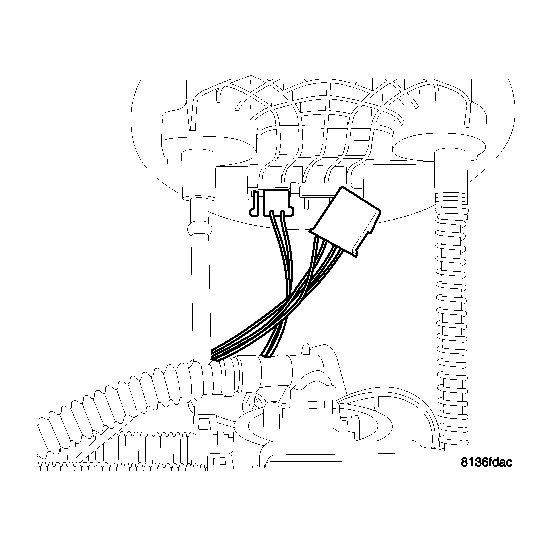

Fig 4: ELECTRICAL CONNECTOR LEFT SIDE CARD
Courtesy of DAIMLERCHRYSLER CORP.
Connect the electrical connectors for right side fuel level sending card, left side module card and fuel pump.

Fig 5: LEFT SIDE MODULE ORIENTATION
Courtesy of DAIMLERCHRYSLER CORP.
Install module and align marks on the module for proper orientation.

Fig 6: TOOL 9430 LEFT SIDE MODULE
Courtesy of DAIMLERCHRYSLER CORP.
Install module lock-ring.
Use special tool #9340 to tighten left side module lock ring.
Connect the electrical connector to left side module and install plastic access cover.

Fig 7: FOAM PAD UNDER SEAT
Courtesy of DAIMLERCHRYSLER CORP.
Fold the foam pad covering access cover for modules back into place.

Fig 8: REAR SEAT UP
Courtesy of DAIMLERCHRYSLER CORP.
Install rear lower seat cushion

Fig 9: REAR SEAT
Courtesy of DAIMLERCHRYSLER CORP.
Rear lower seat cushion installed.

Fig 10: DRAINING FUEL
Courtesy of DAIMLERCHRYSLER CORP.
Fill fuel tank.
Connect negative battery cable.
Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
