Fuel Injection: Injector-Fuel: Installation: 5.7L

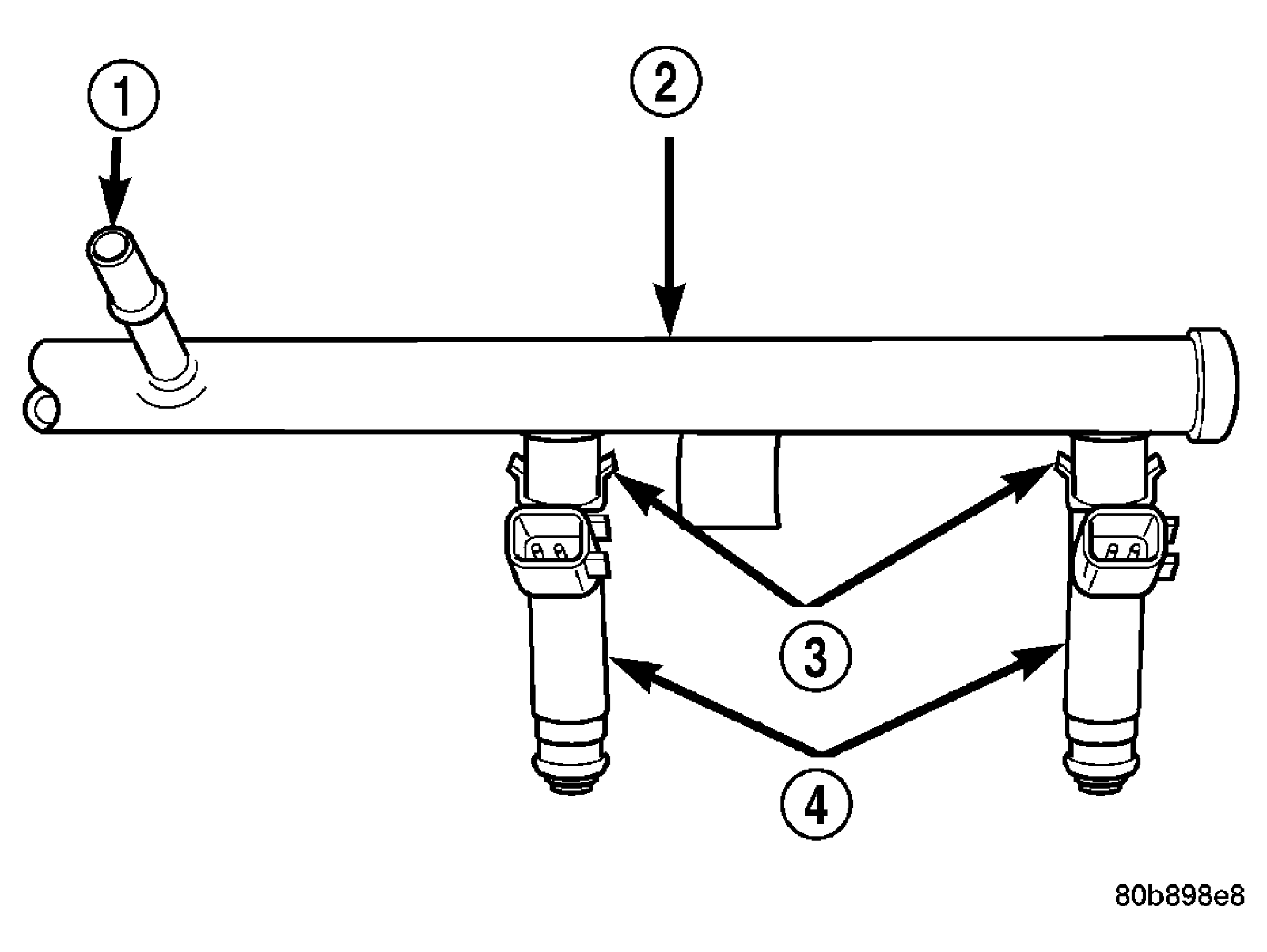

Fig 1: FUEL INJECTOR MOUNTING-TYPICAL

Courtesy of DAIMLERCHRYSLER CORP.

1. Apply a small amount of engine oil to each fuel injector o-ring. This will help in fuel rail installation.
2. Install injector(s) (4) and injector clip(s) (3) to fuel rail.
3. Install fuel rail assembly. (Refer to RAIL-FUEL ) .
4. Start engine and check for leaks.
