Sensor-Crankshaft Position: Installation: 5.7L
- Clean out machined hole in engine block.
- Apply a small amount of engine oil to sensor o-ring.

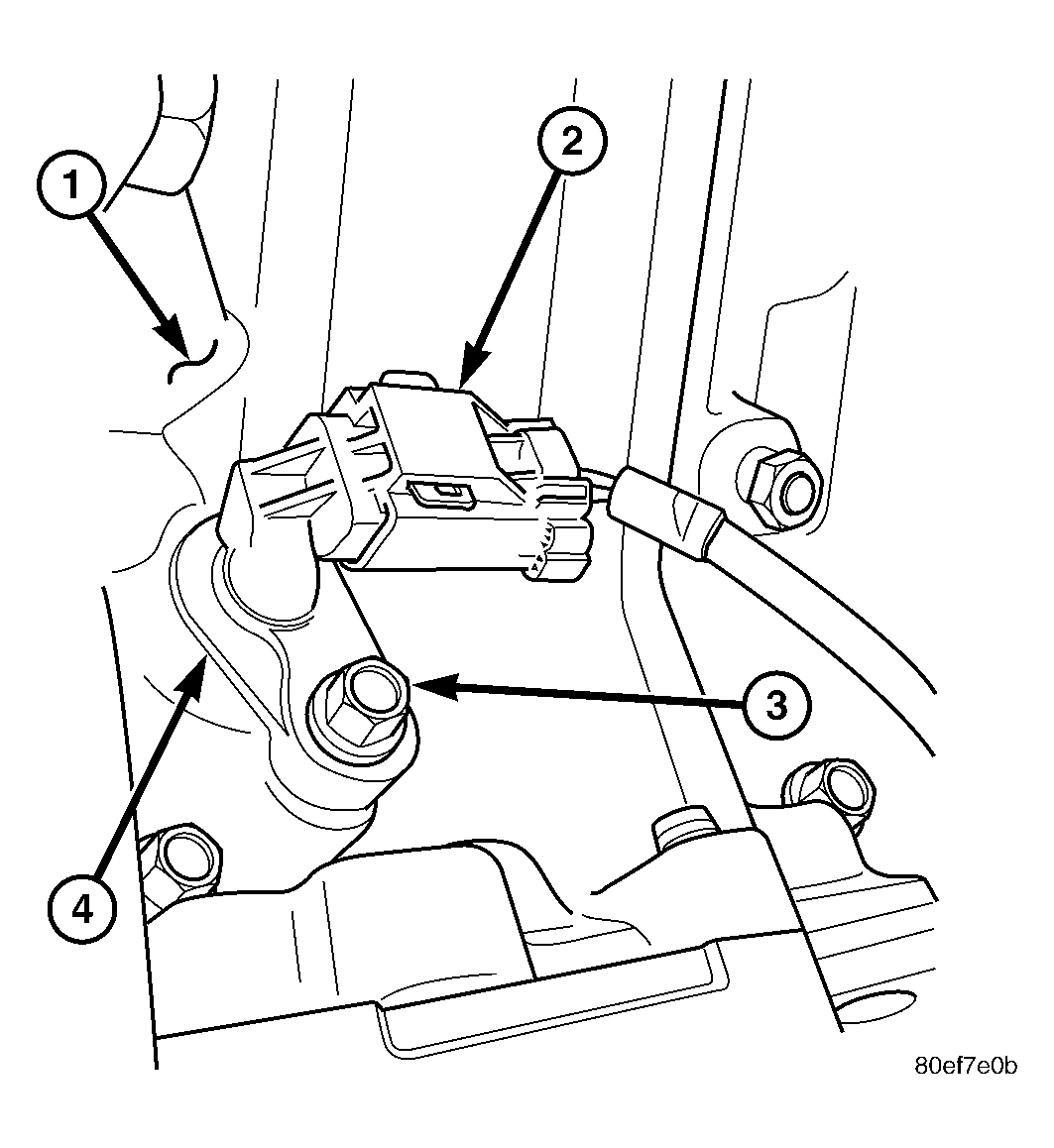

- Install sensor (4) into engine block with a slight rocking and twisting action.CAUTION: Before tightening sensor mounting bolt (3) , be sure sensor is completely flush to cylinder block. If sensor is not flush, damage to sensor mounting tang may result.
- Install mounting bolt (3) and tighten to 12 N.m (106 in. lbs.) torque.
- Connect electrical connector (2) to sensor.
- Lower vehicle.
