Sensor-Inlet Air Temperature: Installation: 5.7L

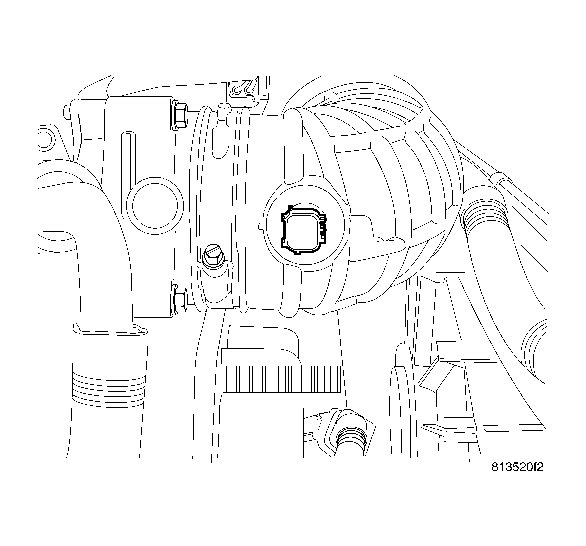

Fig 1: SENSOR ORIENTATION

Courtesy of DAIMLERCHRYSLER CORP.

1. Press sensor into rubber air hose.
2. Rotate sensor into position as shown in Fig 1 . For proper system operation, sensor must be positioned as shown in  Fig 1  .
   Fig 2: SENSOR LOCATION

   Courtesy of DAIMLERCHRYSLER CORP.
3. Connect electrical connector to sensor.
