Sensor-Manifold Absolute Pressure: Installation: 2.7L

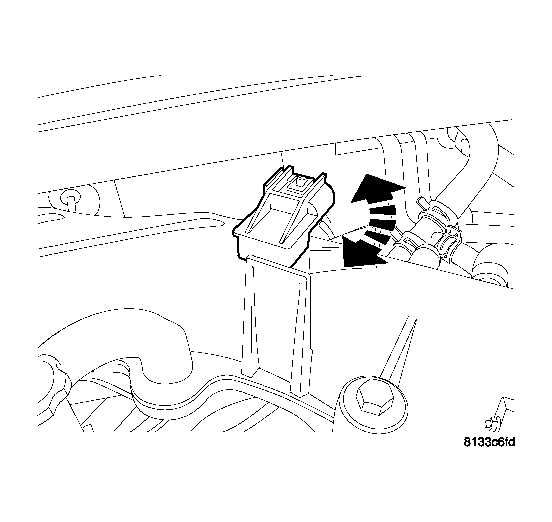

Fig 1: MAP SENSOR SIDE VIEW

Courtesy of DAIMLERCHRYSLER CORP.

1. Clean MAP sensor mounting hole at intake manifold.
2. Check MAP sensor o-ring seal for cuts or tears.
   Fig 2: 1/4 TURN TO REMOVE/INSTALL

   Courtesy of DAIMLERCHRYSLER CORP.
3. Position sensor into intake manifold.

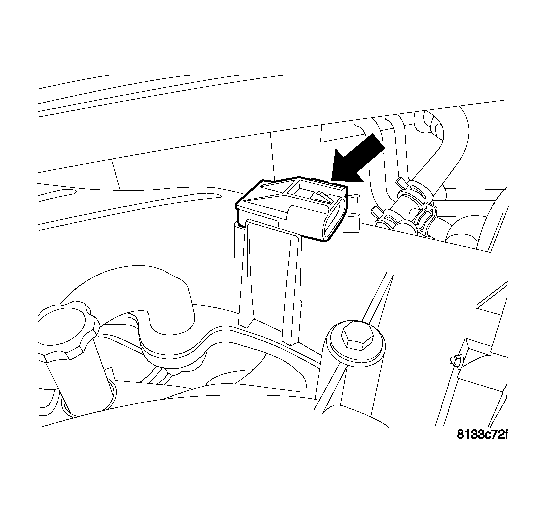

   Fig 3: MAP SENSOR IN PLACE

   Courtesy of DAIMLERCHRYSLER CORP.
4. Rotate sensor 1/4 turn clockwise for installation.

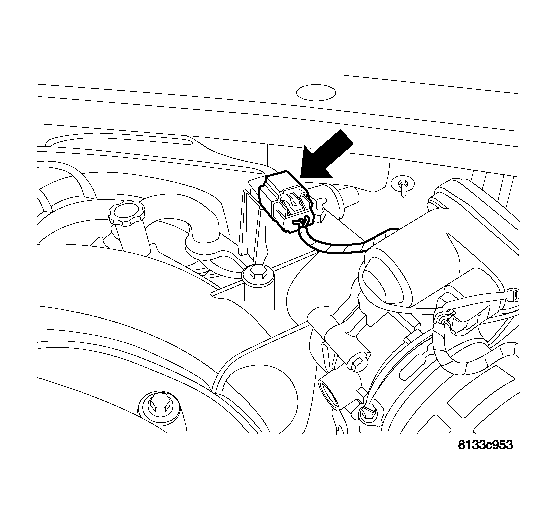

   Fig 4: MAP SENSOR LOCATION 2.7L

   Courtesy of DAIMLERCHRYSLER CORP.
5. Connect electrical connector to sensor.
6. Lock electrical connector.
7. Connect negative battery cable.
