Fuel Delivery: Rail-Fuel: Installation: 2.7L
Courtesy of DAIMLERCHRYSLER CORP.
- Lightly lubricate the fuel injector O-rings with a couple drops of clean engine oil.
- Install retaining clips on fuel injectors.

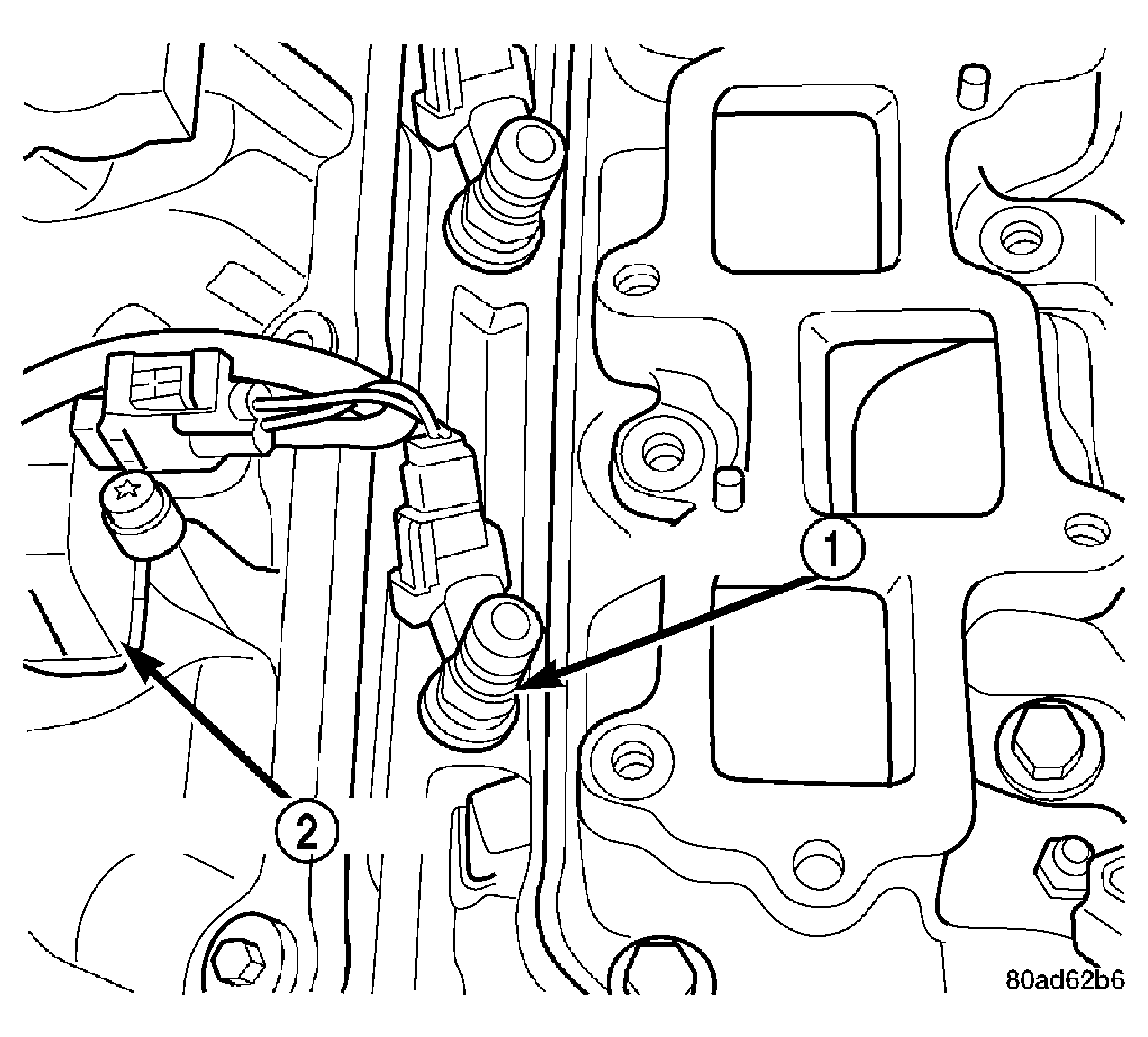

- Push injectors into fuel injector rail until clips are in the correct position.
- Position fuel rail over cylinder heads, and push rail into place. Tighten fuel rail mounting bolts to 11 N.m (100 in. lbs.) torque.
- Connect the fuel supply tube quick connect fitting to the fuel rail, (Refer to FUEL SYSTEM/FUEL DELIVERY/QUICK CONNECT FITTING - STANDARD PROCEDURE) .
- Connect the electrical connectors to the fuel injectors.
- Install intake manifold plenum, (Refer to appropriate ENGINE article).
- Connect negative cable to battery.
- Use the scan tool to pressurize the fuel system. Check for leaks.
