Fuel Injection: Pedal-Accelerator: Installation

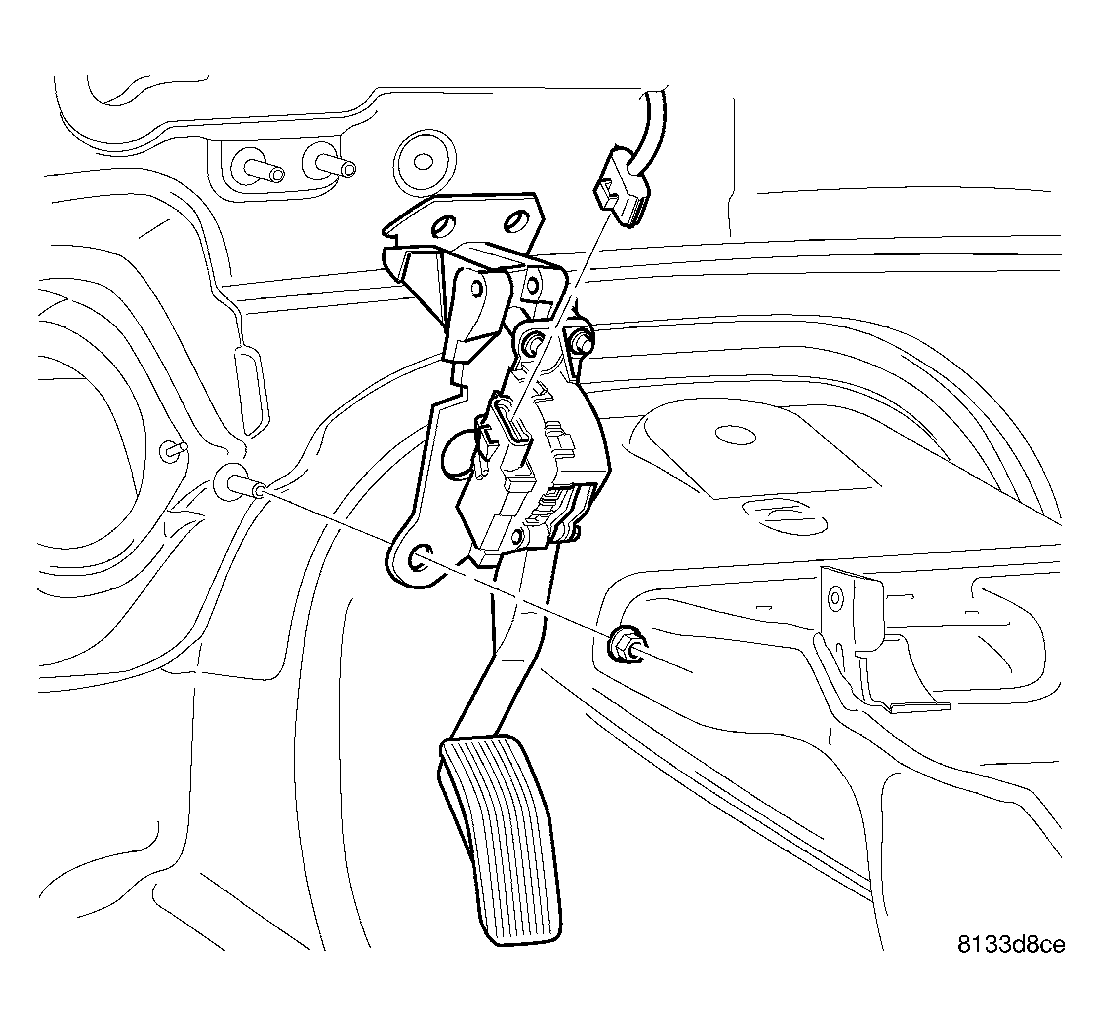

Fig 1: PEDAL REMOVAL/INSTALL

Courtesy of DAIMLERCHRYSLER CORP.

1. Install pedal assembly to mounting studs.
2. Install nuts.
3. Tighten mounting nuts to 34 N.m (25 ft. lbs.).
4. Connect electrical connector to assembly.
5. Connect negative battery cable.
