Sensor-Crankshaft Position: Removal: 2.7L

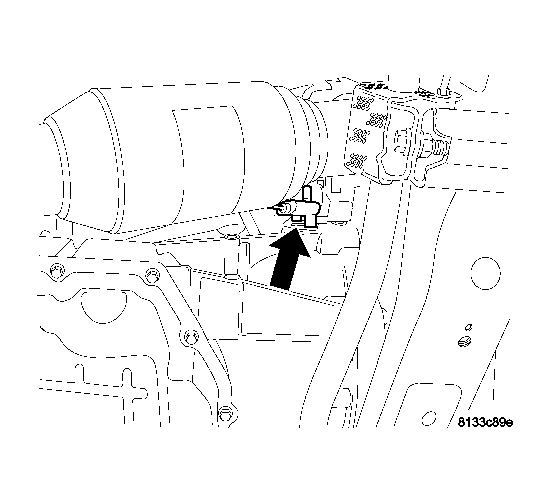

Fig 1: SENSOR LOCATION 3.5L
GC0013118Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery cable.
  2. Raise vehicle and support.

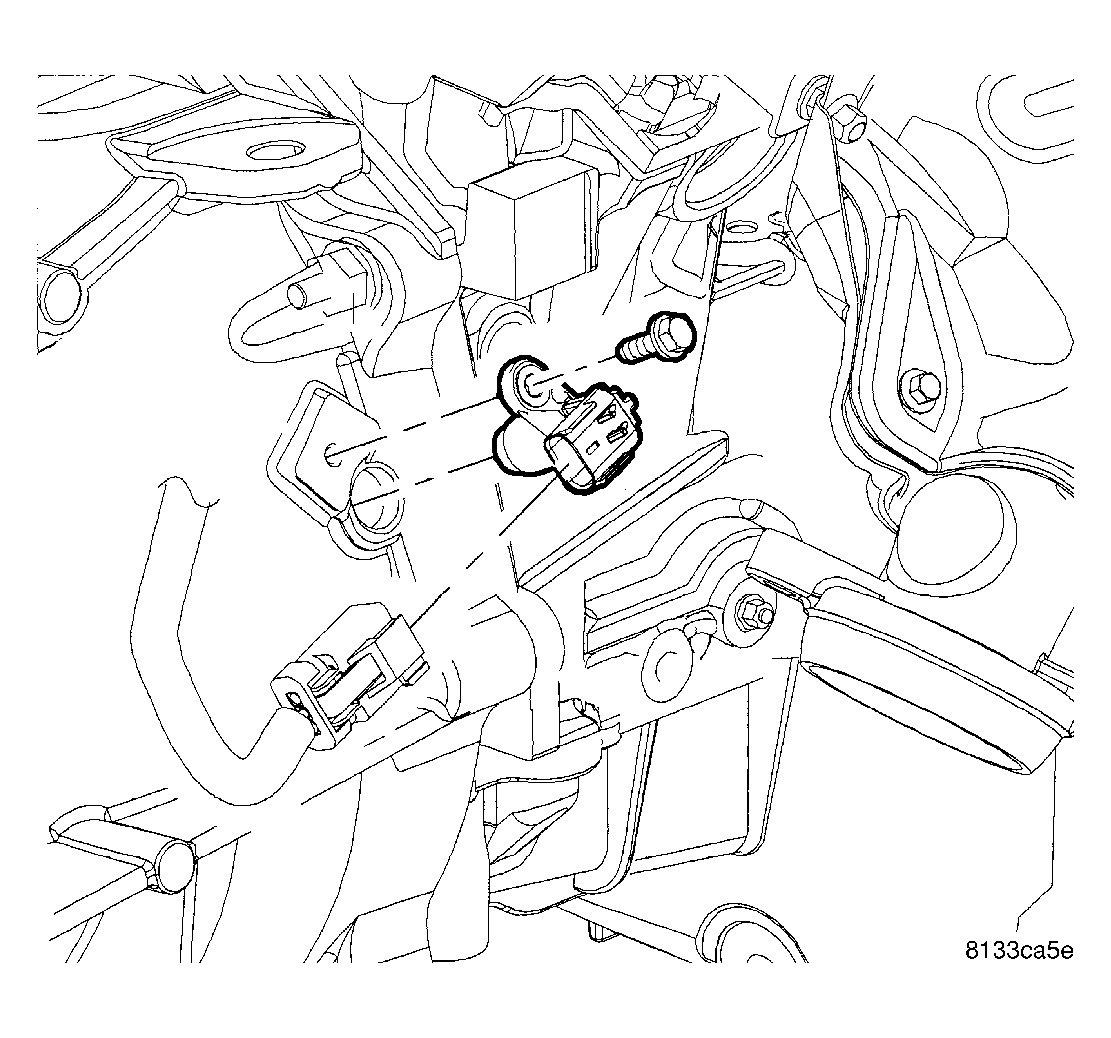

    Fig 2: Crankshaft Position Sensor
    GC0012853Courtesy of DAIMLERCHRYSLER CORP.
  3. Unlock and disconnect the electrical connector.
  4. Remove mounting bolt.
  5. Remove sensor.
