Sensor-Inlet Air Temperature: Removal: 2.7L

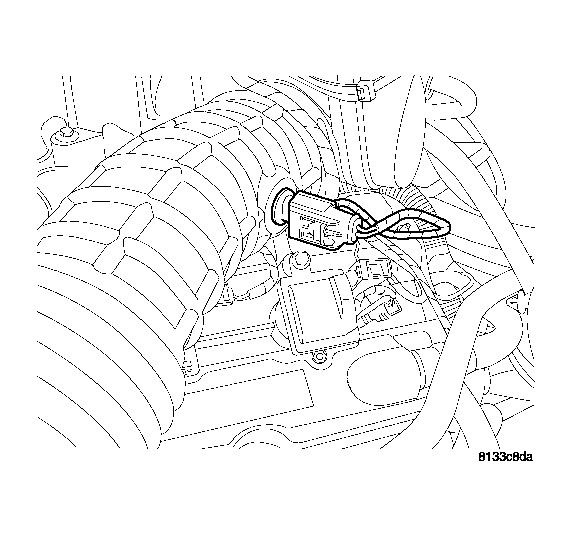

Fig 1: SENSOR LOCATION 2.7L
GC0013123Courtesy of DAIMLERCHRYSLER CORP.
  1. Sensor location.
  2. Disconnect negative battery cable.

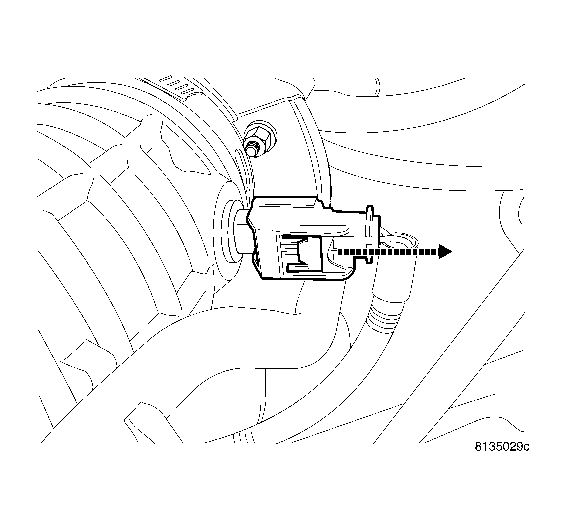

    Fig 2: CONNECTOR UNLOCKED
    GC0013124Courtesy of DAIMLERCHRYSLER CORP.
  3. Unlock electrical connector.
  4. Remove electrical connector from sensor.
  5. Note the orientation of the sensor.

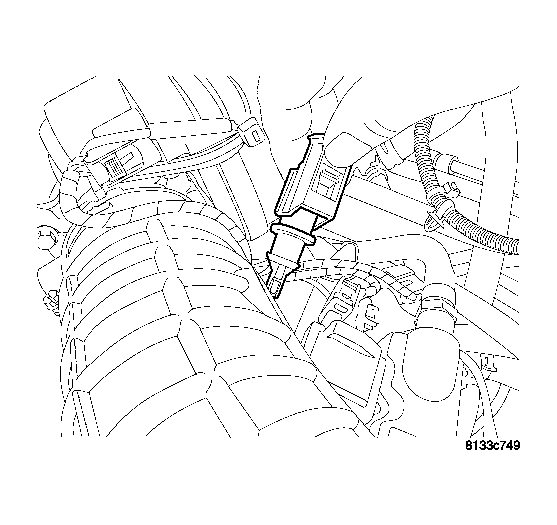

    Fig 3: SENSOR REMOVED 2.7L
    GC0013121Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove sensor from air inlet hose.
