Sensor-Inlet Air Temperature: Removal: 3.5L

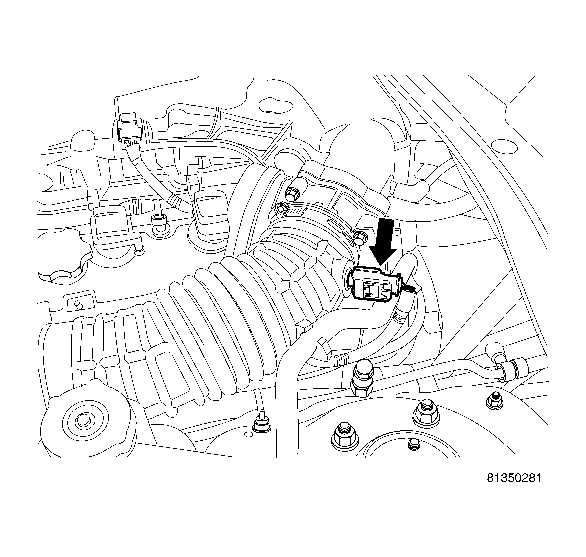

Fig 1: INLET AIR TEMPERATURE SENSOR LOCATION
GC0013127Courtesy of DAIMLERCHRYSLER CORP.
  1. Sensor location.
  2. Disconnect negative battery cable.
    Fig 2: CONNECTOR UNLOCKED
    GC0013124Courtesy of DAIMLERCHRYSLER CORP.
  3. Unlock the electrical connector.
  4. Remove electrical connector from sensor.

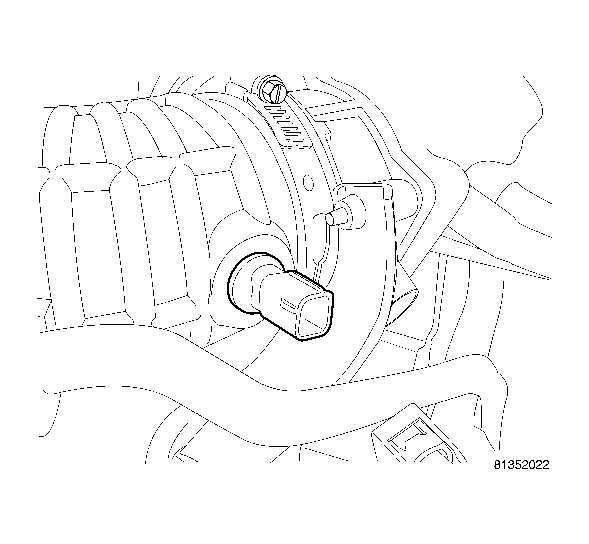

    Fig 3: SENSOR ORIENTATION
    GC0013128Courtesy of DAIMLERCHRYSLER CORP.
  5. Note sensor orientation.
  6. Remove sensor.
