Sensor-Inlet Air Temperature: Removal: 5.7L

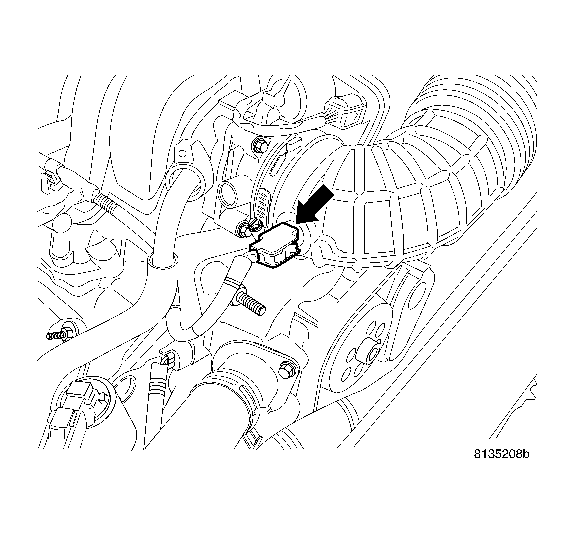

Fig 1: INLET AIR TEMPERATURE SENSOR LOCATION

Courtesy of DAIMLERCHRYSLER CORP.

The Inlet Manifold Air Temperature (IAT) sensor is installed into the rubber air intake hose near front of throttle body.

1. Disconnect electrical connector from IAT sensor.
2. Clean dirt from sensor base.
3. Pull sensor from rubber hose.
