Sensor-Manifold Absolute Pressure: Removal: 3.5L

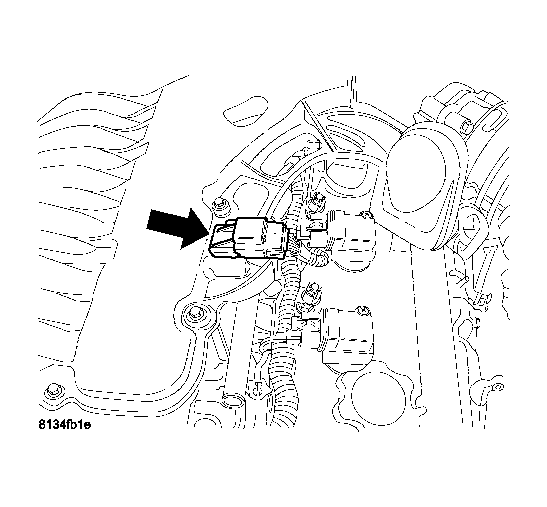

Fig 1: MAP LOCATION

Courtesy of DAIMLERCHRYSLER CORP.

1. Sensor location.
2. Disconnect negative battery cable.

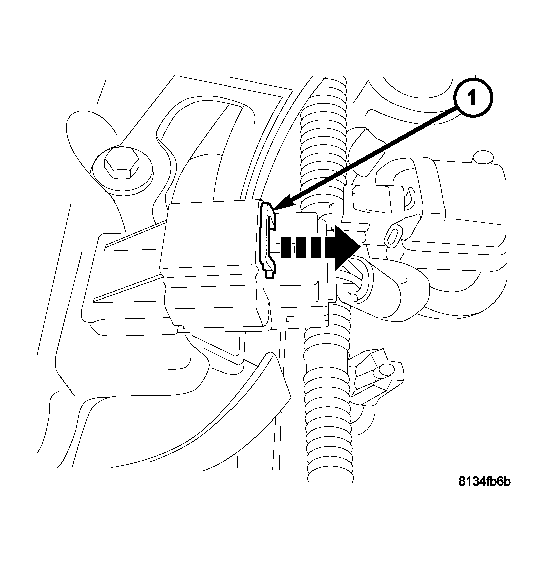

   Fig 2: ELECTRICAL CONNECTOR

   Courtesy of DAIMLERCHRYSLER CORP.
3. Unlock the electrical connector.
   Fig 3: ELECTRICAL CONNECTOR

   Courtesy of DAIMLERCHRYSLER CORP.
4. Disconnect the electrical connector.
   Fig 4: 1/4 TURN TO REMOVE/INSTALL

   Courtesy of DAIMLERCHRYSLER CORP.
5. Rotate sensor 1/4 turn clockwise.
6. Pull up on sensor.
   Fig 5: MAP SENSOR REMOVED

   Courtesy of DAIMLERCHRYSLER CORP.
7. Remove sensor.
