Capacitor-Ignition Coil: Installation

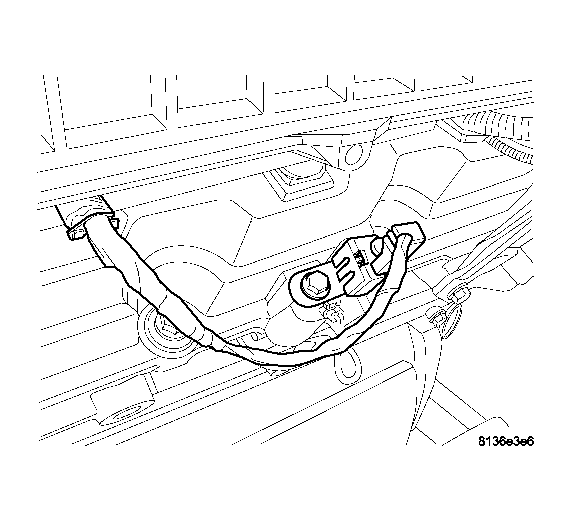

Fig 1: IGNITION COIL CAPACITOR RIGHT SIDE
GC0015979Courtesy of DAIMLERCHRYSLER CORP.
  1. Install capacitor and tighten nut.
  2. Attach electrical connector to capacitor.
  3. Install the negative battery cable.
