Ignition System (Service Information): Coil-Ignition: Installation: 2.7L

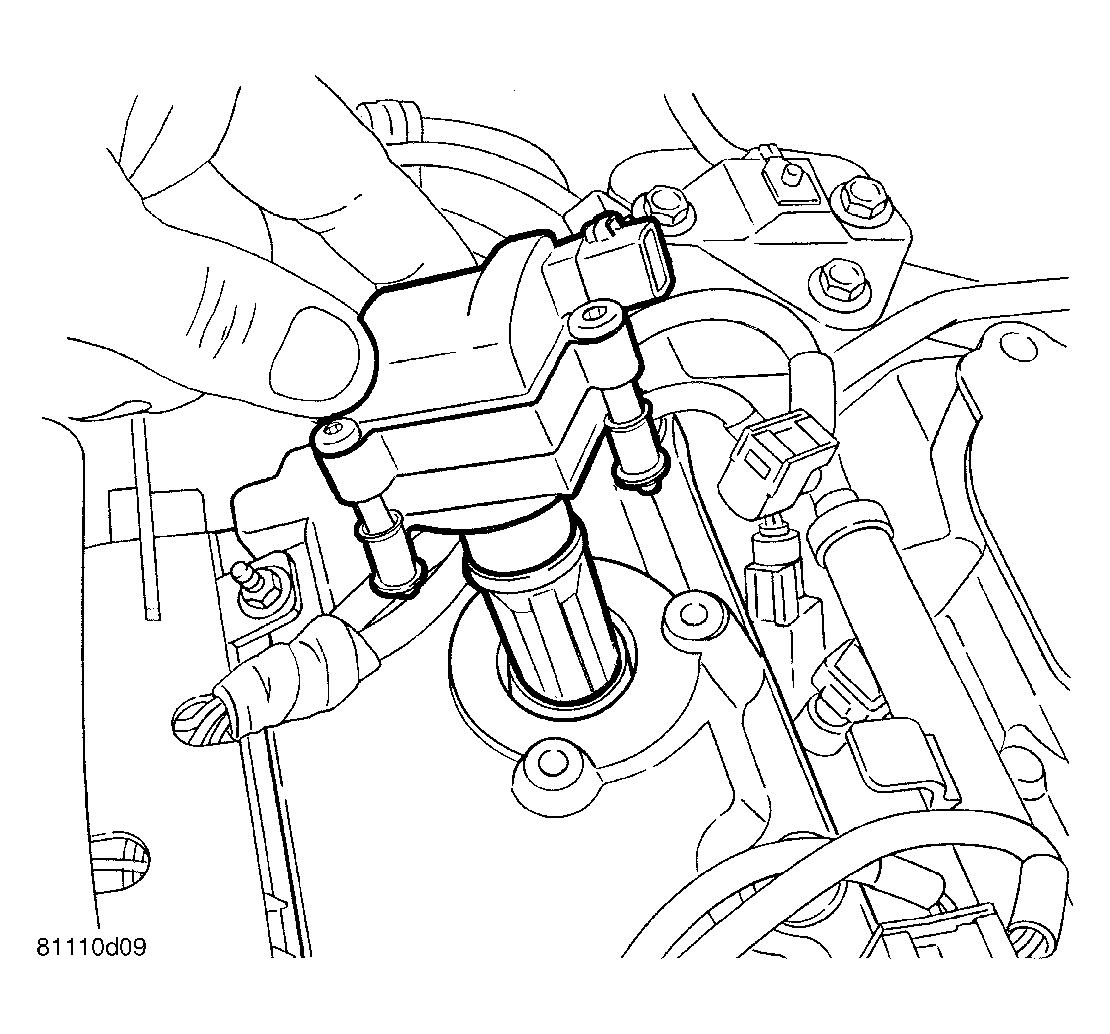

Fig 1: IGNITION COIL REMOVAL/INSTALLATION

Courtesy of DAIMLERCHRYSLER CORP.

1. Install ignition coil assembly to spark plug.
2. Install coil screws and tighten: 2.7L engine to 6.2 N.m (55 in. lbs.).
3. Connect the electrical connector and lock.

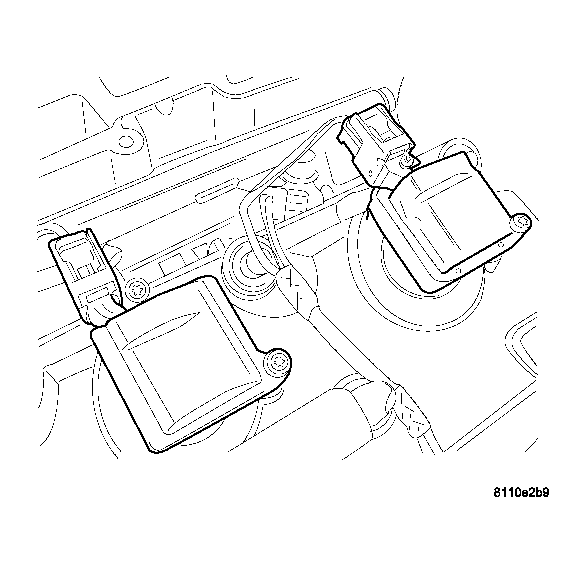

   Fig 2: IGNITION COILS

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install the intake manifold. (Refer to appropriate ENGINE article).
5. Connect negative battery cable.
