Ignition System (Service Information): Sensor-Knock: Removal: 3.5L

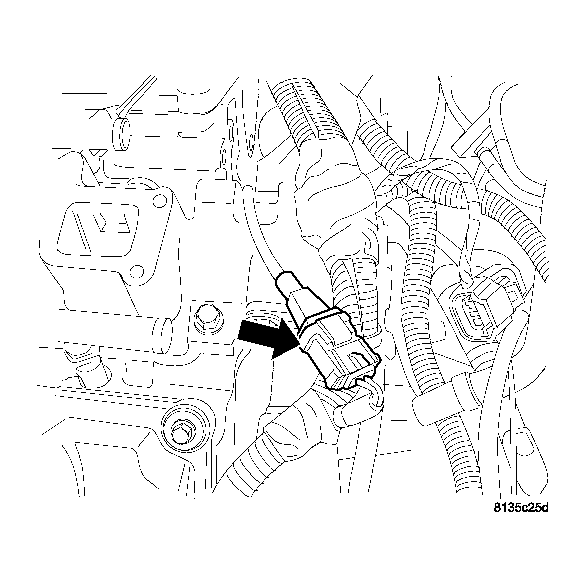

Fig 1: KNOCK SENSOR CONNECTOR

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect the negative battery cable.
2. Remove the upper intake manifold. (Refer to appropriate ENGINE article).
3. Disconnect the electrical connector.

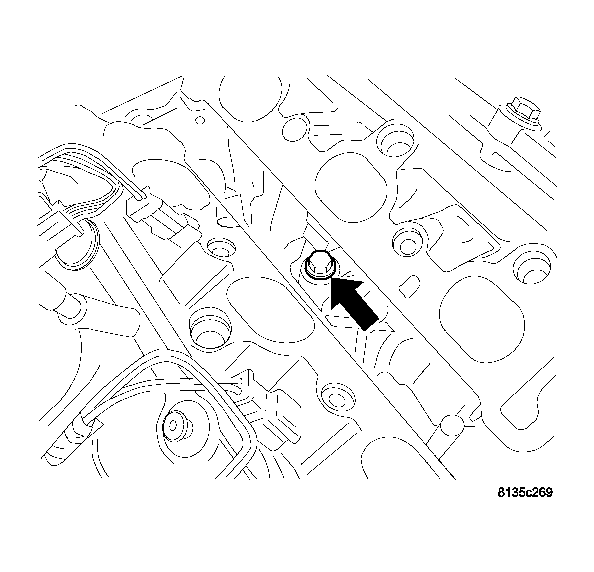

   Fig 2: KNOCK SENSOR LOCATION

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove the knock sensor.
