Ignition System (Service Information): Switch-Ignition: Installation

The ignition switch attaches to the lock cylinder housing on the end opposite the lock cylinder. For ignition switch terminal and circuit identification, refer to appropriate Wiring Diagrams Information in ELECTRICAL.

Fig 1: IGNITION SWITCH ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

1. A tab on the ignition switch indexes to a notch in the lock cylinder housing. Also, a slot in the end of the ignition switch fits over the shaft in the end of the lock cylinder housing. Use the ignition key to rotate the lock cylinder to align the ignition switch with lock cylinder housing.

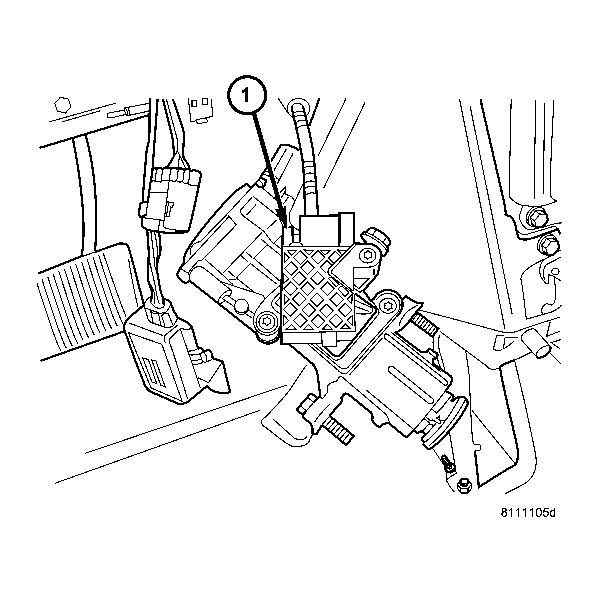

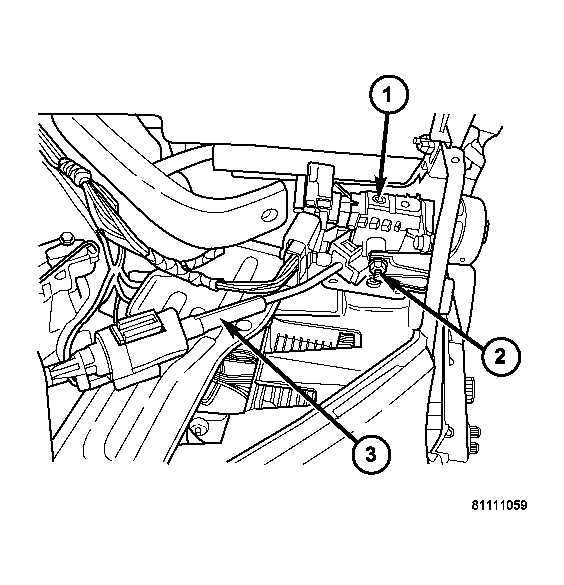

   Fig 2: INTERLOCK CABLE

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - Retaining Tab for Cable

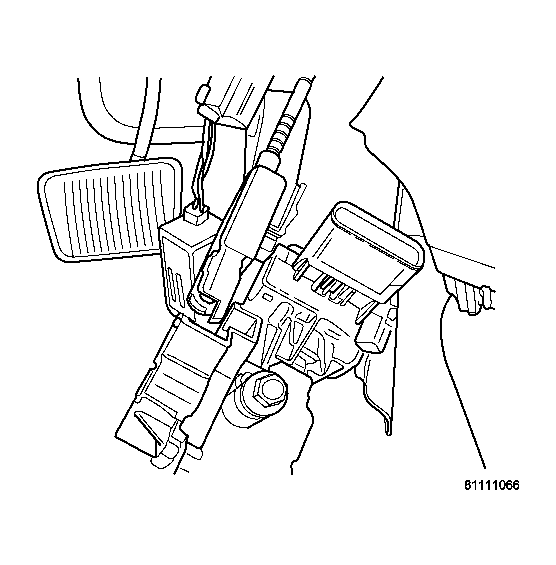

   Fig 3: INTERLOCK CABLE

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install the interlock cable into the switch assembly.

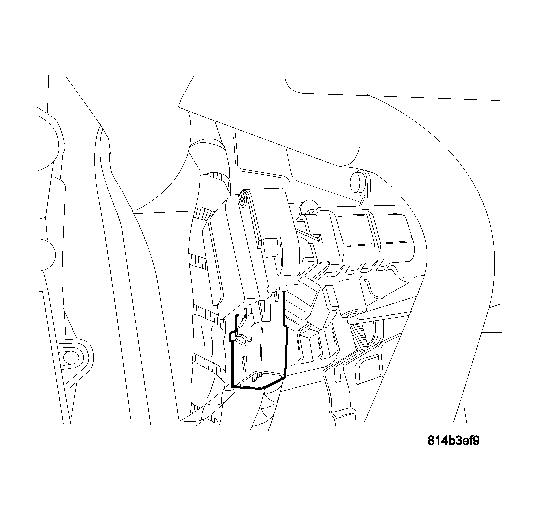

   Fig 4: MODULE CONNECTOR REMOVED

   Courtesy of DAIMLERCHRYSLER CORP.
3. Attach electrical connector to SKREEM Module.

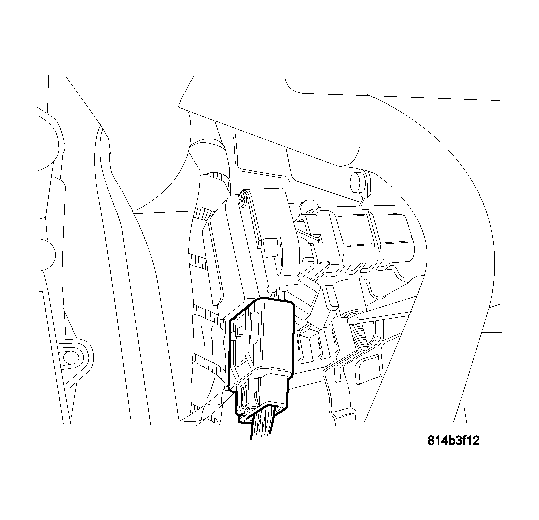

   Fig 5: SWITCH MODULE CONNECTOR REMOVED

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install switch assembly into Instrument Panel.

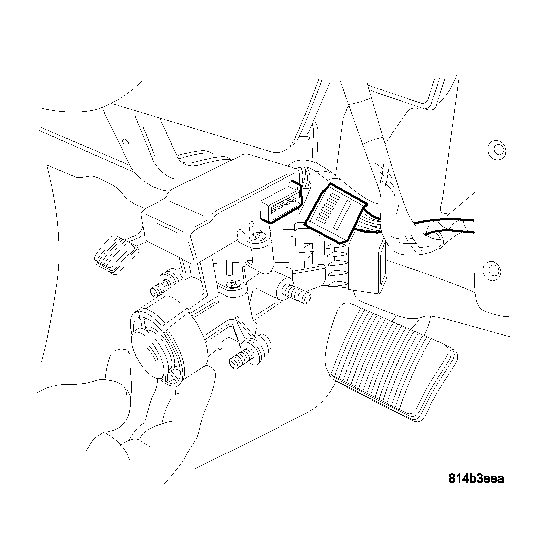

   Fig 6: SWITCH MODULE CONNECTOR CONNECTED

   Courtesy of DAIMLERCHRYSLER CORP.
5. Attach electrical connector to ignition switch.
   Fig 7: SWITCH MOUNTING NUTS

   Courtesy of DAIMLERCHRYSLER CORP.
6. Tighten the 2 mounting nuts.

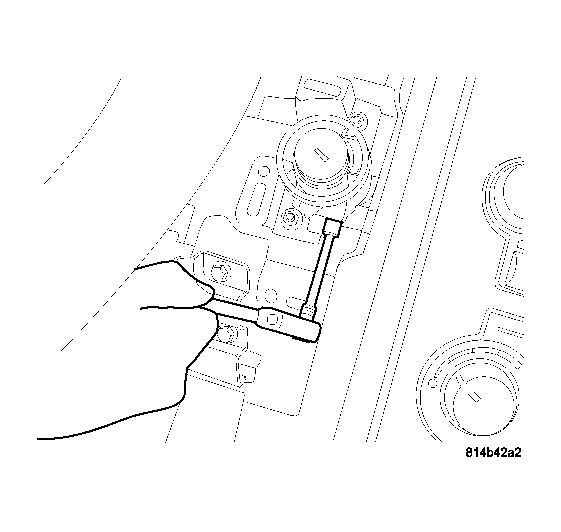

   Fig 8: SWITCH MOUNTING LOWER NUT REMOVAL/INSTALLATION

   Courtesy of DAIMLERCHRYSLER CORP.
7. Tighten the lower mounting nut.

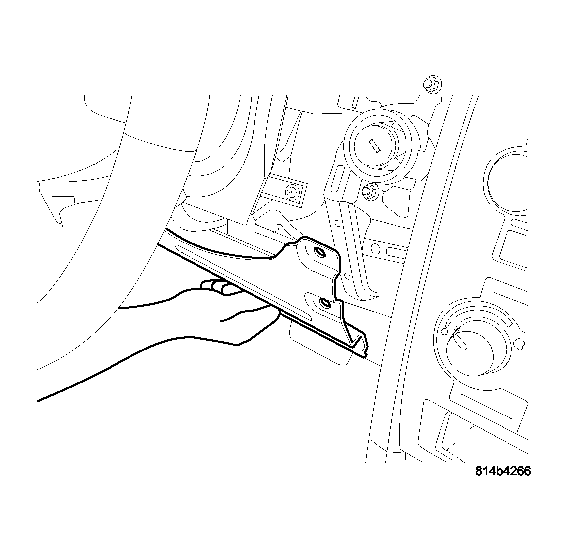

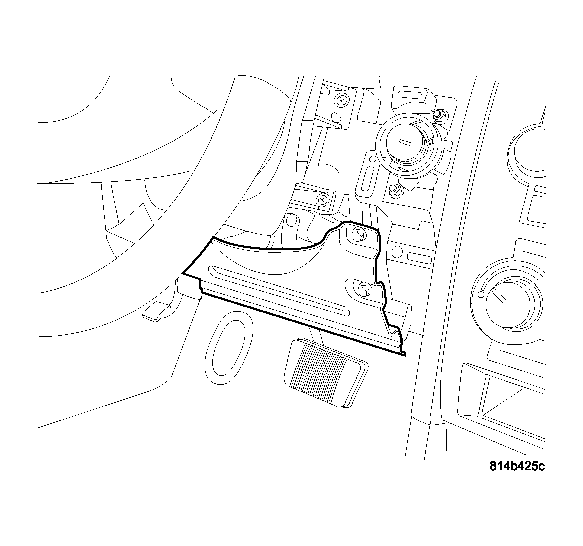

   Fig 9: STEERING COLUMN COVER REMOVAL/INSTALLATION

   Courtesy of DAIMLERCHRYSLER CORP.
8. Install steering column reinforcement.
   Fig 10: STEERING COLUMN COVER

   Courtesy of DAIMLERCHRYSLER CORP.
9. Steering column reinforcement installed.

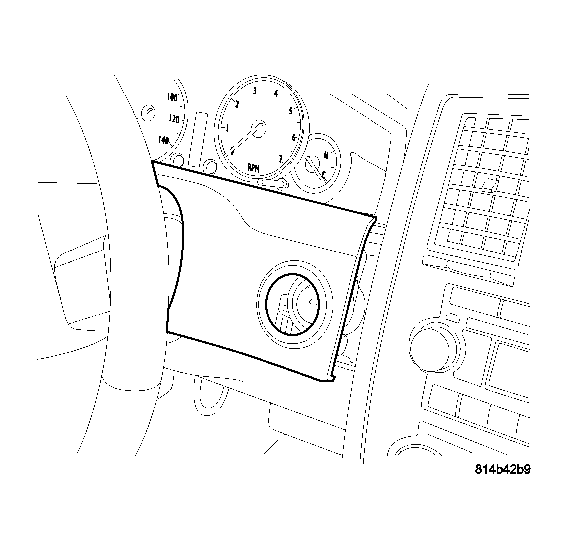

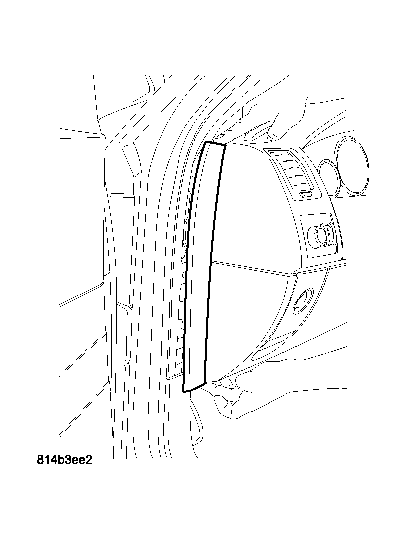

   Fig 11: SIDE TRIM PANEL

   Courtesy of DAIMLERCHRYSLER CORP.
10. Install the Steering column reinforcement cover.
11. Install trim panel end.
    Fig 12: INSTRUMENT PANEL CENTER BEZEL

    Courtesy of DAIMLERCHRYSLER CORP.
12. Install the Bezel cluster.

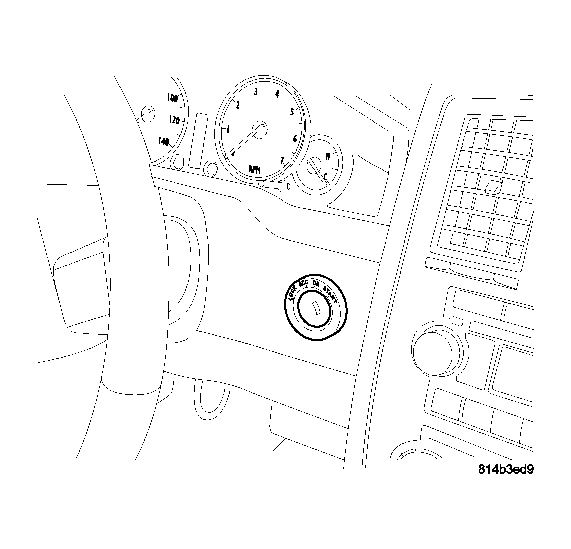

    Fig 13: SWITCH BEZEL RING

    Courtesy of DAIMLERCHRYSLER CORP.
13. Install the ignition switch bezel ring.
14. Connect the negative cable.
