B2120-Ignition Run/Acc/Pad Control Circuit Open
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

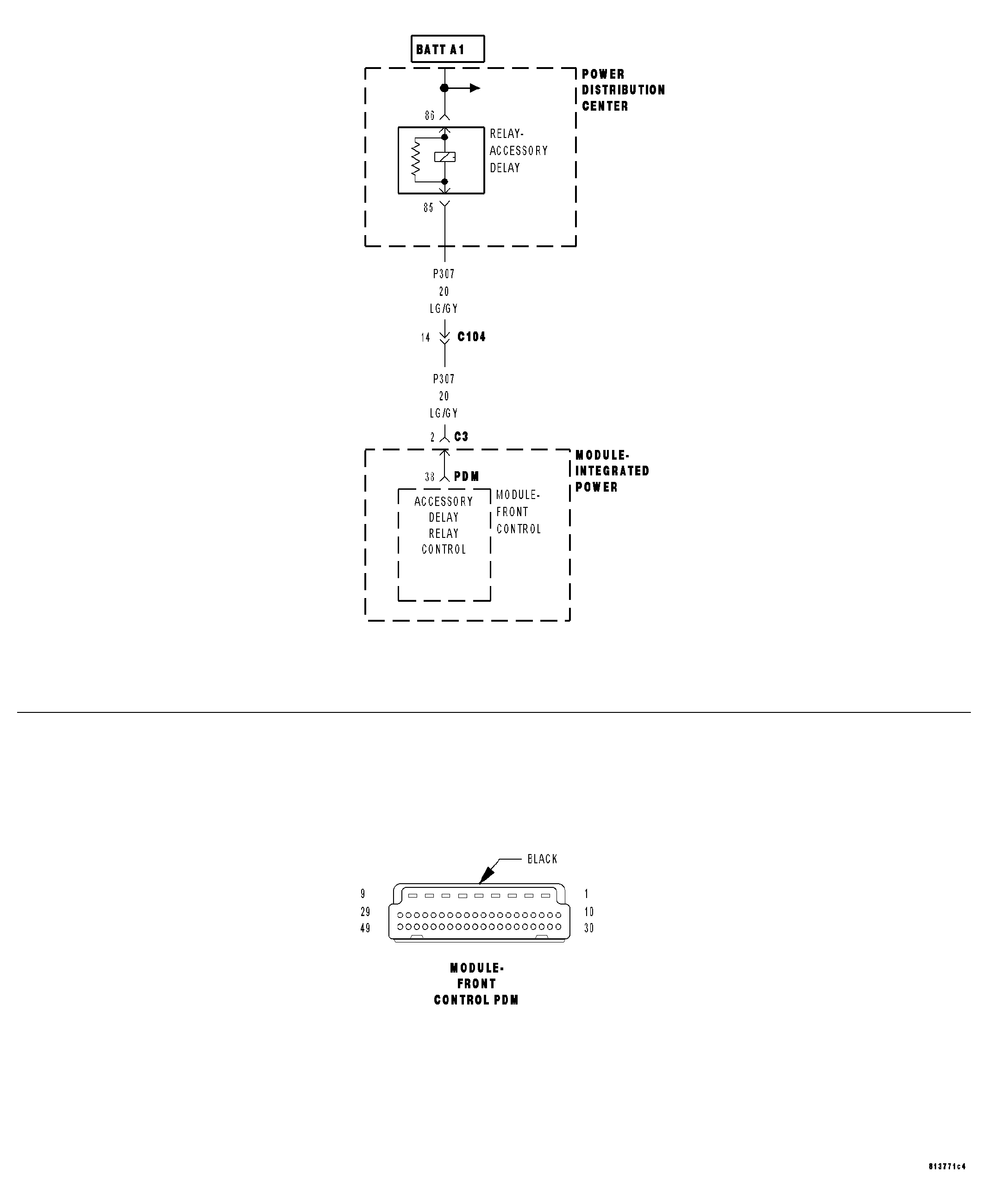

Fig 1: Ignition Run/Acc/Pad Control Circuit Schematic
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
