Circuit Schematic

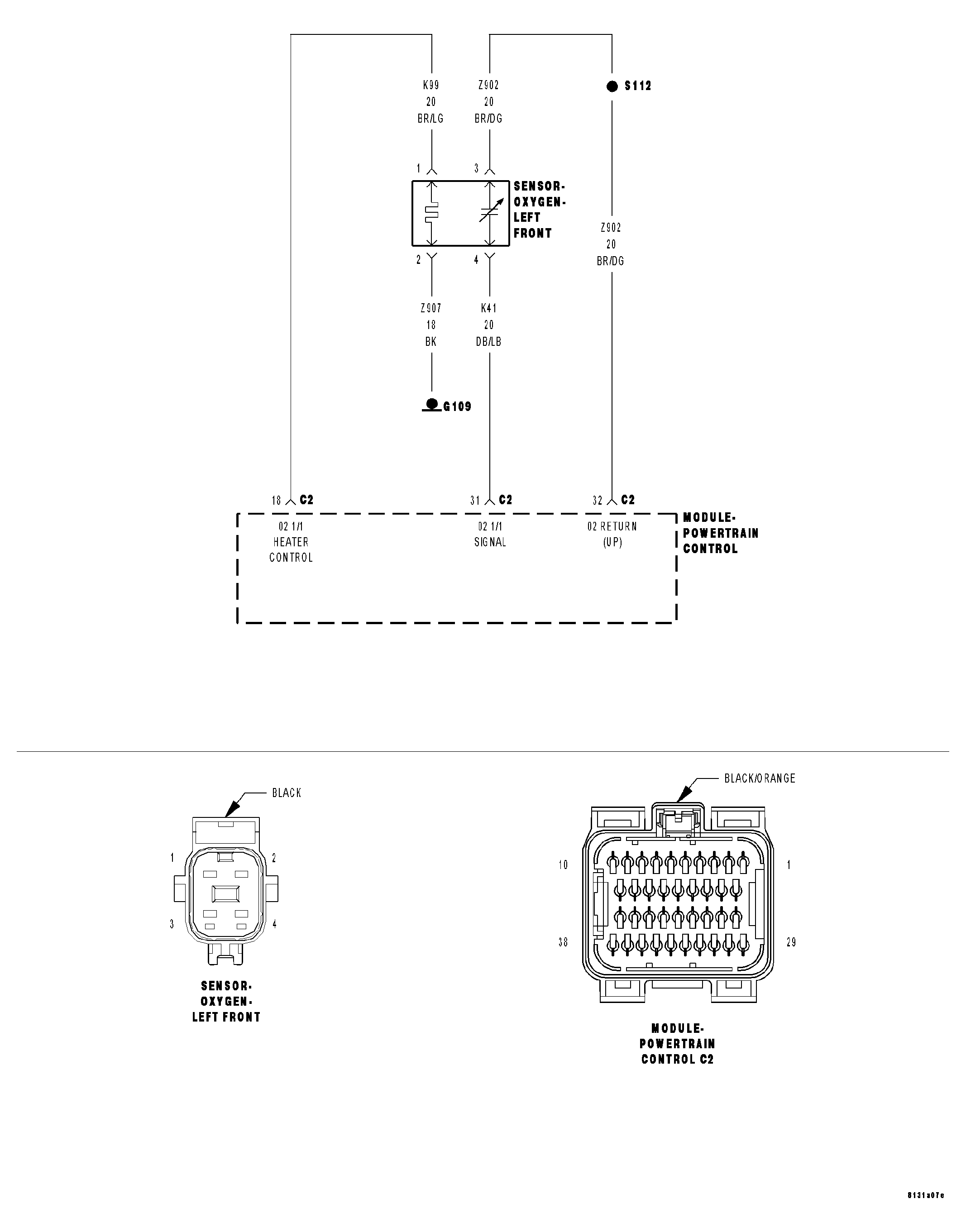

Fig 1: Left Front O2 Sensor Circuit Schematic
GC0014730Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagrams (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
