Assembly-Natural Vac Leak Detection: Installation

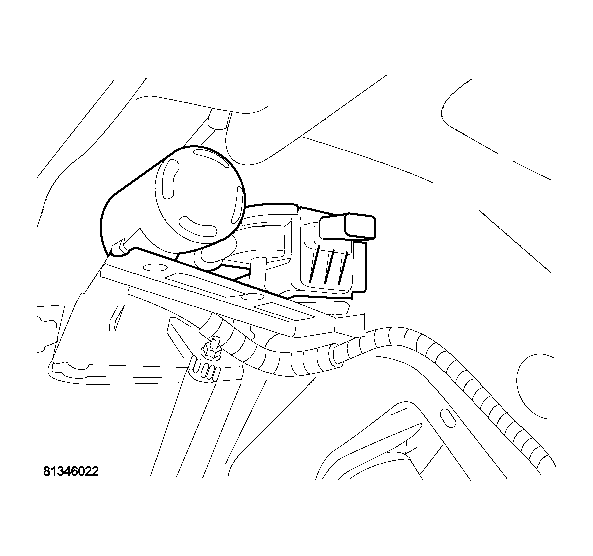

Fig 1: NVLD REMOVED FROM BRACKET

Courtesy of DAIMLERCHRYSLER CORP.

1. Install pump assembly to hoses.

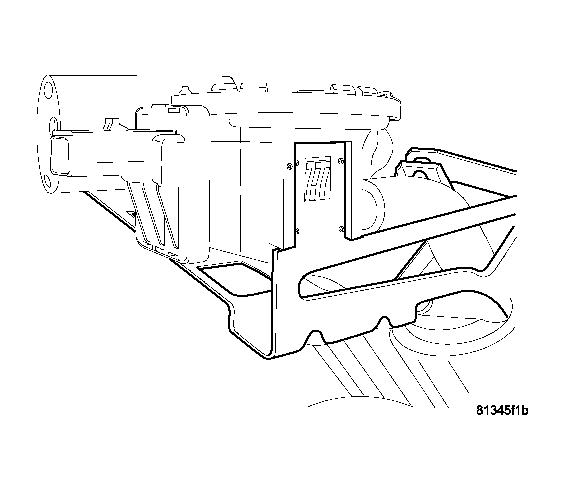

   Fig 2: NVLD ON BRACKET

   Courtesy of DAIMLERCHRYSLER CORP.
2. Install pump assembly to bracket.

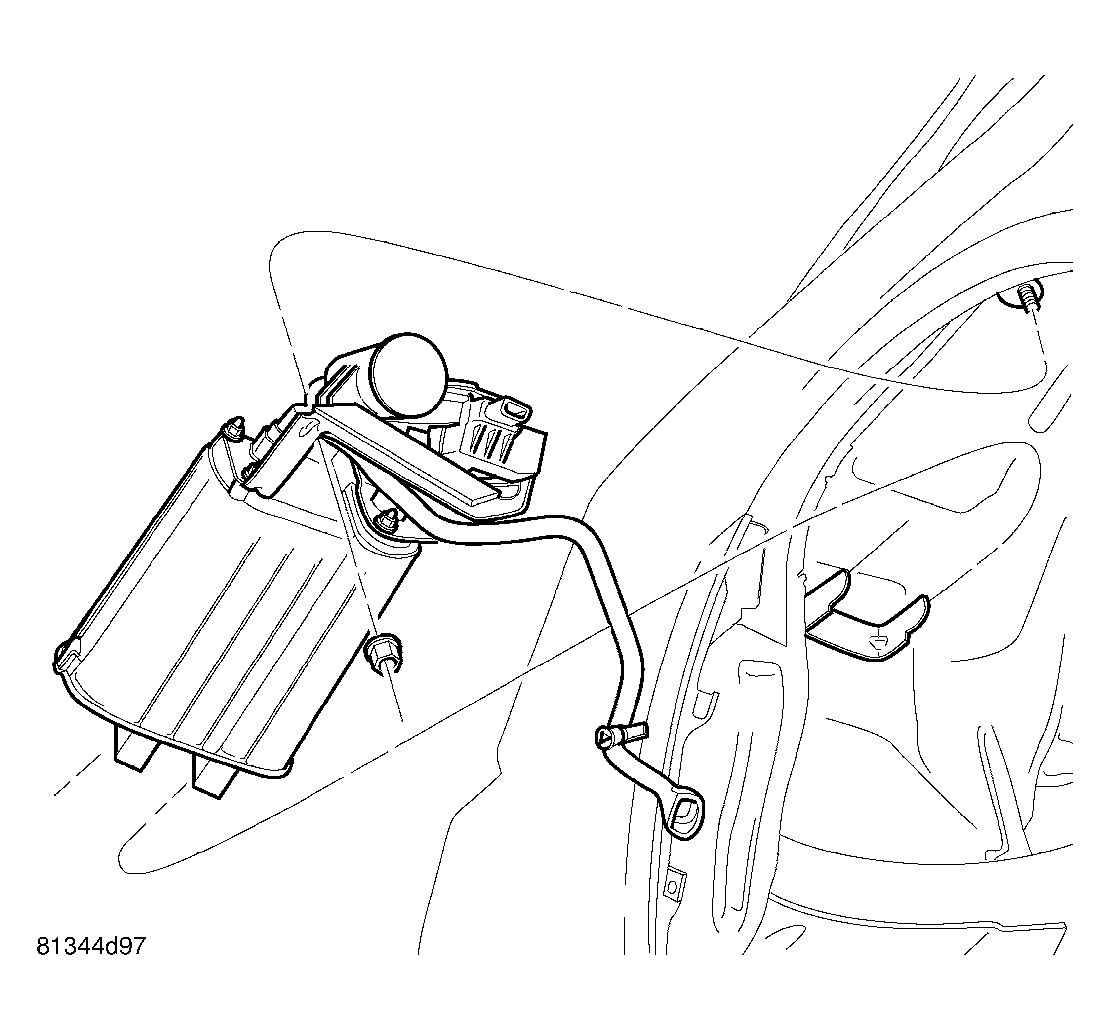

   Fig 3: CANISTER ASSEMBLY EXPLODED

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install vapor canister and pump assembly to vehicle.

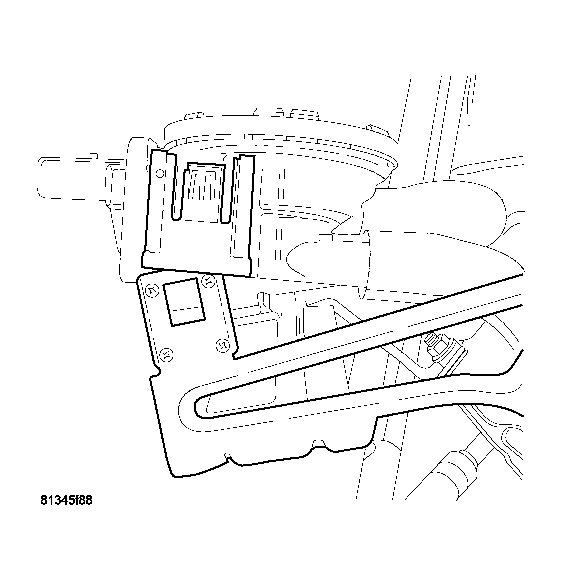

   Fig 4: NVLD AND FILTER

   Courtesy of DAIMLERCHRYSLER CORP.
4. Install inner splash shield.
5. Install right rear tire.
6. Lower vehicle.
7. Connect negative battery cable.
