Front Seat Belt Height Adjuster: Installation

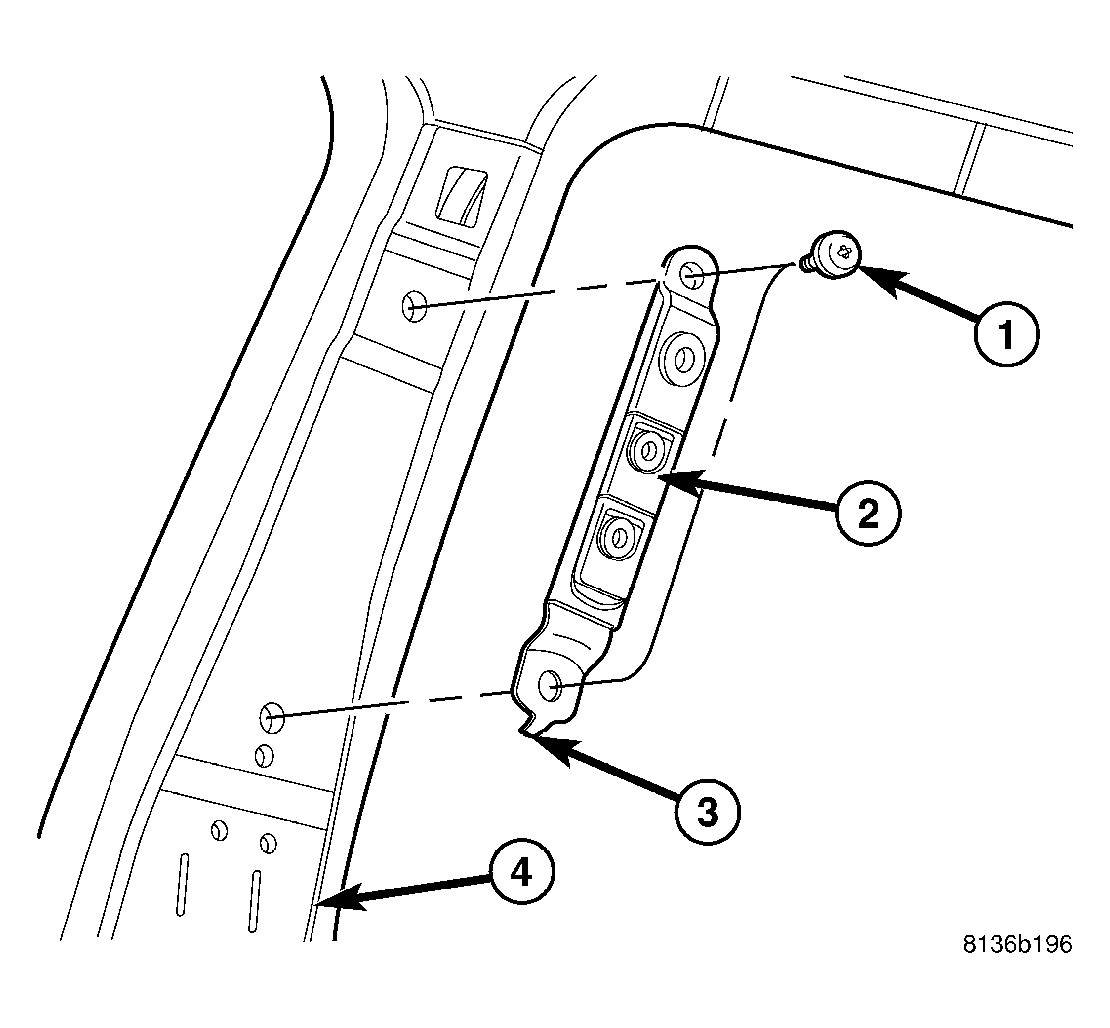

Fig 1: Seat Belt Height Adjuster

Courtesy of DAIMLERCHRYSLER CORP.

Position height adjuster making sure that indexing tab is in the proper hole.
Install the two mounting bolts (1). Torque bolts to 32 N.m (24 ft. lbs.).

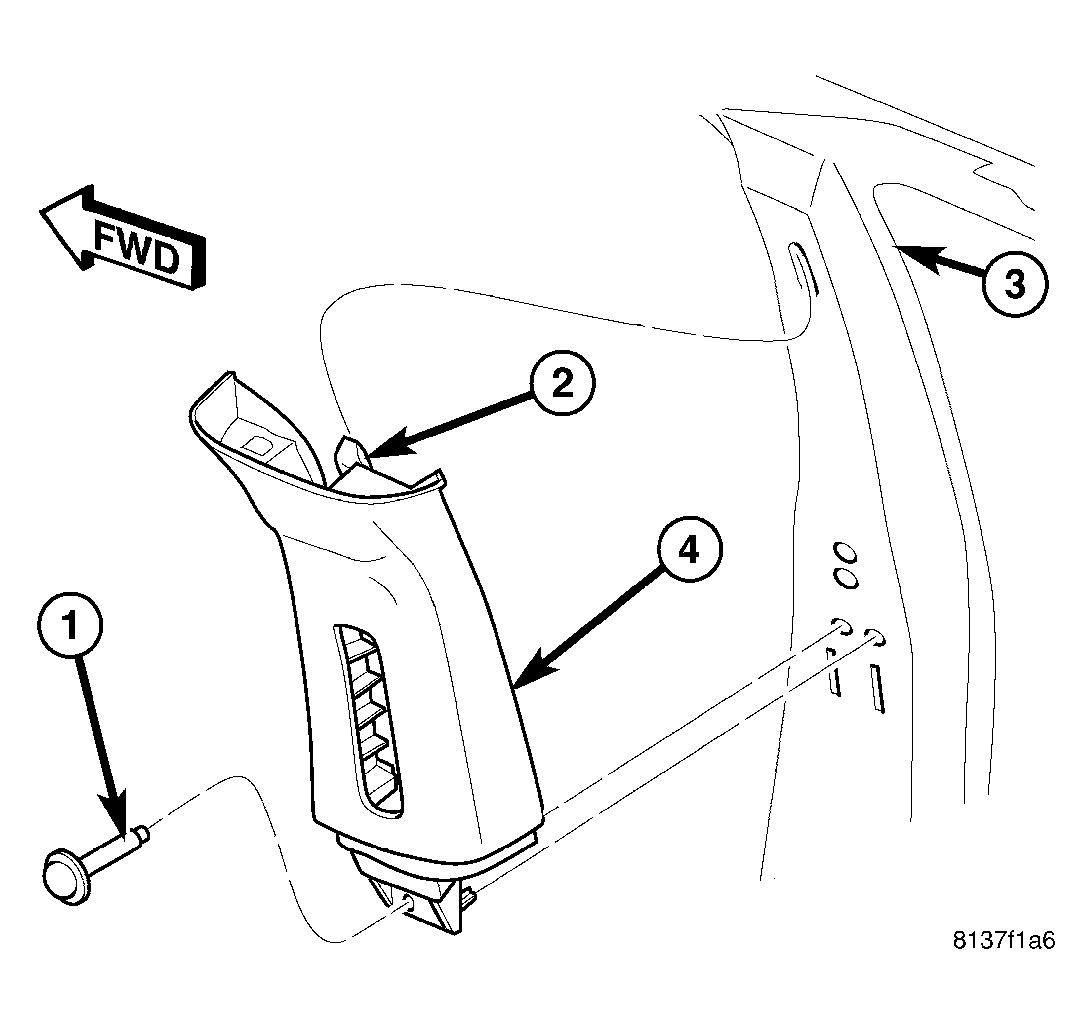

Fig 2: B-Pillar Trim
Courtesy of DAIMLERCHRYSLER CORP.
Install the upper B-pillar trim (Refer to BODY/INTERIOR/B-PILLAR TRIM - INSTALLATION) .

Fig 3: Trim Cover
Courtesy of DAIMLERCHRYSLER CORP.
Position the upper turning loop (3) and install the retaining bolt (4). Torque bolt to 40 N.m (30 ft. lbs.).
Install the upper turning loop (3) trim cover (2).
