Occupant Classification Module: Installation
WARNING:
Never replace both the Occupant Restraint Controller (ORC) and the Occupant Classification Module (OCM) at the same time. If both require replacement, replace one, then perform the (Refer to AIRBAG SYSTEM ).
before replacing the other. Both the ORC and the OCM store Occupant Classification System (OCS) calibration data, which they transfer to one another when one of them is replaced. If both are replaced at the same time, an irreversible fault will be set in both modules and the OCS may malfunction and cause personal injury or death.

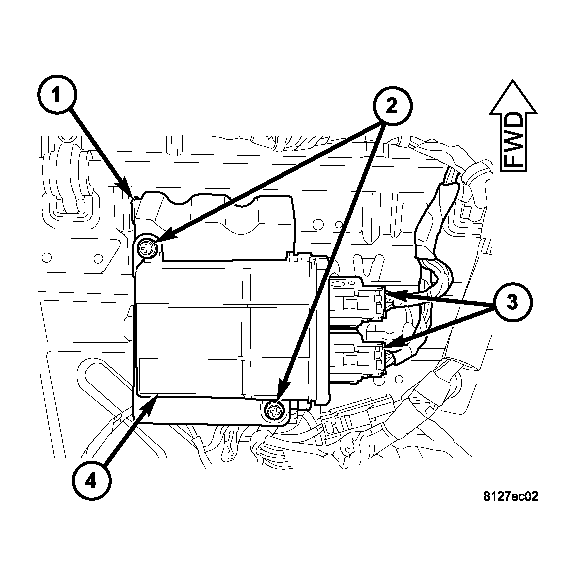

- Carefully position the Occupant Classification Module (OCM) (4) to the OCM bracket (1).
- Install and tighten the two screws (2) that secure the OCM to the OCM bracket. Tighten the screws to 2 N.m (20 in. lbs.).
- Connect the two harness connectors (3) to the OCM.
WARNING:
Do not connect the battery negative cable (Refer to AIRBAG SYSTEM ).
. Personal injury or death may result if the system test is not performed first.
WARNING:
Following successful completion of the Airbag System test procedure, the Occupant Classification System Verification Test must be done using a scan tool and the appropriate diagnostic information.
