Seat Track Position Sensor: Installation

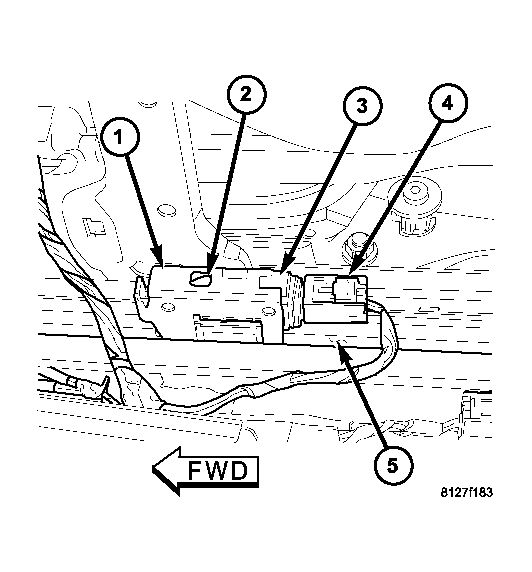

- Position the seat track position sensor (3) on the end of the bracket (1) located on the lower outboard seat track (5).
- Push the sensor firmly into the bracket until the snap feature (2) locks into place.
- Connect the electrical connector (4) to the sensor.
WARNING:
Do not connect the battery negative cable (Refer to AIRBAG SYSTEM ).
. Personal injury or death may result if the system test is not performed first.
WARNING:
Following successful completion of the Airbag System test procedure, the Occupant Classification System Verification Test must be done using a scan tool and the appropriate diagnostic information.
