Power Front Passenger Seat

NOTE: If the vehicle is equipped with a power front passenger seat, to remove the adjuster from the riser it is necessary to have battery power to move the seat forward and rearward to access the mounting bolts.

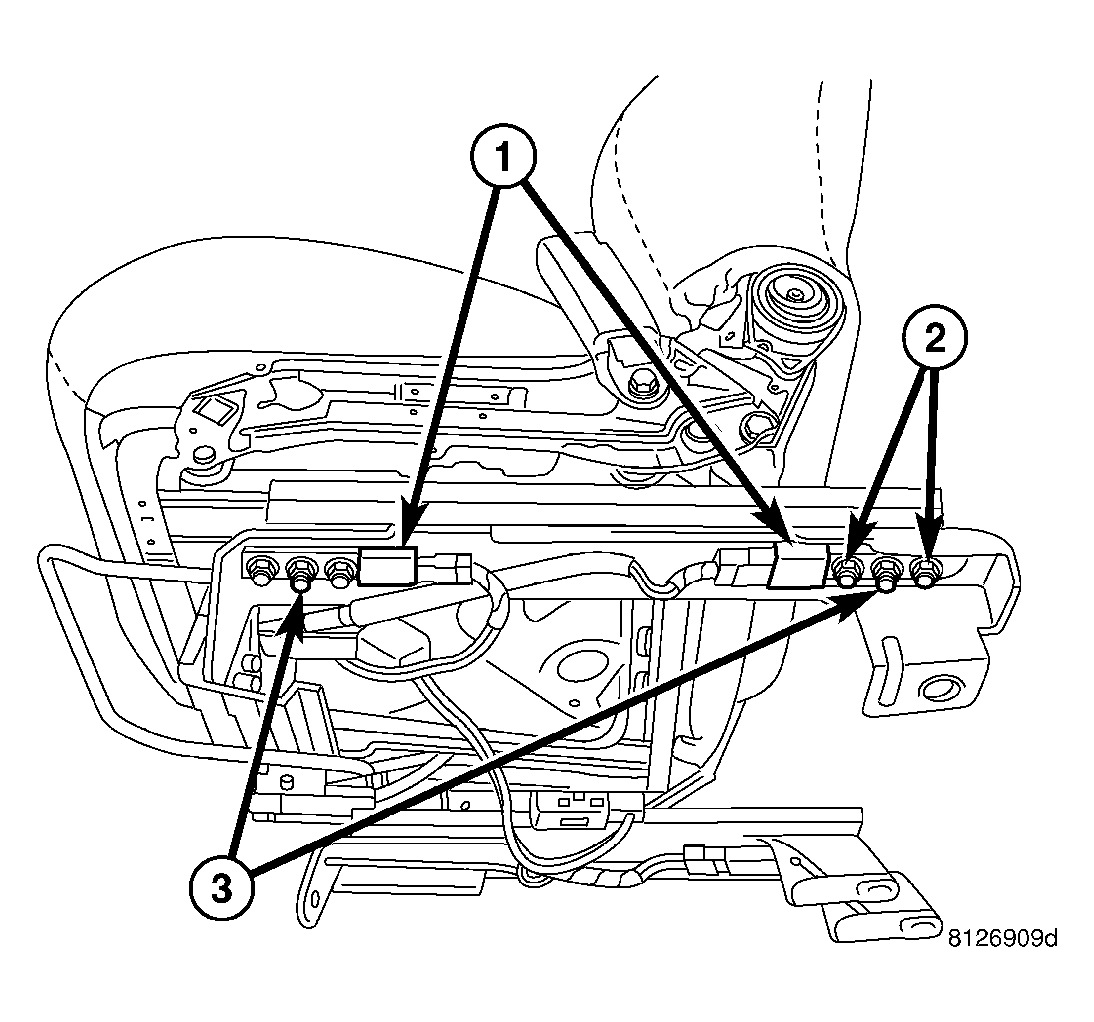

Fig 1: Seat Weight Sensor

Courtesy of DAIMLERCHRYSLER CORP.

Position the seat weight sensor onto passenger front seat riser.
Install the two nuts (2) holding the seat weight sensor (4) to the seat riser. Torque nuts to 40 N.m (30 ft. lbs.).
Connect the one electrical connector (1).

Fig 2: PASS SEAT MANUAL TRACK
Courtesy of DAIMLERCHRYSLER CORP.
Install the adjuster to riser mounting bolt (3). Torque nuts to 45 N.m (33 ft. lbs.). For additional information (Refer to BODY/SEATS/SEAT RISER - INSTALLATION) .

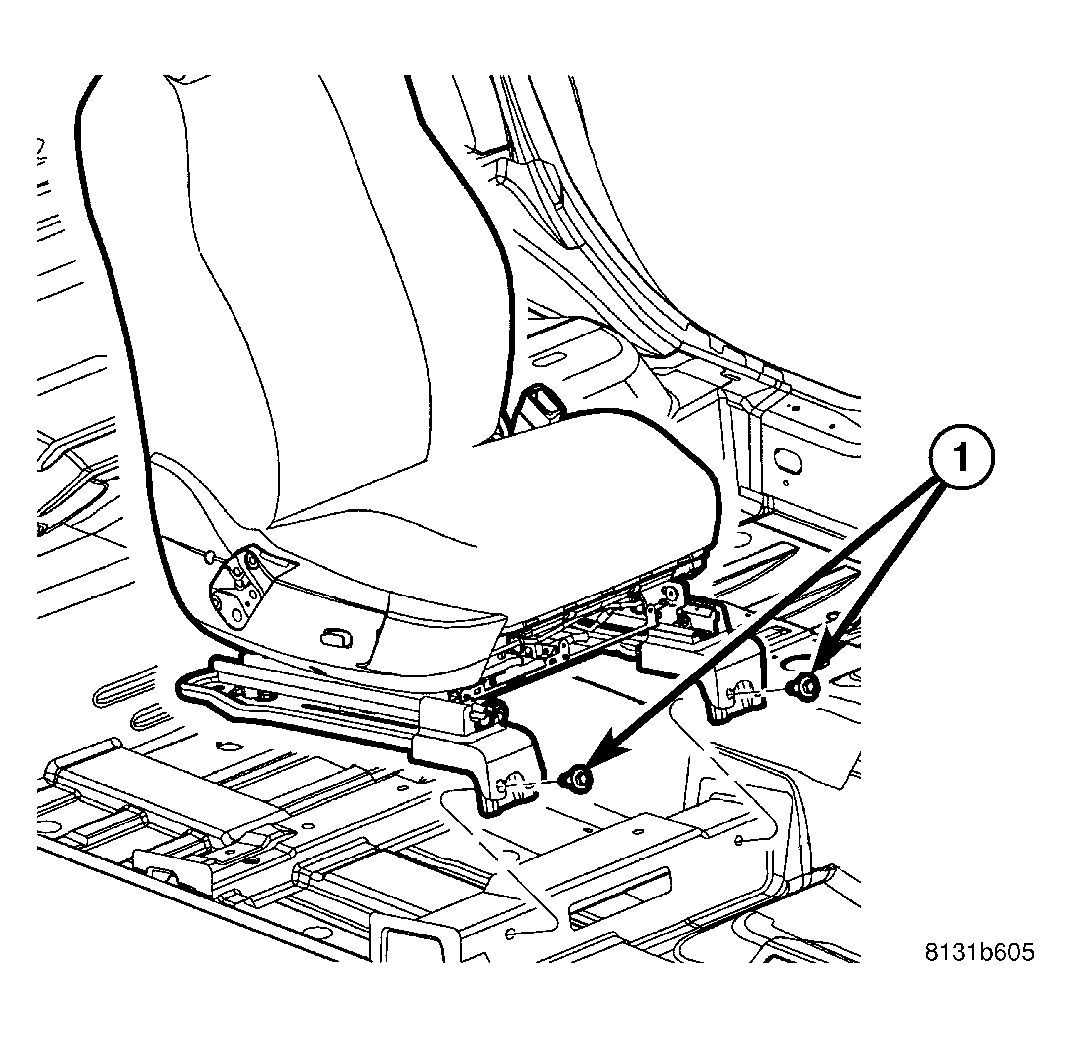

Fig 3: Removing/Installing Front Passenger Seat
Courtesy of DAIMLERCHRYSLER CORP.
Install the front passenger seat bolts (Refer to BODY/SEATS/SEAT - INSTALLATION) .

WARNING: Do not connect the battery negative cable (Refer to AIRBAG SYSTEM ). . Personal injury or death may result if the system test is not performed first.

WARNING: Following successful completion of the Airbag System test procedure, the Occupant Classification System Verification Test must be done using a scan tool and the appropriate diagnostic information.
