Steering Angle Sensor: Removal

Fig 1: Identifying Retension Tabs

Courtesy of DAIMLERCHRYSLER CORP.

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, DRIVER AIRBAG, PASSENGER AIRBAG, SIDE IMPACT SENSOR, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE SUPPLEMENTAL RESTRAINT SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

NOTE: Before starting this procedure, be certain to turn the steering wheel until the front wheels are in the straight-ahead position.

Place the front wheels in the straight ahead position.
Remove the clockspring from the steering column. (Refer to ELECTRICAL/RESTRAINTS/CLOCKSPRING - REMOVAL) .
Release the retension tabs (1) on the steering angle sensor.

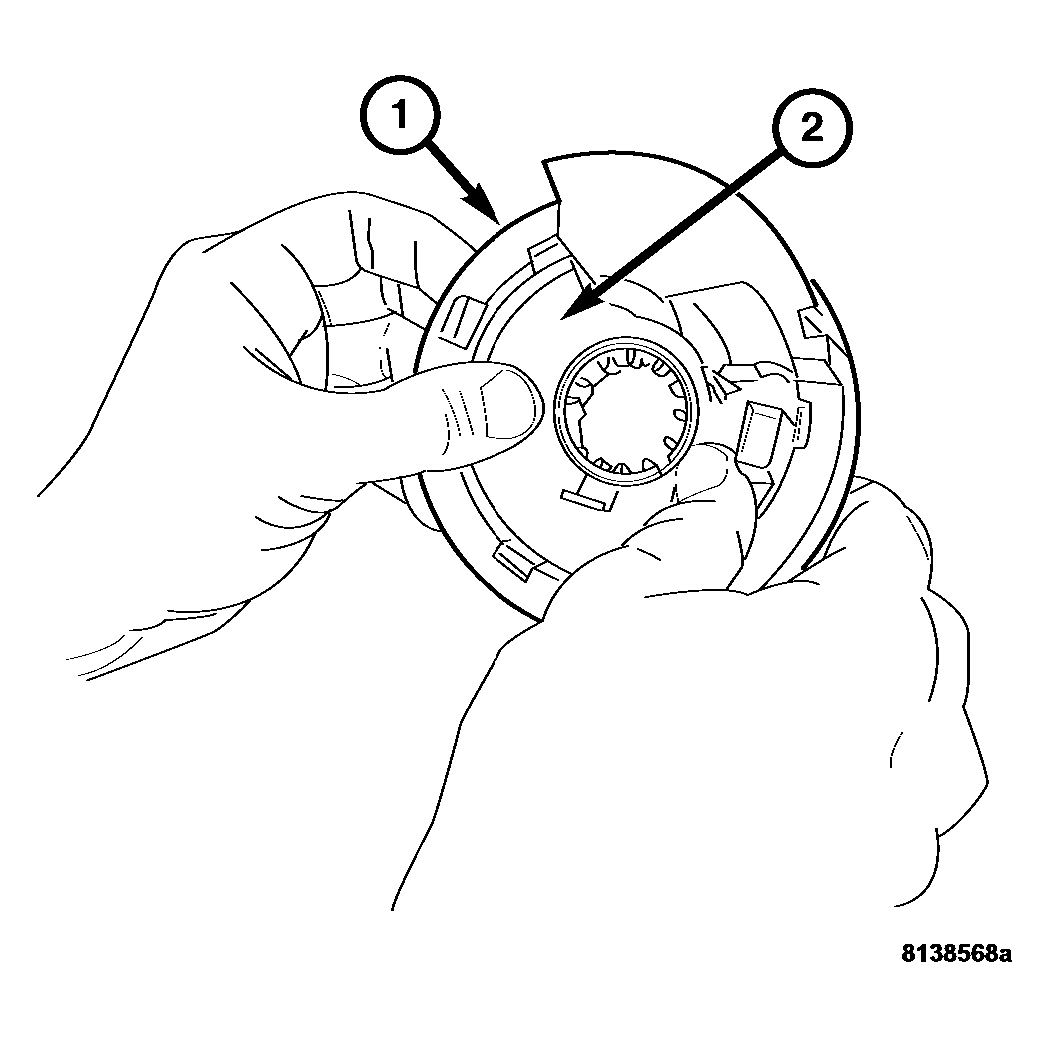

Fig 2: Separating Clockspring From Steering Angle Sensor
Courtesy of DAIMLERCHRYSLER CORP.
With the tabs released, separate the clockspring (2) from the steering angle sensor (1).
