Engine Fuse Block: Removal

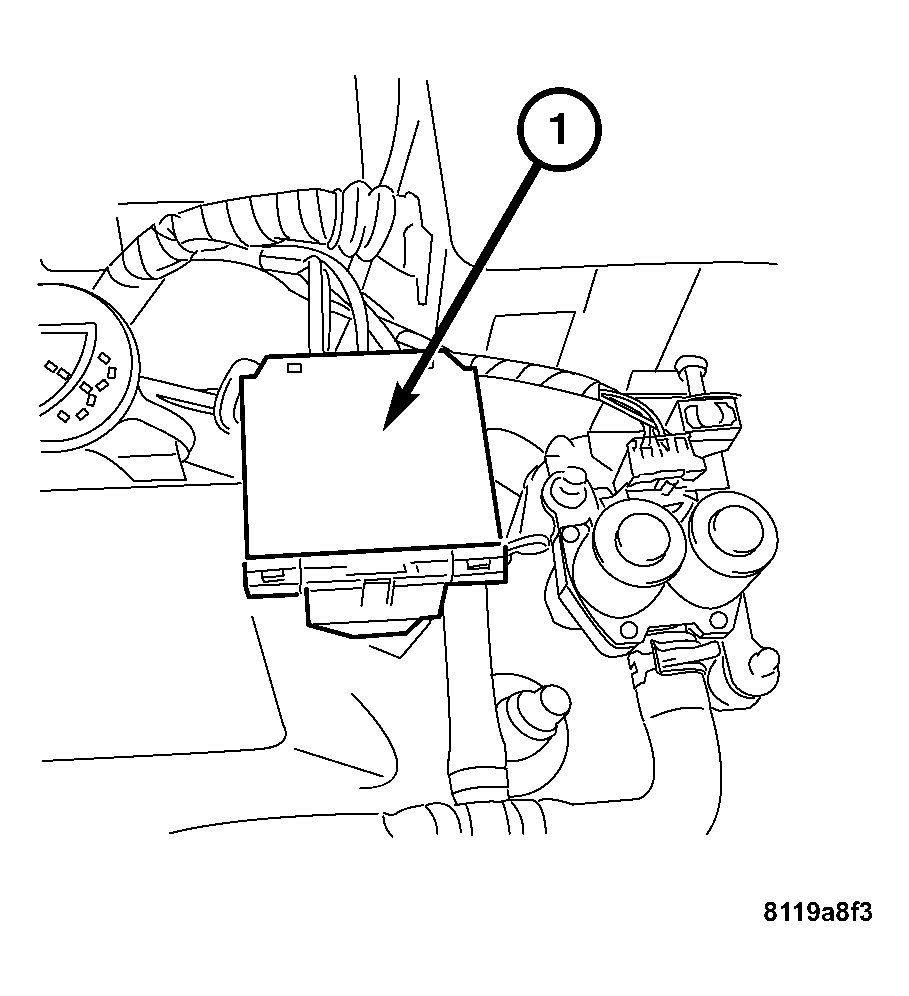

Fig 1: Identifying Engine Fuse Block Lid
GC0035890Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Open the lid (1) of the engine fuse block.

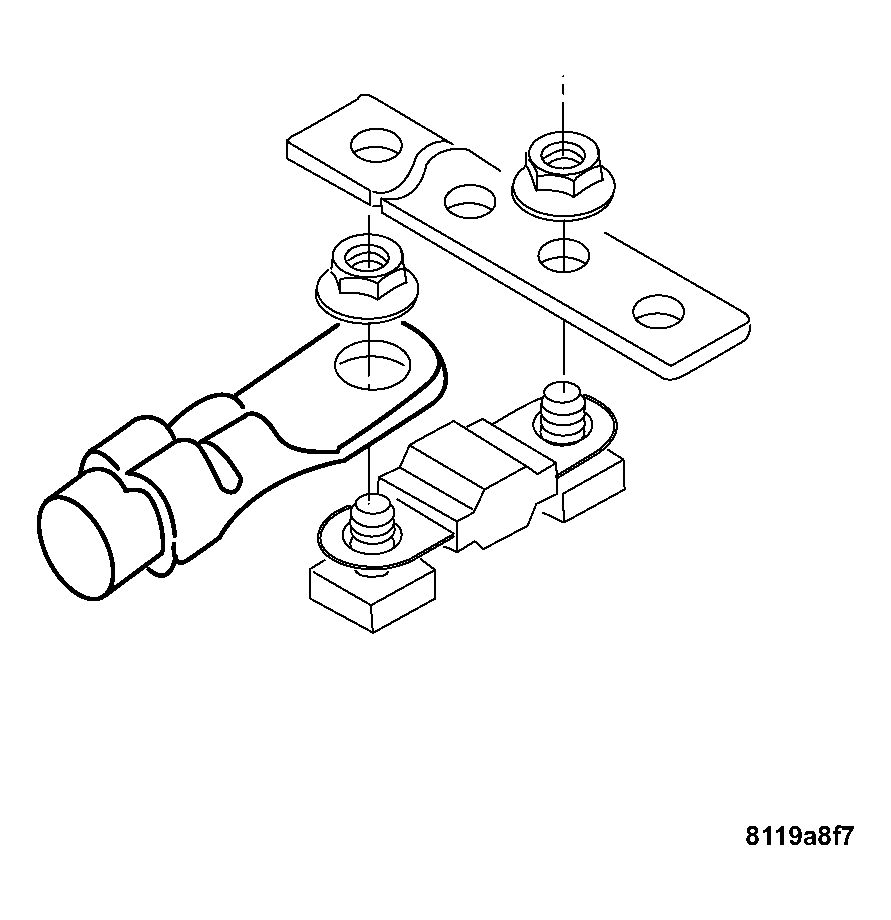

    Fig 2: Removing/Installing Engine Fuse Block
    GC0035891Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the nuts and the electrical leads to the engine fuse block.
  4. Close the lid to the engine fuse block.
  5. Push the tab at the front of the engine fuse block box and remove it from the vehicle.
