Charging System: Generator: Removal

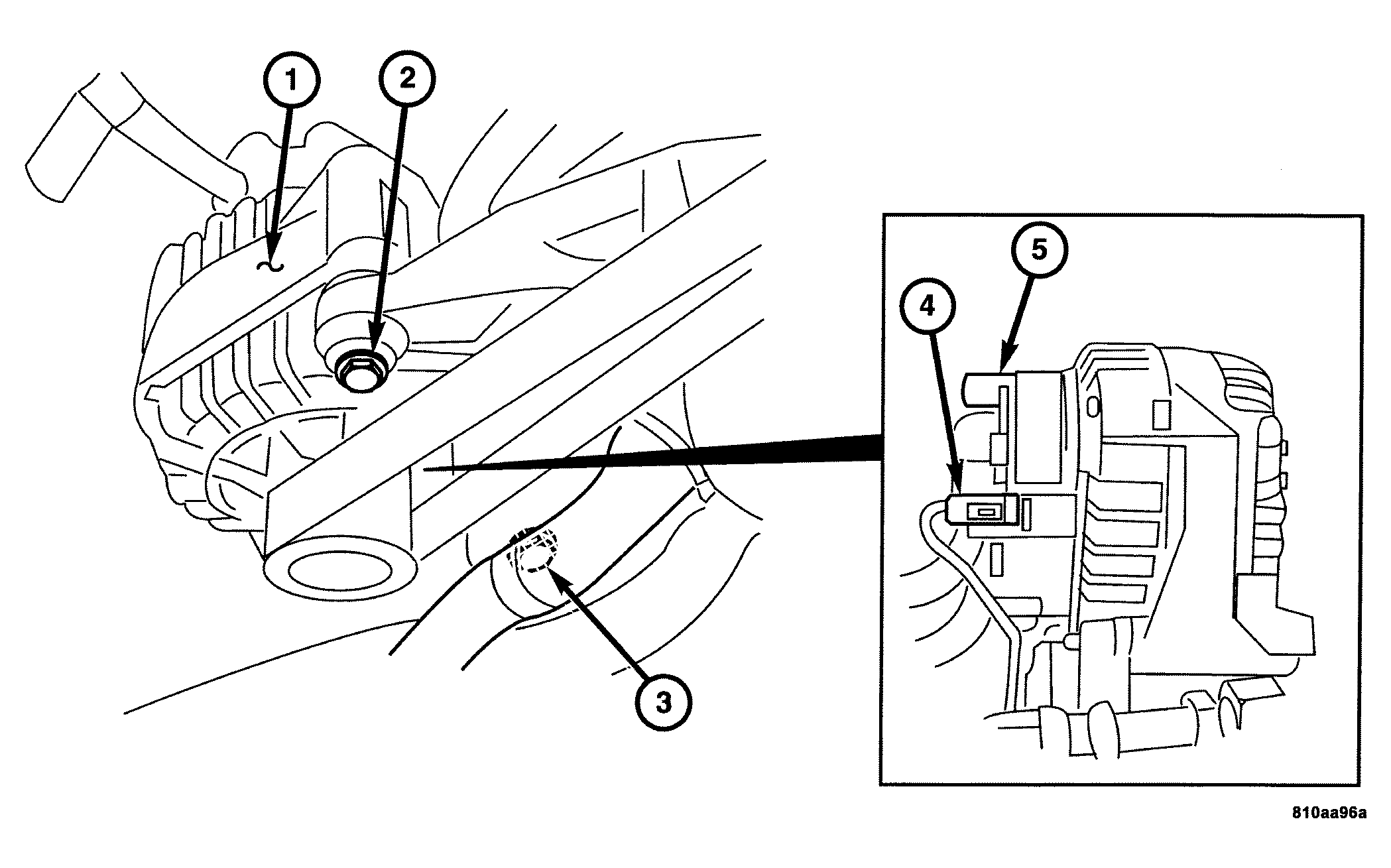

| 1 - GENERATOR |
| 2 - UPPER GENERATOR BOLT |
| 3 - LOWER GENERATOR BOLT |
| 4 - ELECTRICAL CONNECTOR |
| 5 - GENERATOR B+ PROTECTIVE PLASTIC CAP |
- Disconnect the negative battery cable.
- Remove the right side air inlet tube.CAUTION: The accessory drive belt tensioner pulley is spring loaded and can cause damage to hands and fingers if allowed to spring back.
- Remove the accessory drive belt from the generator pulley. (Refer to COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL)
.
- Pull the tensioning pulley in a counter clockwise direction.
- Lock the tensioning pulley with a pin or slowly release the pulley after the belt is free from the area.
- Remove the upper generator bolt (2).
- Remove the lower generator bolt (3) and reposition the generator to access the generator harness connectors.
- Remove the protective plastic cap from the generator B+ cable retaining nut (5).
- Disconnect the generator B+ cable and the generator harness connectors (4) from the rear of the generator.
- Remove the generator (1).
