Starter Motor: Installation

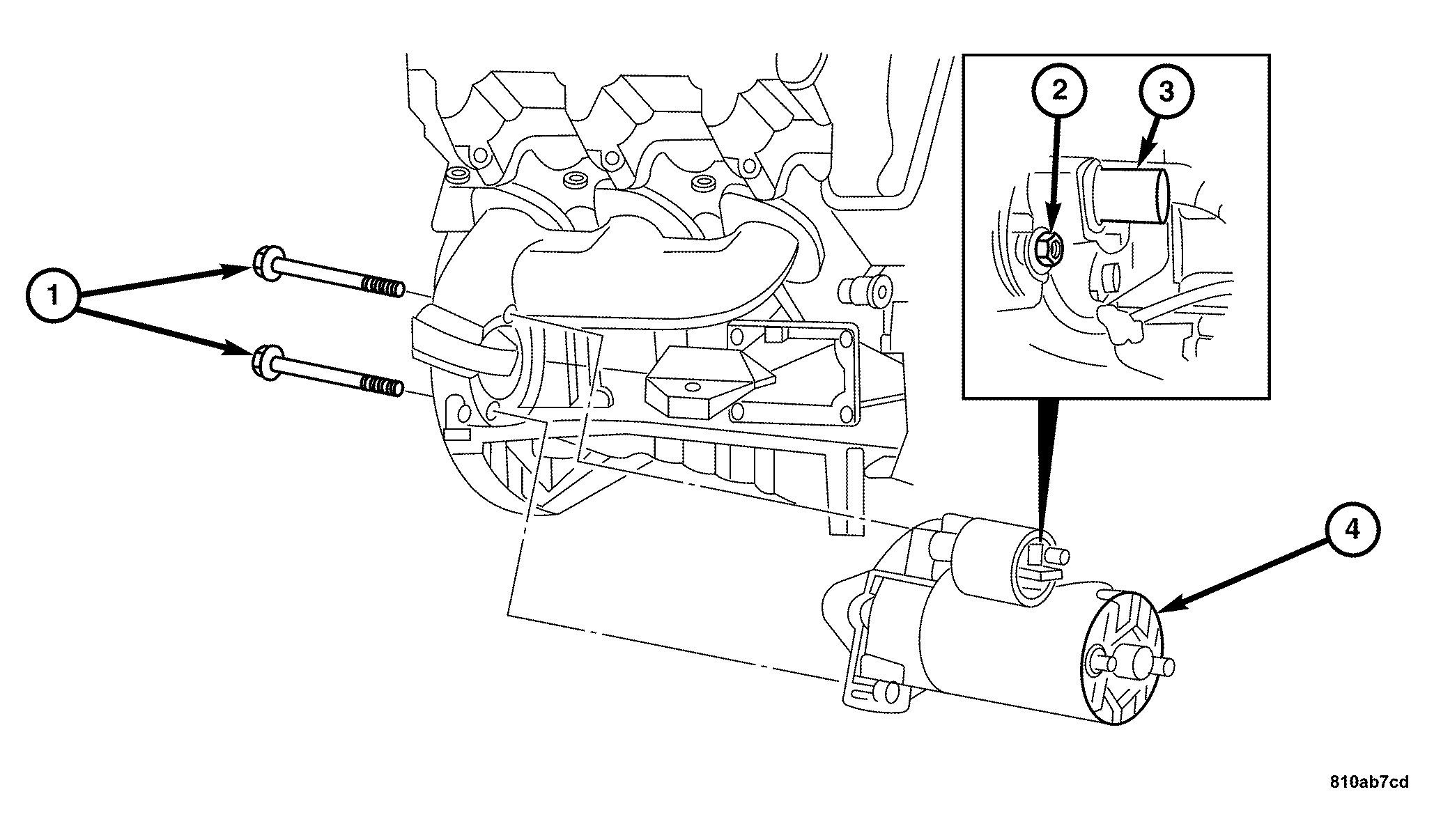

| 1 - STARTER BOLTS |
| 2 - STARTER GROUND CABLE NUT |
| 3 - STARTER POSITIVE CABLE PROTECTIVE PLASTIC CAP |
| 4 - STARTER |
- Install the starter (4).
- Connect the starter cable and the ground cable with the nuts. Tighten the starter positive cable nut to 14 N.m (10 ft. lbs.). Tighten the starter ground cable nut (2) to 6 N.m (52 in. lbs.)
- Install the starter positive cable protective plastic cap (3).
- Install the starter bolts (1). Tighten to 42 N.m (31 ft. lbs.).
- Install the right side exhaust pipe. (Refer to EXHAUST SYSTEM/CATALYTIC CONVERTER - INSTALLATION) .
- Connect the right side O2 sensor.
- Install the lower engine panel.
- Lower the vehicle.
- Connect the negative battery cable.
