Installation - SRT

Fig 1: Removing/Installing Throttle Body
GC0032356Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect the PCV hose (3) to the throttle body.
  2. Install the throttle body and gasket to engine.
  3. Install the throttle body retaining bolts (2) and the PCV hose bracket. Tighten to 20 N.m (15 ft. lbs.).
  4. Connect the throttle body harness connector (1).

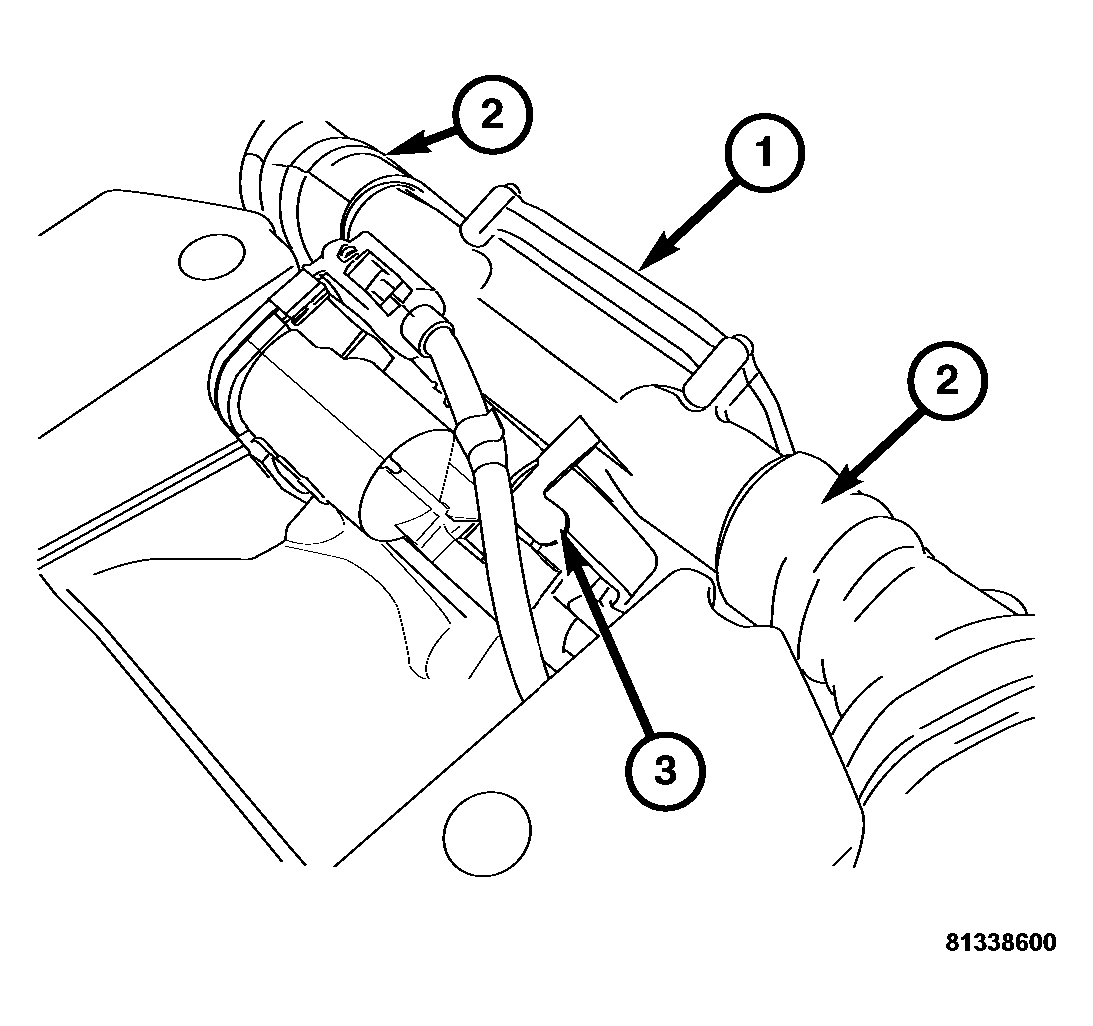

    Fig 2: Identifying Throttle Body Inlet Tube, Upper Air Cleaner Housing & Tubes, & Inlet Tube Lever
    GC0032365Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the throttle body inlet tube (1) by installing the upper air cleaner housing and tubes (2), then install the inlet tube to the throttle body by pushing the throttle body inlet tube in firmly on the throttle body, ensuring the inlet tube lever (3) is attached.
  6. Connect the negative battery cable.
