Schematics And Diagrams

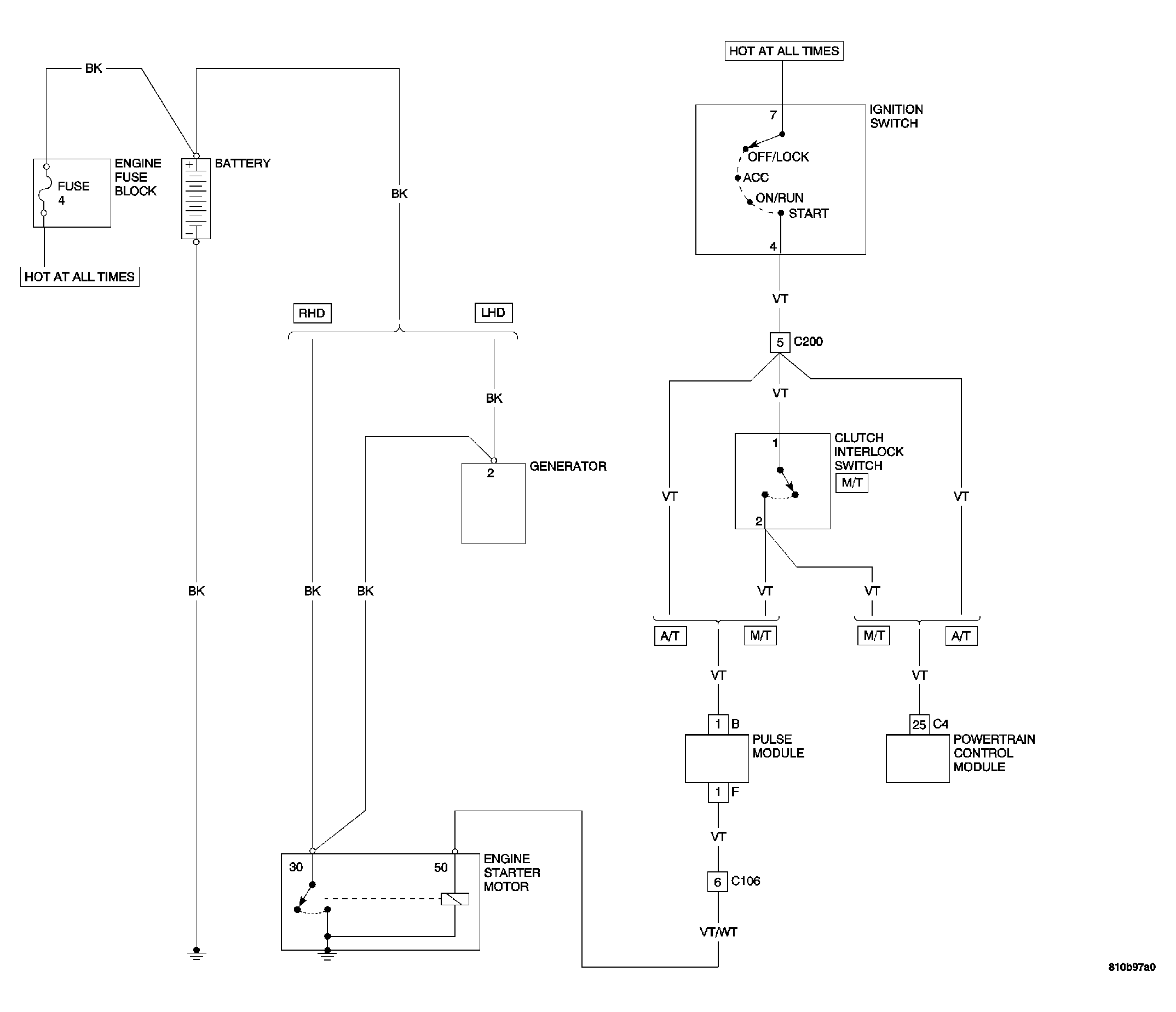

Fig 1: STARTING SYSTEM CIRCUIT DIAGRAM
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
