Accelerator Pedal: Removal: Notes

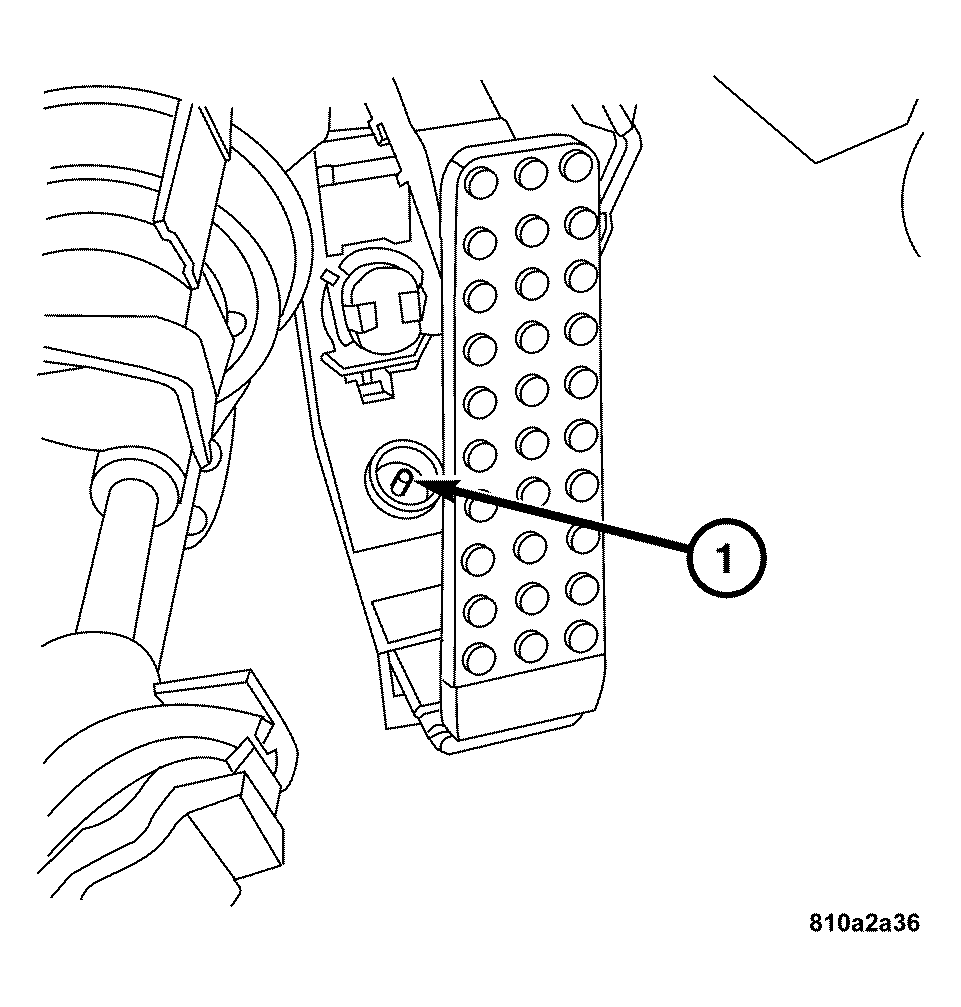

Fig 1: Removing/Installing Accelerator Pedal-To-Floor Nut
GC0032333Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Remove the lower accelerator nut cover (1) and the nut.

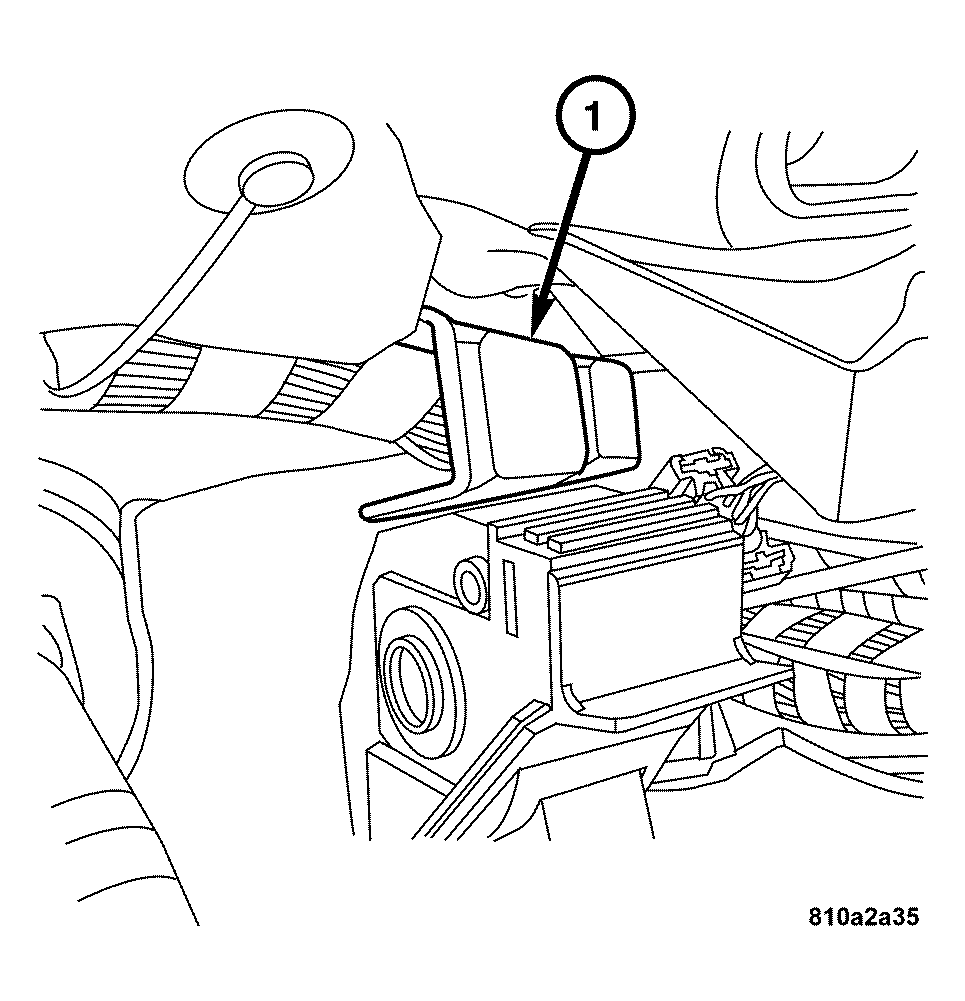

    Fig 2: Identifying Nut
    GC0032332Courtesy of DAIMLERCHRYSLER CORP.
  3. Lift the accelerator pedal off of the welded stud and out of the bracket (1).
  4. Disconnect the accelerator pedal harness connector from the accelerator pedal.
