Crankshaft Position Sensor: Description

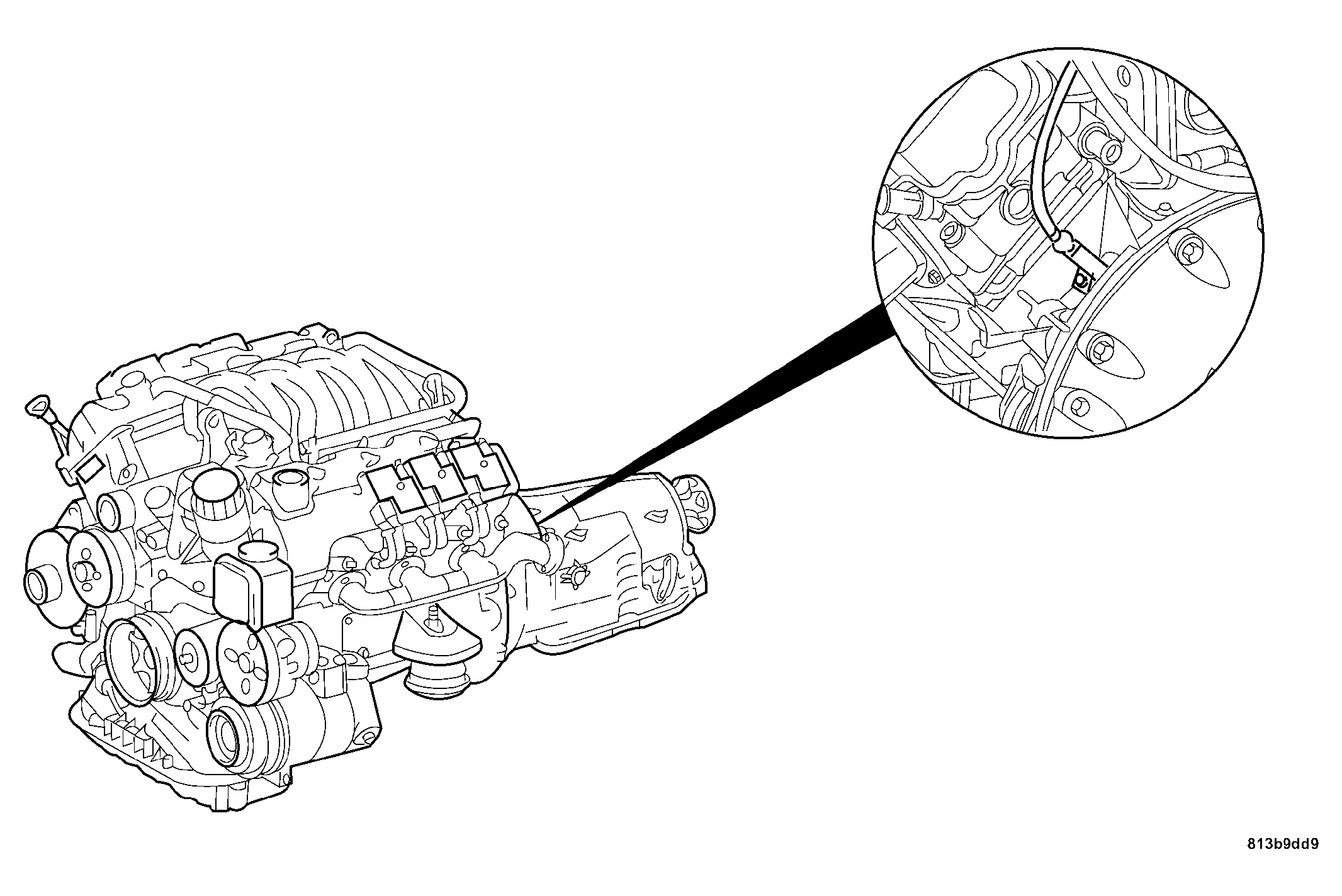

Fig 1: Locating Crankshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The Crankshaft Position Sensor (1) is located on the left side of the engine just forward of the transmission housing. The bottom of the sensor is positioned above the flywheel.

The sensor is a hall effect device combined with an internal magnet.
