Fuel Injector: Installation

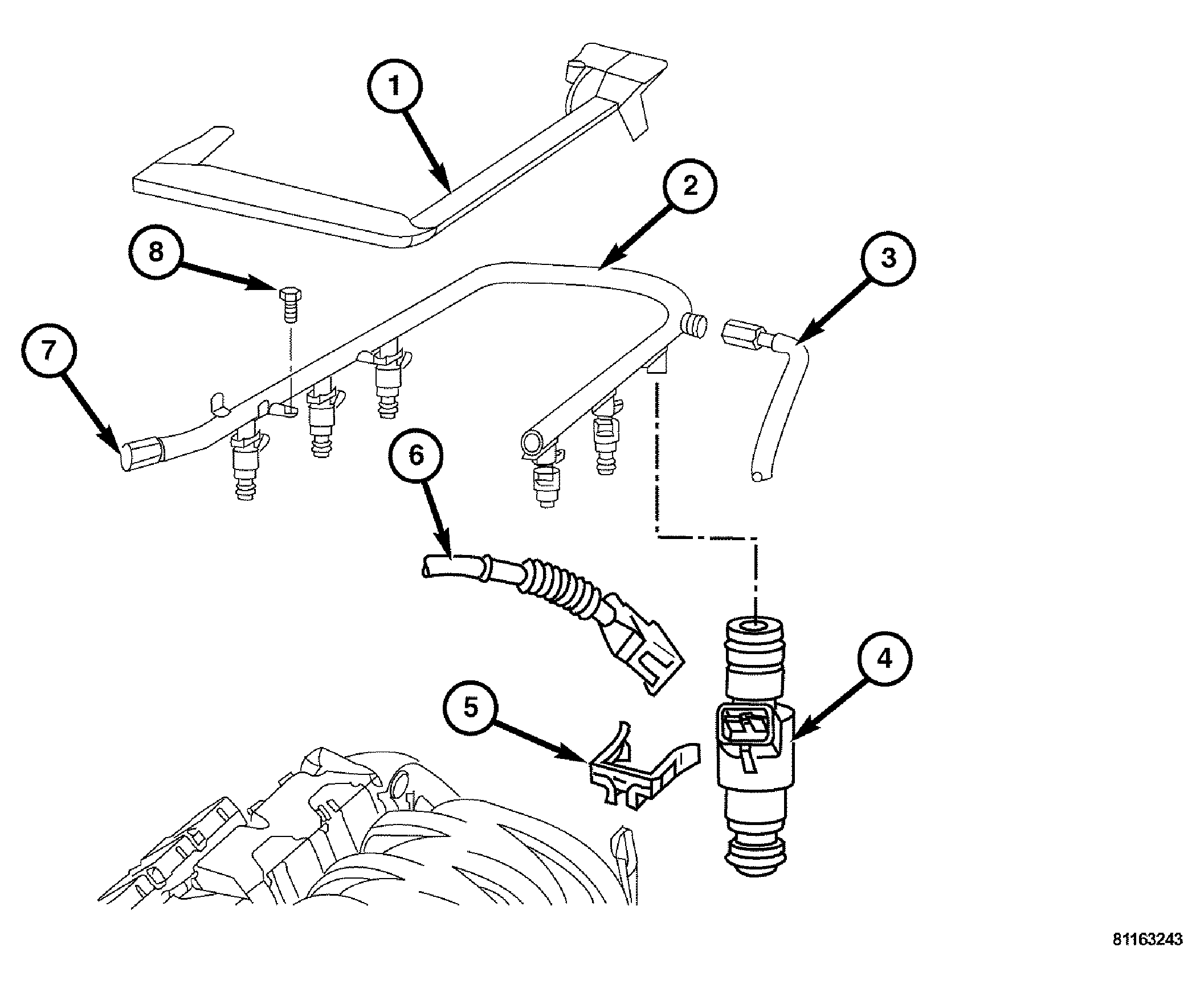

| 1 - WIRING HARNESS COVER |
| 2 - FUEL RAIL |
| 3 - FUEL LINE |
| 4 - FUEL INJECTOR |
| 5 - FUEL INJECTOR RETAINING CLIP |
| 6 - FUEL INJECTOR HARNESS CONNECTOR |
| 7 - FUEL RAIL SERVICE VALVE |
| 8 - FUEL RAIL BOLT |
- Install the fuel injectors (4) to the fuel rail (2) by gently pushing the fuel injector into the fuel rail (2). Install the retaining clips.
- Install the fuel rail (2) with the fuel injectors (4) by moving the fuel rail (2) side to side and pushing downward towards the intake manifold.
- Install the fuel rail retaining bolts. Tighten to 9 N.m (80 in. lbs.).
- Install the fuel injector harness (6) to the fuel injectors (4) then install the fuel injector electrical connector retaining clips (5).
- Connect the fuel feed line (3). Tighten to 38 N.m (28 ft. lbs.).
- Install the wiring harness cover (1), then install the wiring harness cover retaining screw.
- Install the engine cover. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) or (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) .
- Connect the negative battery cable.
