Fuel Pump Relay: Description

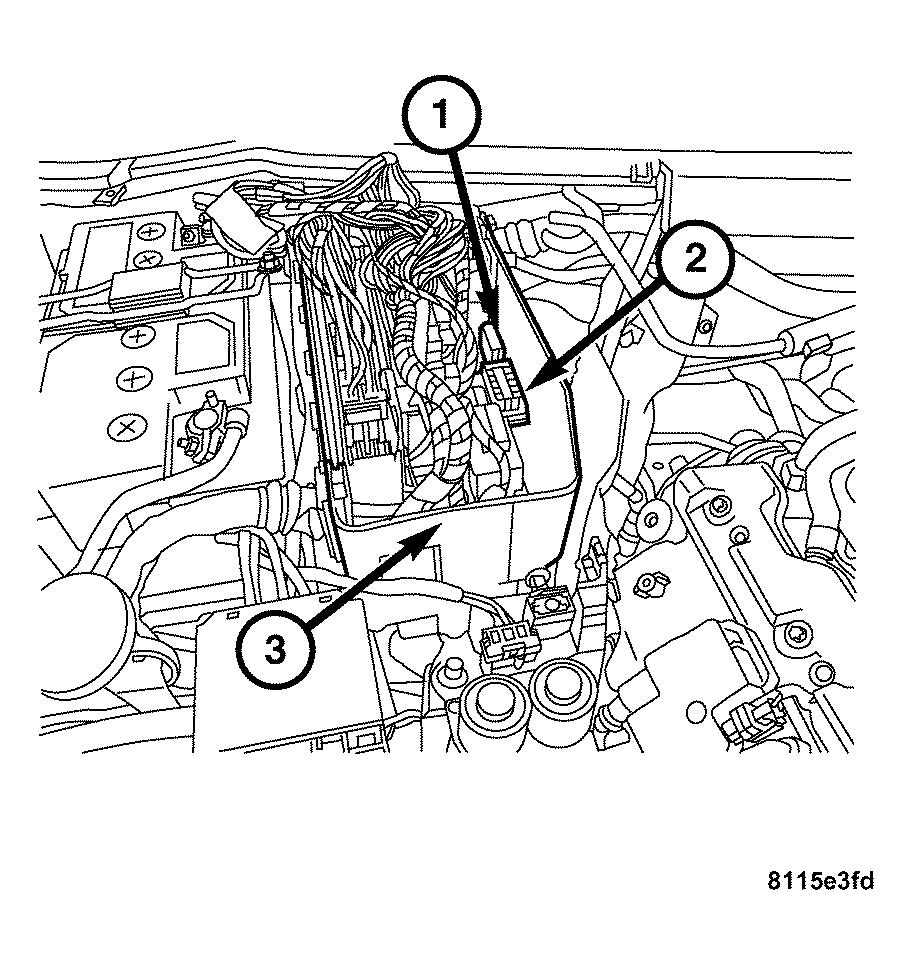

Fig 1: Identifying Relay Control Module, Control Module Box & Fuses

Courtesy of DAIMLERCHRYSLER CORP.

The Fuel Pump Relay is housed within the Relay Control Module (1) located inside the Control Module Box (3) in the engine compartment. The Relay Control Module also contains the Fuses (2) for the Fuel Pump Relay circuitry. The relays in the Relay Control Module cannot be adjusted or repaired. If faulty or damaged, the entire module unit must be replaced as an assembly.
