Manifold Air Flow (MAF) Sensor: Installation

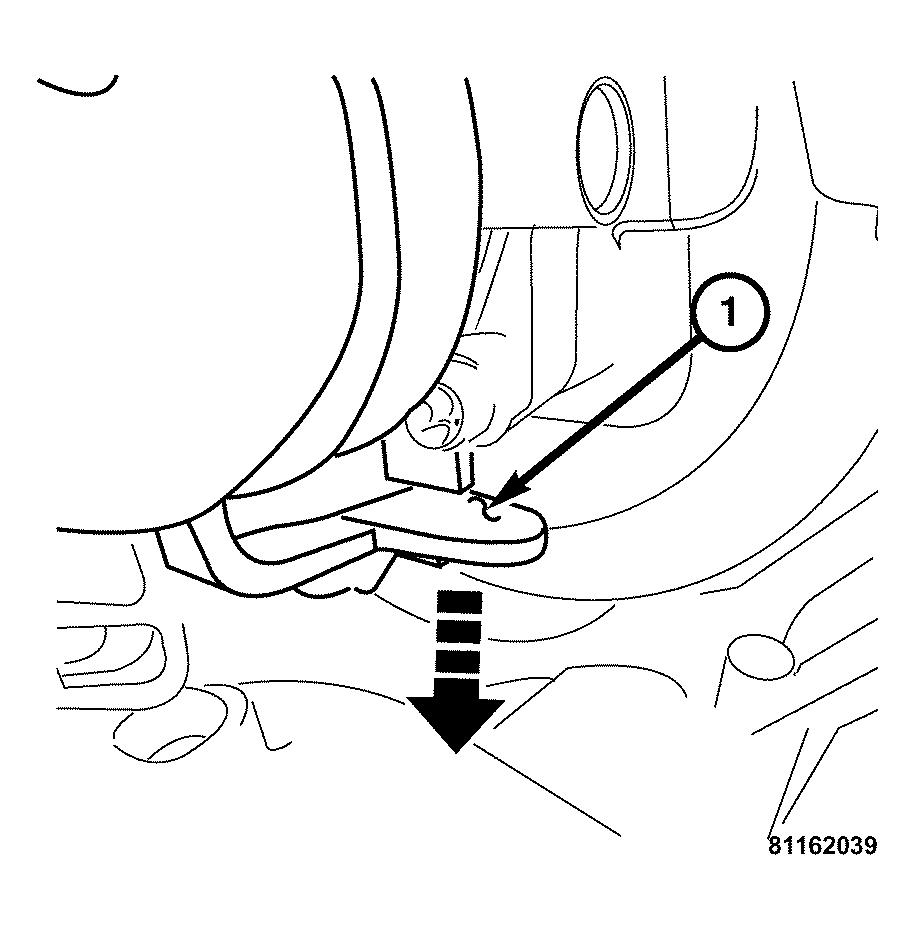

Fig 1: Identifying Locking Tab

Courtesy of DAIMLERCHRYSLER CORP.

Install the MAF onto the intake by securely pushing the MAF onto the throttle body.
Lock the lower locking tab (1) to the intake manifold. Lock the upper locking tab to the intake manifold.

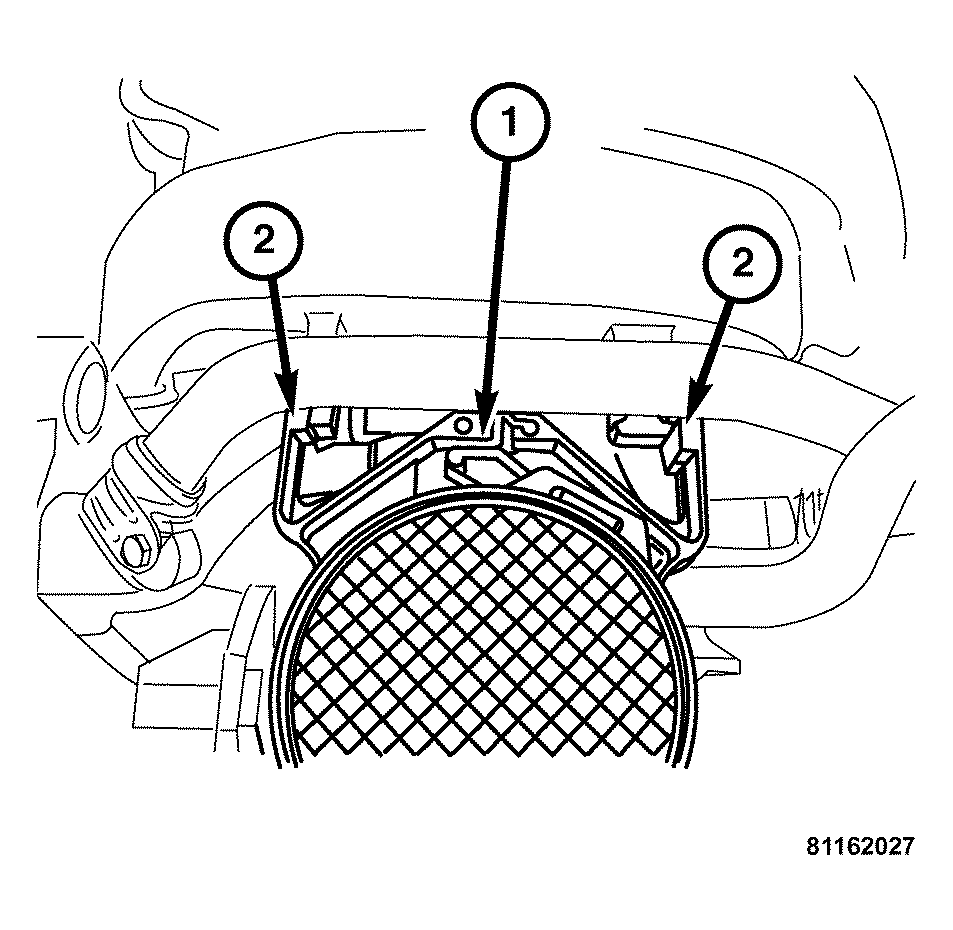

Fig 2: Identifying Locking Ring & Tabs
Courtesy of DAIMLERCHRYSLER CORP.
Push the MAF so the upper locking ring (1) and tabs (2) are inline with the tabs on the intake, then squeeze the locking ring (1) to lock the MAF onto the intake.

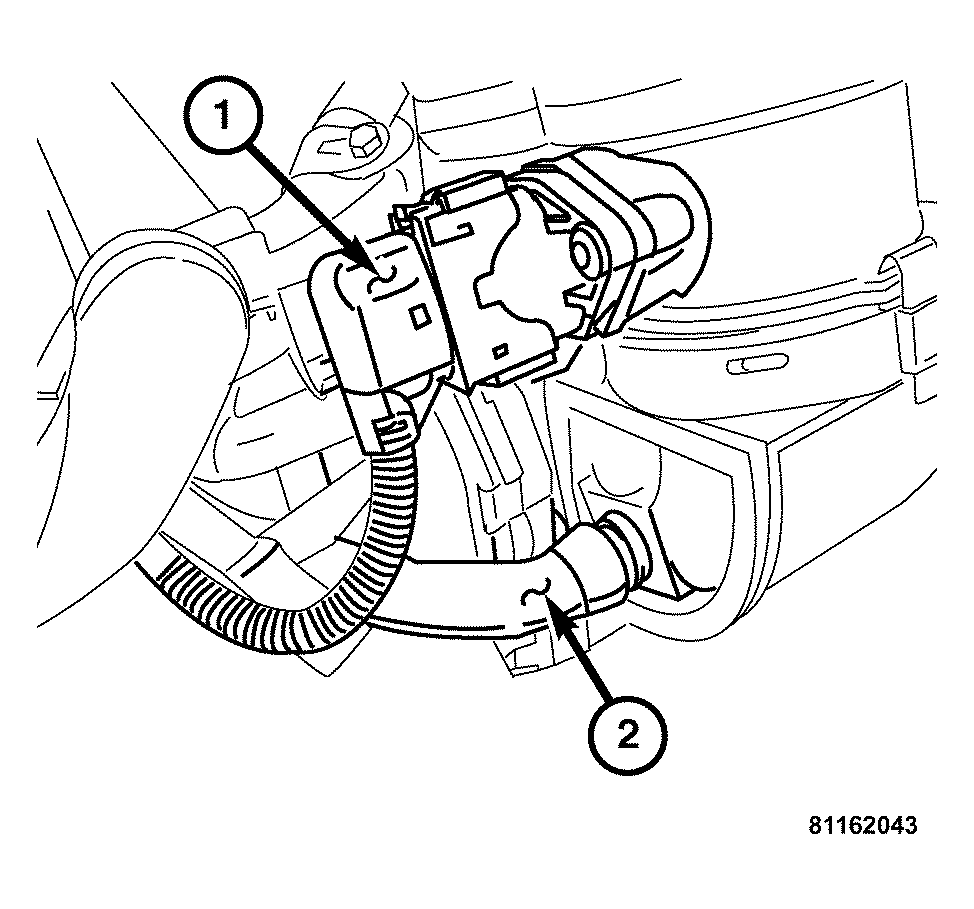

Fig 3: Identifying MAF/IAT Harness Connector & Vent Hose
Courtesy of DAIMLERCHRYSLER CORP.
Install the vent hose (2) to the MAF sensor.
Connect the MAF/IAT harness connector (1).
Install the engine cover. Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.
NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.
Connect the negative battery cable.
