Manifold Tune Valve: Installation

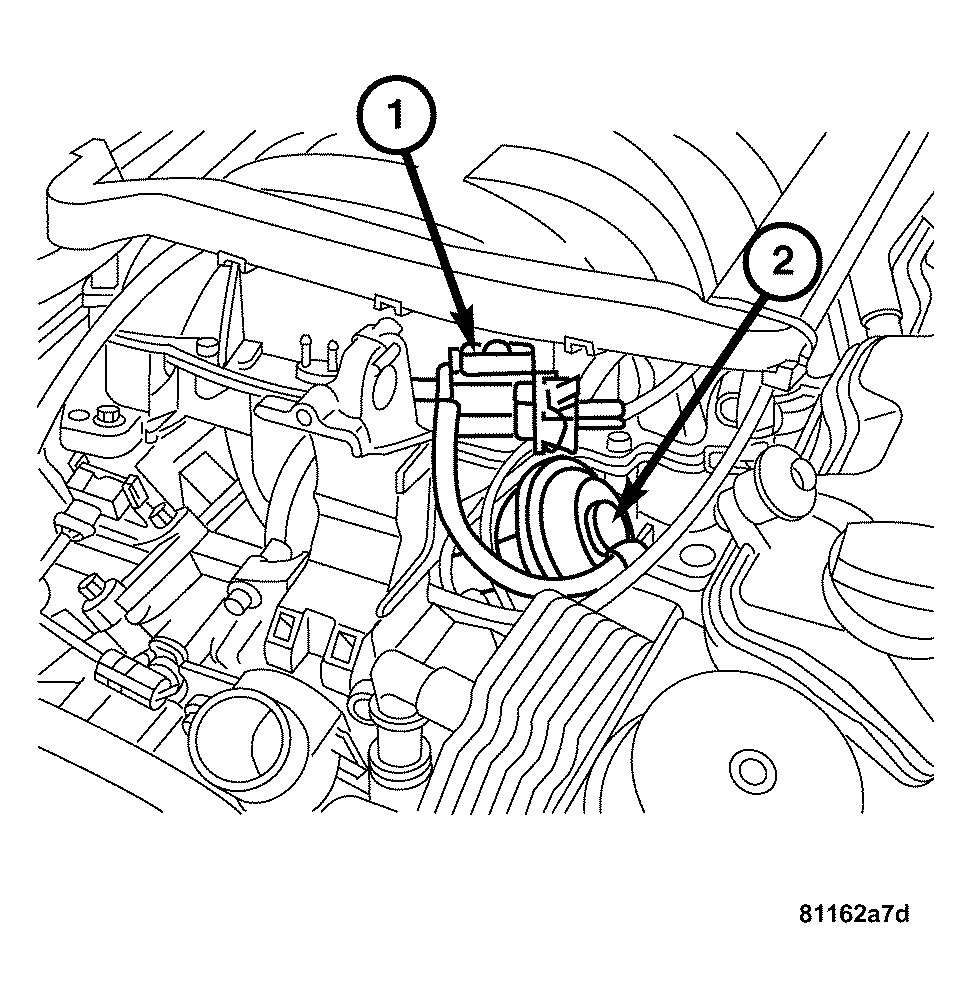

Fig 1: Identifying Solenoid & Manifold Tune Valve
GC0032351Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the intake manifold tune valve (2) to the intake manifold.
  2. Install the tune valve arm retaining nut the valve rod. Tighten the nut to 5 N.m (44 in. lbs.).
  3. Install the left hand air pump switch over valve and bolts. Tighten the bolts to 20 N.m (15 lb. ft.).
  4. Connect the vacuum line and the manifold tune valve harness connector at the manifold tune valve solenoid.
  5. Install the air injection pump. (Refer to EMISSIONS CONTROL/AIR INJECTION/PUMP - INSTALLATION) .
  6. Install the engine cover. (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) or (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER HOUSING - INSTALLATION) .
  7. Connect the negative battery cable.
