Description - SRT

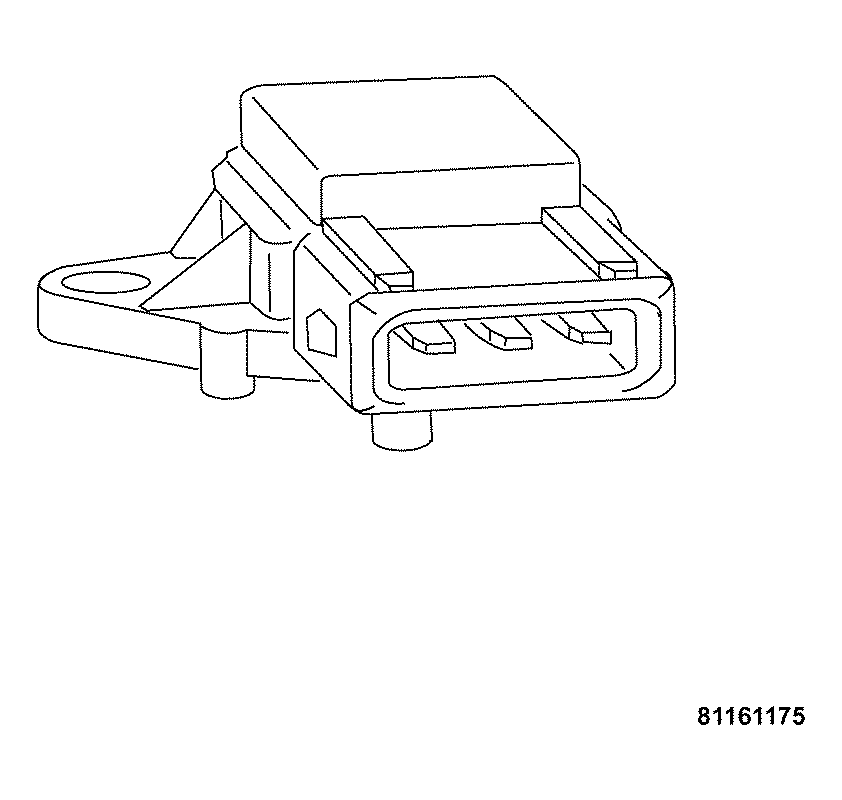

Fig 1: Identifying MAP Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The Manifold Absolute Pressure (MAP) Sensor is mounted in the Charge Air Cooler below the Throttle Body. The sensor allows the PCM to monitor air pressure within the intake manifold. The sensor is used to measure both vacuum and positive pressure (supercharger).
