Removal - Downstream O2

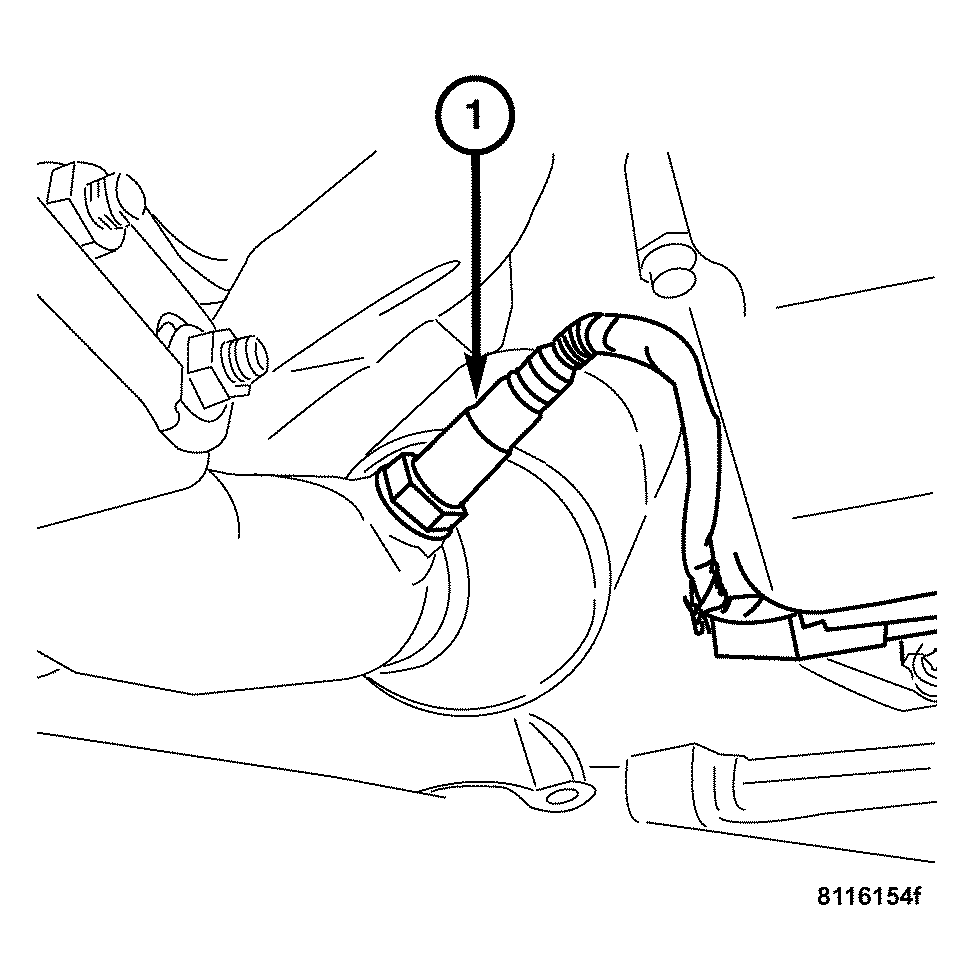

Fig 1: Removing/Installing Downstream O2 Sensor
GC0032361Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
    NOTE: The left side O2 sensor is shown. The right side is similar.
  2. Raise and support the vehicle.
  3. Disconnect the O2 sensor harness connector.
  4. Remove the O2 sensor (1).
