Throttle Body: Description

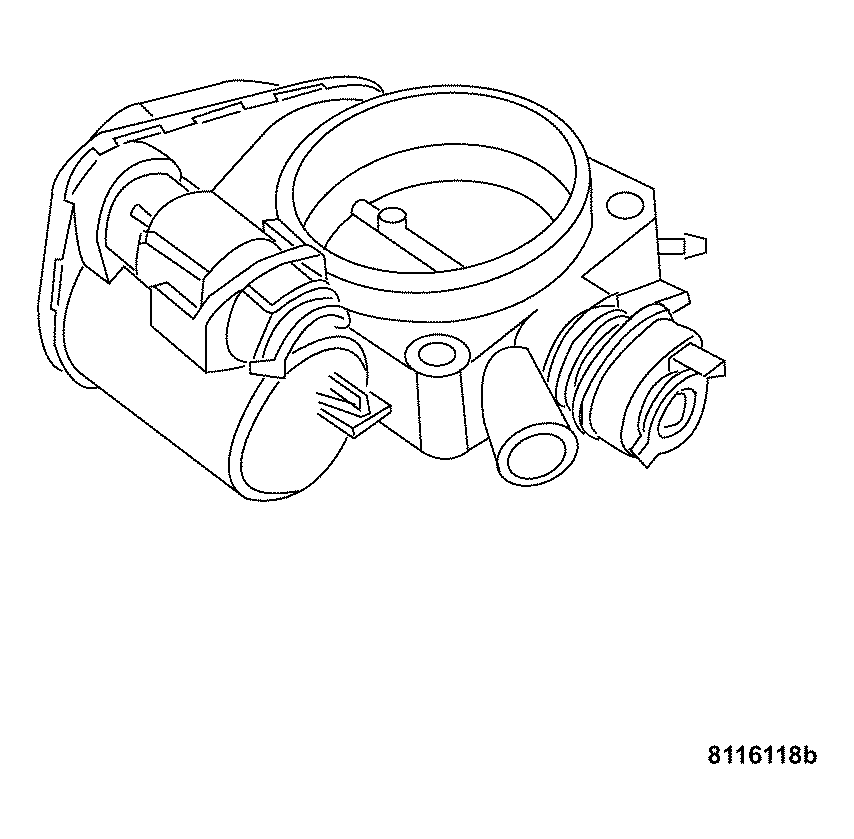

Fig 1: Identifying Throttle Body

Courtesy of DAIMLERCHRYSLER CORP.

The Throttle Body is located on the intake manifold. The Throttle Body controls the amount of air that enters the intake manifold. Fuel does not enter the intake manifold through the Throttle Body. Fuel is sprayed into the manifold by the fuel injectors.
