Throttle Body: Installation: Notes

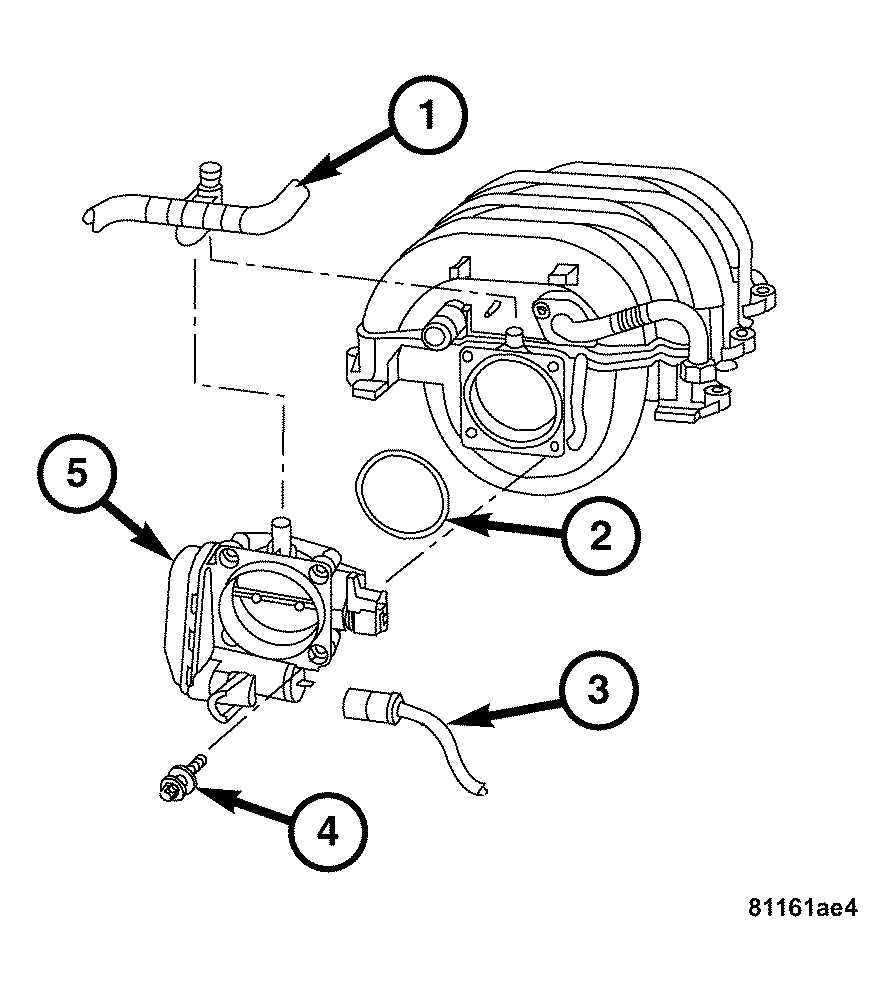

- Connect the PCV hose (1) to the throttle body (5).
- Install the throttle body (5) and gasket to engine.
- Install the PCV hose bracket and throttle body retaining bolts. Tighten to 20 N.m (15 ft. lbs.).
- Connect the throttle body harness connector (3).
- Install the throttle body inlet tube.
- Install the engine cover. Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.
- Connect the negative battery cable.
