Camshaft Position Sensor: Installation

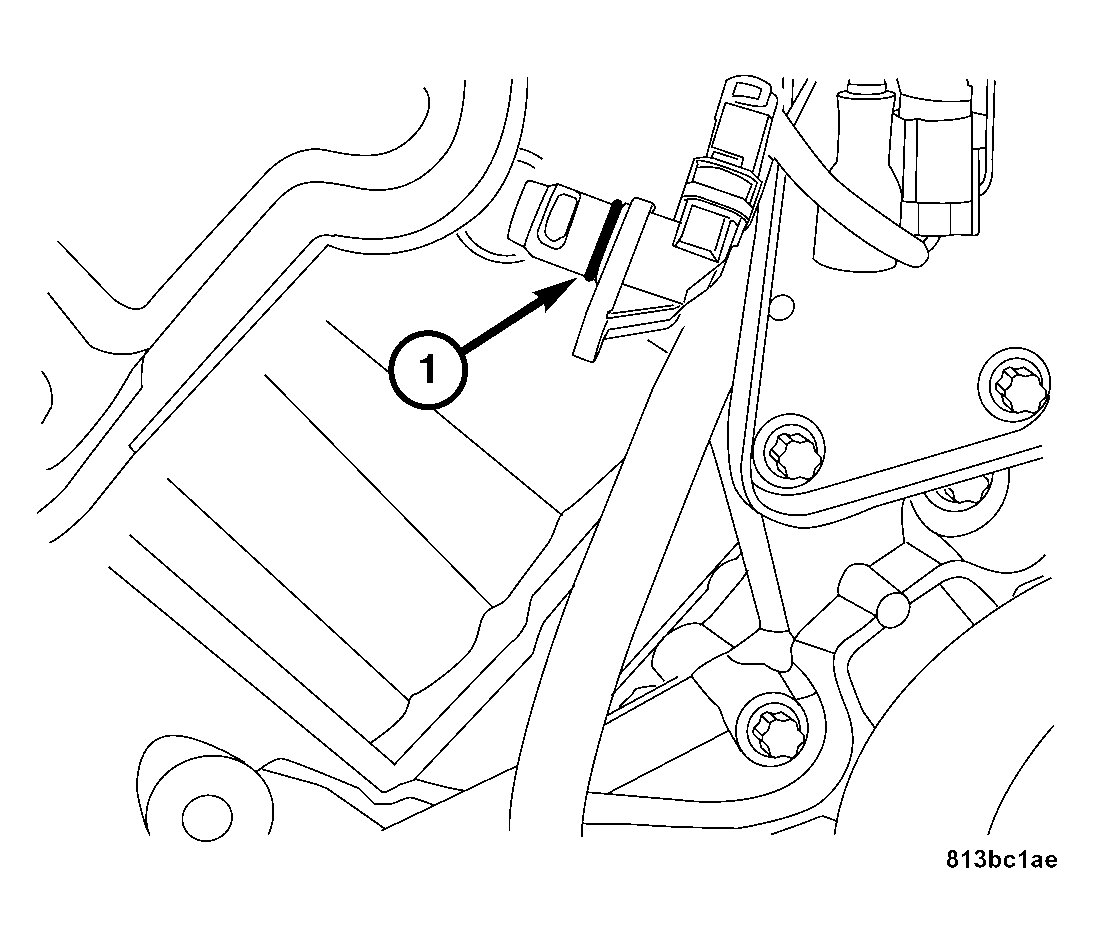

Fig 1: Inspecting Camshaft Position Sensor O-Ring For Damage

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Lubricate the camshaft position sensor O-ring with engine oil.

Inspect the camshaft position sensor O-ring (1) for damage.
Lubricate the camshaft position sensor O-ring as necessary.

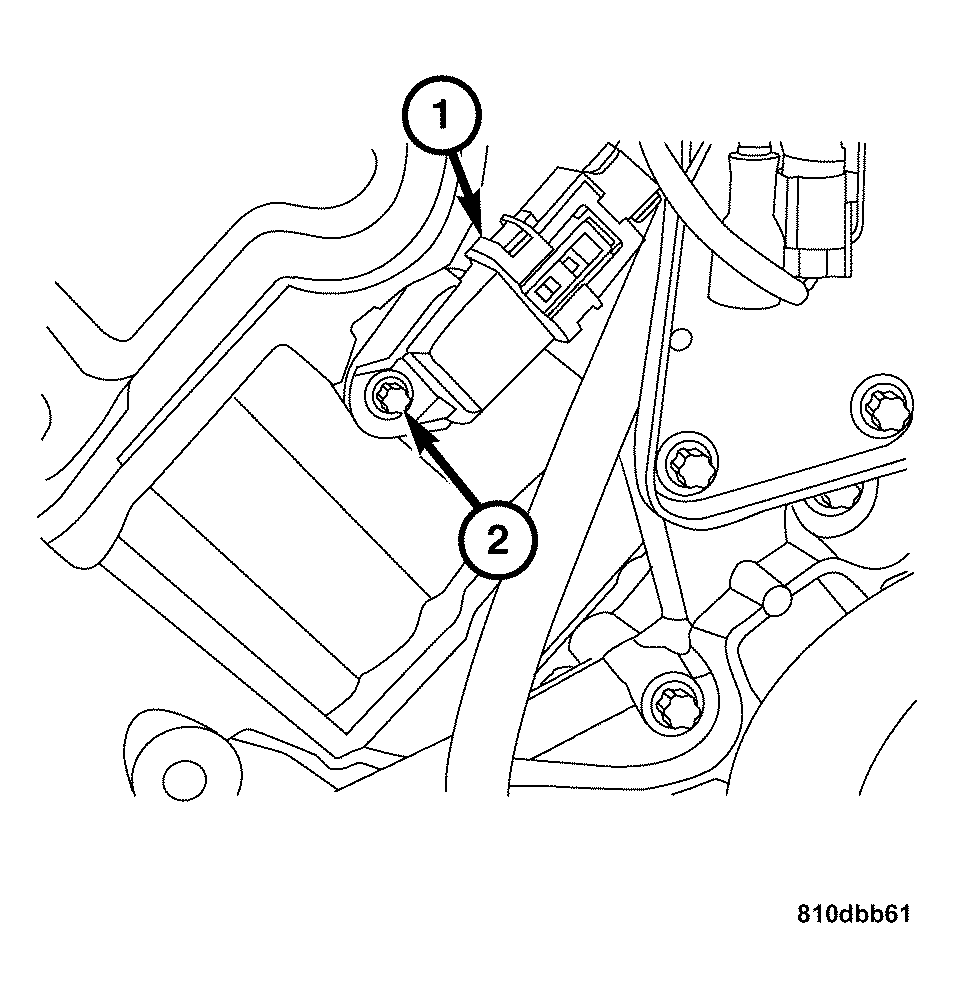

Fig 2: Connecting Camshaft Position Sensor Harness Connector And Installing Retaining Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Position the camshaft position sensor on the cylinder head.
Install the retaining bolt (2). Tighten the retaining bolt to 8 N.m (71 in. lbs.).
Connect the camshaft position sensor harness connector (1).
Connect the negative battery cable.
