Knock Sensor: Description

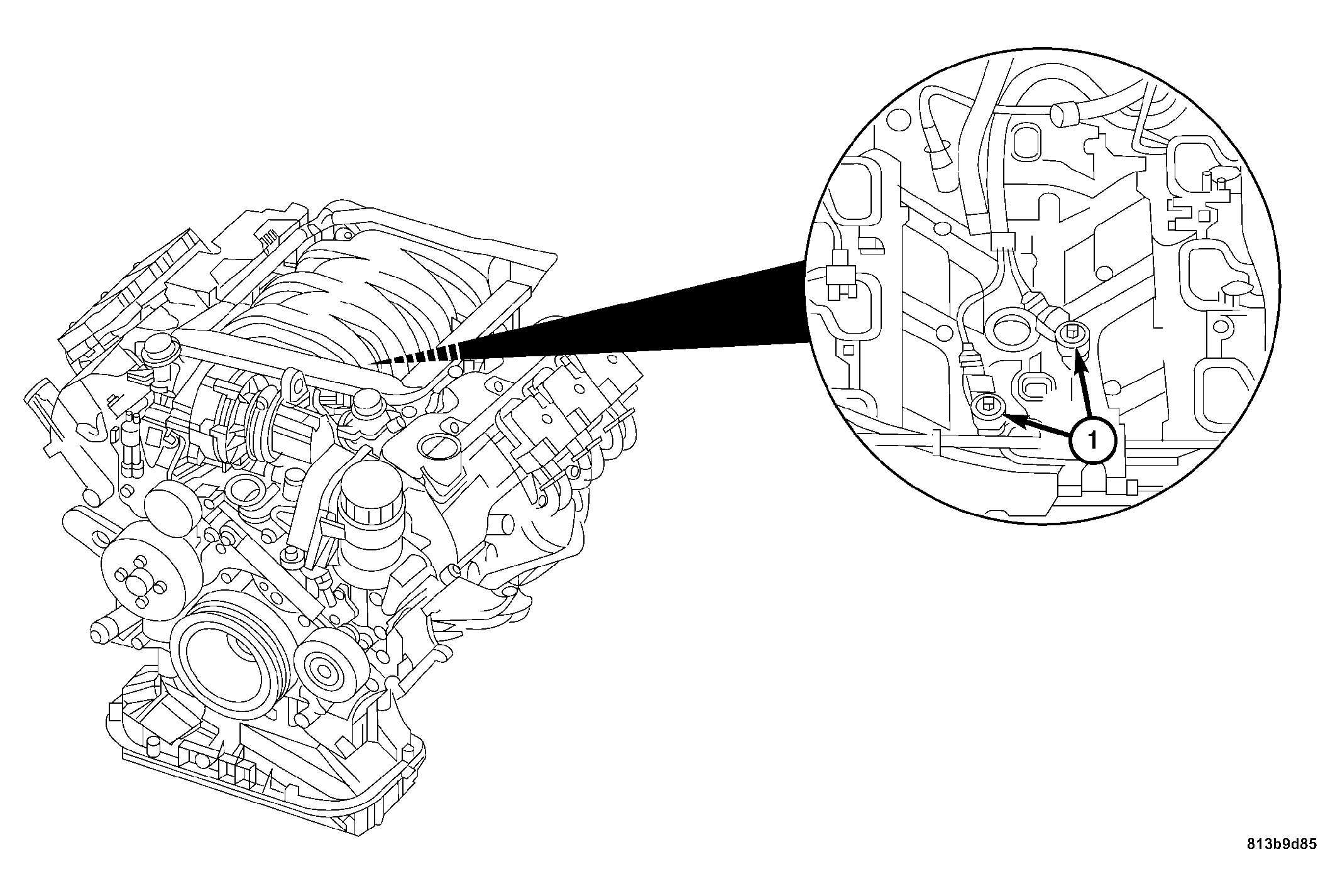

Fig 1: View Of Knock Sensor

Courtesy of DAIMLERCHRYSLER CORP.

The 3.2L engine is equipped with two knock sensors. The knock sensors bolt onto the cylinder block below the intake manifold in the engine valley. They are designed to detect engine vibration that is caused by detonation.
