Knock Sensor: Installation

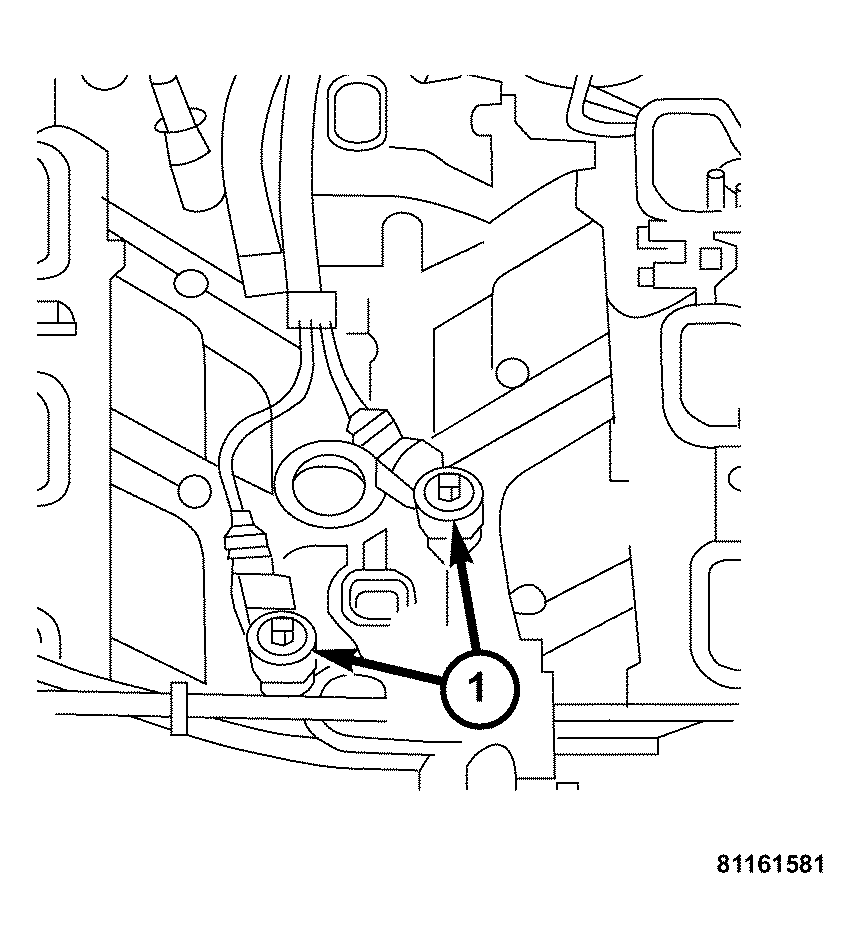

Fig 1: Disconnecting/Connecting Wire Harness Connectors At Knock Sensors

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: The knock sensor bolt torque is higher than other sensors. If the proper torque is not applied to the knock sensor, driveability can be affected.

Position the knock sensors (1) on the engine block.
Install the knock sensor retaining bolts. Tighten the bolts to 20 N.m (15 ft. lbs.).
Connect the wire harness connectors.
Install the intake manifold. (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) for 3.2L - Service Information or (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION) 3.2L SRT - Service Information .
